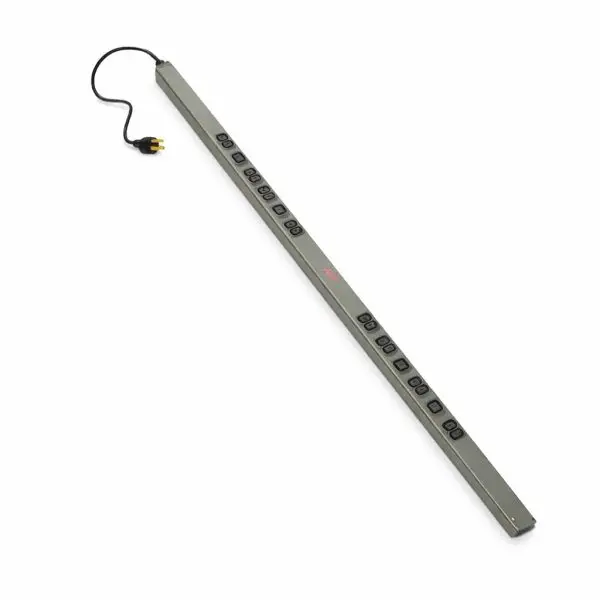

APC – AP7540 – Basic PDU – Tested

4d4f4d08-b293-4804-858b-650e98bd5f48 copy
EE
90 Day
4d4f4d08-b293-4804-858b-650e98bd5f48 copy
EE
90 Day

Manufacturer

OEM Part Number

AP7540

GPS Part Number

AP7540

Categories

Tags

, , , ,

Price:

$398.99

Specifications
View Spec Sheet
Voltage WPC AH/kVA Length Width Height Weight
120 VAC N/A 3,300 VA 63.74in 2.20in 1.73in 10.71-12.72lb
Voltage 120 VAC
WPC N/A
Amp/H 3,300 VA
Length 63.74in
Width 2.20in
Height 1.73in
Weight 10.71-12.72lb

APC NetShelter — Basic Rack PDU (AP7540)

This is the Tested Version.

SKU: PDU-APC-AP7540  |
Type: 0U vertical, Basic (non-metered) rack PDU for single-phase 200/208/230 V racks. Delivers up to 3.3 kVA distribution via mixed IEC outlets (20 × C13 & 4 × C19). 10 ft (3.05 m) line cord with NEMA L6-20P.

  • Outlet mix: 20 × IEC 60320 C13 + 4 × IEC 60320 C19 (total 24).
  • Input: 200/208/230 V single-phase, NEMA L6-20P; 10 ft (3.05 m) cord; 50/60 Hz.
  • Current & capacity: Input limit 20 A; line-rated 16 A; 3,300 VA total.
  • Zero-U vertical: Preserves rack U-space; includes toolless mounting kit and brackets.
  • Data-center ready: UL & cUL listed; operating 32–113 °F (0–45 °C), 5–95% RH.

Technical Specifications — AP7540
Parameter Detail
PDU Type Basic; Zero-U vertical (0U)
Input 200/208/230 VAC, single-phase; NEMA L6-20P; cord length 10 ft (3.05 m); 1 power cord
Current Input current limit 20 A; line-rated current 16 A
Output Voltage 208 V nominal
Outlets 20 × IEC 60320 C13  |  4 × IEC 60320 C19 (total 24)
Load Capacity 3,300 VA
Frequency 50/60 Hz
Dimensions (H×W×D) 63.74 × 2.20 × 1.73 in (161.9 × 5.6 × 4.4 cm)
Net / Ship Weight 10.71 lb (4.86 kg)  |  ~12.72 lb (5.77 kg) packaged
Included Hardware Toolless mounting kit; rack mounting brackets; installation guide
Certifications / Standards UL Listed; cUL Listed  |  UL 60950-1; CSA C22.2 No. 60950-1-03
Environment Operating: 32–113 °F (0–45 °C), 5–95% RH; Altitude 0–10,000 ft  |  Storage: −13–149 °F (−25–65 °C), 5–95% RH
Warranty (mfr.) 2-year repair or replace

Notes & Replacement

AP7540 is a current, non-metered Zero-U PDU with mixed IEC outlets. If you require metering or remote monitoring, consider the NetShelter Metered model AP8841 (0U, 30 A, 200/208 V). For higher-amp Basic at 230 V, see AP7553 (32 A). For 16 A @ 230 V with an IEC C20 inlet, see AP7552.

Product Options — Tested vs. Refurbished PDUs
Option Description Warranty
Tested Operationally verified PDU. All IEC outlets checked under load; cord/plug inspected; continuity and ground confirmed. 90‑Day
Refurbished Cleaned and serviced PDU; cosmetic touch-ups as needed; outlets and breakers re-verified after service. 1‑Year

    • Use case: Straightforward 200/208/230 V distribution with mixed C13/C19 outlets, no network features.
    • Space: Zero-U mounting preserves 19″ rack units for gear.
    • Install tip: Balance C13/C19 loads across vertical runs; observe 16 A continuous derate.

Compatibility & Variants Matrix
Model Input / Plug Outlets Rating / Notes
AP7540 200/208/230 V 1φ / NEMA L6-20P; 10 ft cord 20 × C13; 4 × C19 Zero-U Basic; 20 A max (16 A line-rated); 3.3 kVA.
AP7552 230 V 1φ / IEC C20 inlet 20 × C13; 4 × C19 Zero-U Basic; 16 A; 24 outlets; 10 ft cord from upstream IEC C20.
AP7553 230 V 1φ / IEC 60309 32 A 2P+E 20 × C13; 4 × C19 Zero-U Basic; 32 A (≈7.4 kVA) for higher-density racks.



Why buy from Gruber
  • Professionally tested — All outlets verified under load; earth/continuity checks documented.
  • Exact fit hardware — Ships with the correct Zero-U mounting kit and brackets.
  • Fleet-ready — Mixed C13/C19 supports servers, blades, and network gear from one PDU.
