$4,591.48
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 480/208/120 | N/A | 40Â kVA | 81.0 | 24.0 | 36.0 | ~1276 |
| Voltage | 480/208/120 |
| WPC | N/A |
| Amp/H | 40Â kVA |
| Length | 81.0 |
| Width | 24.0 |
| Height | 36.0 |
| Weight | ~1276 |

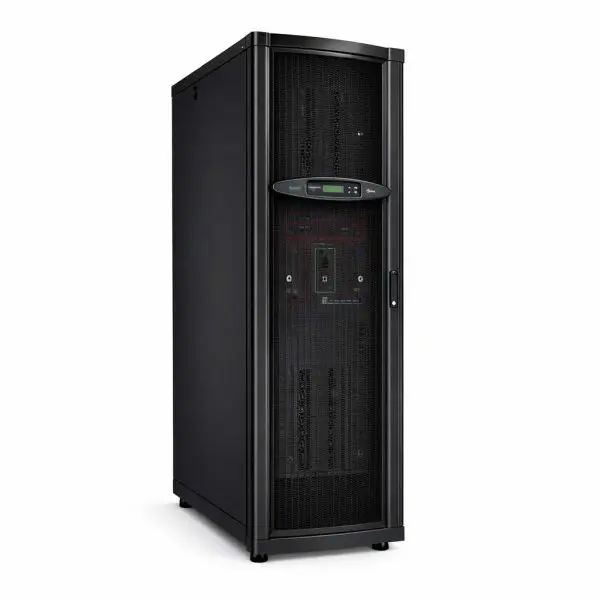

Connect a compatible APC Symmetra PX 40 kW system to facility power with the PD40G6FK1-M Bypass PDU Cabinet. This floor-standing cabinet combines voltage transformation, a three-breaker maintenance bypass, and dual 42-pole panelboards in one distribution assembly.
The cabinet accepts 480 V three-phase input and provides 120/208 V three-phase output. Its maintenance bypass arrangement provides a power path around the UPS during service when the system is correctly configured and operated according to the manufacturer’s procedures.
Gruber SKU: PDU-APC-PD40G6FK1-M
| Category | Details |
|---|---|
| Cabinet Type | Floor-standing bypass and power distribution cabinet with integrated transformer and panelboard distribution. |
| Compatible UPS | Compatible APC Symmetra PX 40 kW, 208 V systems. Confirm the exact UPS model and electrical arrangement before ordering. |
| Frame Rating | 40 kVA. Confirm usable system capacity against the complete UPS and distribution configuration. |
| Input | 480 VAC, three-phase; listed frequency: 60 Hz ±3 Hz. Hardwired input; listed maximum input current: 67 A. |
| Output | 120/208 VAC, three-phase. Listed maximum total output current: 139 A. Confirm current limits and their application in the equipment documentation. |
| Maintenance Bypass | Integrated three-breaker maintenance bypass arrangement. Transfer and isolation procedures must follow the documentation for the complete system. |
| Distribution | Two 42-pole panelboards. Installed branch breakers, available circuit positions, and cable-entry arrangements depend on the supplied cabinet. |
| Dimensions & Weight | Approximately 24.0 W × 36.0 D × 81.0 H inches (610 × 914 × 2,057 mm). Listed net weight: approximately 1,276 lb (approximately 579 kg). Confirm shipping dimensions and weight before delivery. |
| Operating Environment | Listed operating temperature: 32–104°F (0–40°C); relative humidity: 0–95%, subject to manufacturer conditions. Listed operating elevation: up to 10,000 ft. Confirm storage limits and any altitude restrictions in the equipment documentation. |
| Approvals & Finish | Listed approvals: cUL Listed / UL 60950; verify the supplied cabinet’s certification label. Black cabinet finish. |
| Product Condition & Warranty | Tested cabinet with a 90-day Gruber Power Services warranty. Refurbished options carry a separate condition description and warranty. |
| Condition | Included Work | Warranty |
|---|---|---|
| Tested — This Listing | Input/output verification; breaker and maintenance bypass functional testing; panelboard continuity; applicable indicator and safety-interlock checks. | 90 days |
| Refurbished — Separate Option | Cabinet cleaning and service, cosmetic touch-ups, bypass and distribution retesting, and documented torque and insulation checks. | 1 year |
| Model | Input / Output | Configuration |
|---|---|---|
| PD40G6FK1-M | 480 V / 120/208 V, three-phase | This listing; integrated bypass and dual 42-pole panelboards. |
| PD40F6FK1-M | 208 V / 208 V, three-phase | Related transformerless bypass/distribution configuration; confirm exact compatibility. |
| PD40L6FK1-M | 600 V / 120/208 V, three-phase | Related transformer-equipped bypass/distribution configuration; confirm exact compatibility. |
| PDRPPNX10-M | 208 V / 208 V, three-phase | Related distribution equipment; confirm bypass features and suitability for the complete system. |
Get a professionally tested bypass PDU cabinet backed by configuration assistance and a 90-day warranty. Refurbished cabinet options are also available with a 1-year warranty.
Contact Gruber Power Services for current availability, pricing, and help matching the cabinet to your Symmetra PX installation.
