$18,442.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/120 | N/A | 60 KVA | 36" | 29.02" | 80.98" | 1,631 lb |
| Voltage | 208/120 |
| WPC | N/A |
| Amp/H | 60 KVA |
| Length | 36" |
| Width | 29.02" |
| Height | 80.98" |
| Weight | 1,631 lb |

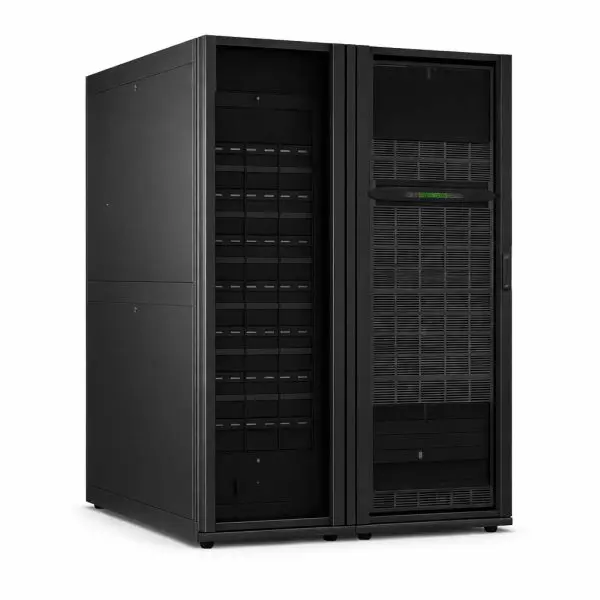

Simplify critical power distribution with the APC InfraStruXure PD80G6FK1-M-100K. The listed assembly combines 480 V to 208Y/120 V isolation transformation, a maintenance bypass panel, and a distribution cabinet with modular Power Distribution Modules (PDMs) for compatible data center and IT installations.
Each refurbished assembly from Gruber Power Services is reconditioned, cosmetically restored, and tested in the USA. Our team helps match the PDM selection, output connections, monitoring equipment, and available accessories to your facility’s electrical requirements.
| Category | Details |
|---|---|
| Power & Architecture | Listed 80 kW distribution configuration with isolation transformer, maintenance bypass, and modular PDM distribution. Confirm transformer kVA rating and complete assembly capacity on the supplied equipment documentation. |
| Input | 480 VAC, three-phase; 60 Hz nominal. Confirm input current, connections, grounding, and upstream protective-device requirements for the supplied assembly. |
| Output | 208Y/120 VAC, three-phase, providing 208 V line-to-line and 120 V line-to-neutral distribution. Available output circuits depend on the installed PDMs and distribution hardware. |
| Isolation Transformer | Transformer for 480 V to 208Y/120 V conversion in the listed configuration. Confirm nameplate rating, tap settings, secondary wiring, and grounding requirements. |
| Maintenance Bypass | Maintenance bypass panel provides a power path around a compatible UPS during service. Transfer and isolation procedures depend on the complete system configuration and manufacturer’s instructions. |
| Modular Distribution | Distribution cabinet with compatible Power Distribution Modules. Module quantity, breaker ratings, connector types, and cable lengths will be specified in the quotation. |
| Monitoring & Alarms | Local display and compatible remote-monitoring options, depending on installed hardware. Confirm included monitoring equipment and supported functions. |
| Fault Ratings & Protection | Confirm short-circuit ratings, required protective devices, and the meaning of the “-100K” designation from the supplied unit’s nameplate and documentation. Coordinate equipment ratings with the site’s available fault current. |
| Dimensions & Weight | Listed PDU cabinet dimensions: approximately 29.02 W × 36.0 D × 80.98 H inches; listed cabinet weight: approximately 1,631 lb (740 kg). Confirm whether these figures cover the entire supplied assembly or only the main cabinet. Additional distribution cabinets and accessories may increase total footprint and weight. |
| Operating Environment | Listed operating temperature: 32–104°F (0–40°C); relative humidity: 0–95%, non-condensing. Supplied family-level operating altitude limit: approximately 3,333 ft. Confirm unit-specific environmental limits and ventilation requirements. |
| Approvals & Finish | Black cabinet finish. Confirm applicable UL / cUL markings on each supplied cabinet’s certification label. |
| Condition & Warranty | Professionally refurbished, with a 1-year full replacement warranty from Gruber Power Services. |
| Option | Details |
|---|---|
| Power Distribution Modules | Compatible PDMs selected for circuit rating, connector type, cable length, and cabinet compatibility. Confirm exact part numbers and included quantities before ordering. |
| Cable Extension Accessories | Compatible cable extension hardware for supported distribution circuits. Confirm connector compatibility, conductor rating, and required length. |
| Branch-Circuit Equipment | Compatible receptacle assemblies and hardwired sub-feed options, where supported by the supplied distribution equipment. |
| Monitoring & Documentation | Contact Gruber for compatible monitoring options, panel schedules, circuit identification, labeling, and available coordination-study support. |
| Startup & Commissioning | Contact Gruber Power Services for available startup, commissioning, and project-support services. |
Get a professionally refurbished power distribution assembly backed by our electronics engineering lab, configuration assistance, and 1-year full replacement warranty.
Contact Gruber Power Services for current availability, pricing, and a configuration matched to your facility.
