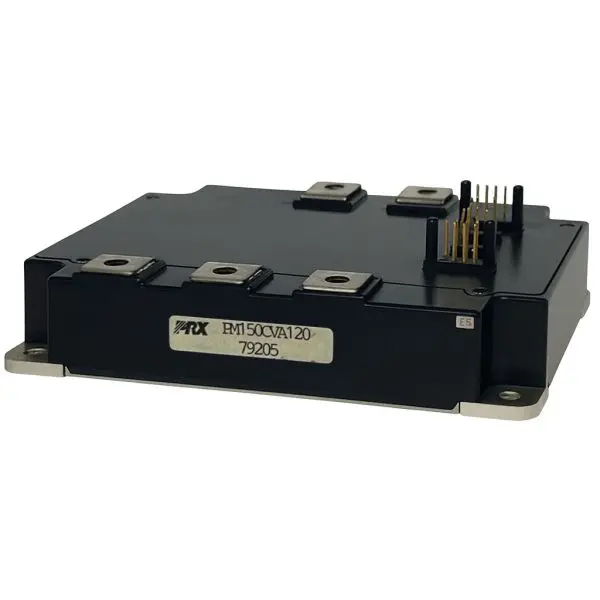

Powerex / Mitsubishi PM150CVA120 1200V 150A Intelligent Power Module (IPM) – 3-Phase Inverter

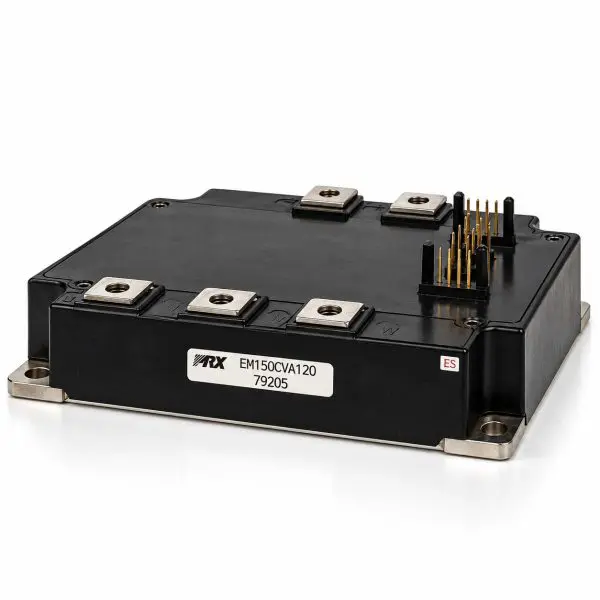

ChatGPT Image Sep 28, 2026, 11_22_29 AM copy
EE
ChatGPT Image Sep 28, 2026, 11_22_29 AM copy
EE

Manufacturer

OEM Part Number

PM150CVA120

GPS Part Number

27-PRX-PM150CVA120

Categories

Tags

Price:

$40.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1200 V N/A 150 A N/A N/A N/A 1 kg
Voltage 1200 V
WPC N/A
Amp/H 150 A
Length N/A
Width N/A
Height N/A
Weight 1 kg
Powerex / Mitsubishi — PM150CVA120 Intelligent Power Module
1200 V • 150 A • Three-phase inverter (6 IGBTs + antiparallel FWDs) with integrated gate drive & protection • Isolated baseplate
What it is

The PM150CVA120 is a 1200 V, 150 A V-Series Intelligent Power Module (IPM) combining a complete three-phase IGBT inverter bridge, fast free-wheel diodes, integrated gate-drive circuitry, and built-in protection functions in a single insulated power module. Short-circuit/over-current, over-temperature, and under-voltage protection help safeguard the power stage, while the isolated baseplate simplifies heatsink integration in UPS systems, servo drives, industrial inverters, and other high-power conversion equipment.

At-a-Glance
  • Voltage / Current: 1200 V / 150 A continuous; 300 A peak
  • Topology: Complete three-phase inverter bridge with six IGBTs and antiparallel free-wheel diodes
  • Integrated Electronics: Gate-drive circuitry plus SC/OC, OT, and UV protection
  • Mounting: Screw-mount module with electrically isolated baseplate
  • Use Cases: UPS systems; three-phase inverters; servo/motion drives; industrial power conversion
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • Complete three-phase power stage — Six IGBTs and matched free-wheel diodes provide a complete inverter bridge in one module.
  • Integrated gate drive — Internal drive circuitry reduces external component count and simplifies control-interface design.
  • Built-in protection — Short-circuit/over-current, over-temperature, and control-supply under-voltage protection are incorporated into the IPM.
  • High-voltage capability — 1200 V device class supports high-voltage DC-link applications with recommended bus operation up to 800 V.
  • High-current switching — 150 A continuous collector-current rating with 300 A peak capability.
  • Robust isolation — 2.5 kVRMS terminal-to-baseplate isolation simplifies heatsink and chassis integration.
  • Thermally efficient construction — Low junction-to-case and case-to-fin thermal resistance supports sustained industrial operation.
  • PWM operation — Suitable for inverter operation up to approximately 20 kHz when operated within the specified drive and dead-time requirements.
Technical Specifications
Parameter Value
Manufacturer Powerex / Mitsubishi Electric
Part Number PM150CVA120
Device Type Intelligent Power Module (IPM) — three-phase inverter
Power Configuration Six IGBTs + six antiparallel free-wheel diodes
Collector-Emitter Voltage (VCES) 1200 V
Collector Current (IC) 150 A continuous @ TC=25 °C
Peak Collector Current 300 A
Collector Dissipation (PC) 780 W @ TC=25 °C
Recommended DC Bus (VCC) ≤ 800 V; surge capability up to 1000 V
Control Supply (VD) 15 V ± 1.5 V per phase drive supply
Logic Input — ON VCIN(on) ≤ 0.8 V
Logic Input — OFF VCIN(off) ≥ 4.0 V
Minimum Dead Time tdead ≥ 3.0 µs
PWM Frequency Up to approximately 20 kHz within specified operating conditions
Protection Functions Short-circuit / over-current, over-temperature, under-voltage
Gate Drive Integrated
IGBT Thermal Resistance RthJC ≈ 0.16 °C/W
Diode Thermal Resistance RthJC ≈ 0.26 °C/W
Case-to-Fin Thermal Resistance RthCF ≈ 0.018 °C/W
Isolation Voltage 2.5 kVRMS / 1 min, terminals-to-baseplate
Junction Temperature Tj −20 to +150 °C
Case Temperature TC −20 to +100 °C
Storage Temperature Tstg −40 to +125 °C
Dimensions Approx. 135 × 110 × 29 mm
Mounting Span Approx. 120.5 mm
Module Mass Approx. 1000 g
Hardware / Torque M5 terminals & mounting: 2.5–3.5 N·m
Configuration Six-pack three-phase Intelligent Power Module
Compatibility / Representative Uses
Module Applications Notes
PM150CVA120 UPS systems; three-phase inverters; servo/motion drives; industrial power supplies; high-power conversion equipment Use the specified 15 V control supply, maintain ≥3.0 µs dead time, and verify control pinout and mounting footprint before replacement.
Why buy from Gruber
  • Tested pulls & new stock — Basic power-stage continuity, isolation, fault output, and under-voltage protection functions checked as applicable.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match the exact IPM variant, control interface, mounting hardware, and thermal requirements to your equipment.
