Manufacturer
OEM Part Number
GPS Part Number
Categories
$159.00
Voltage | AH/kVA | Length | Width | Height | Weight |
---|---|---|---|---|---|
600 V AC | 200 A | N/A | N/A | N/A | N/A |
Voltage | 600 V AC |
Amp/H | 200 A |
Length | N/A |
Width | N/A |
Height | N/A |
Weight | N/A |

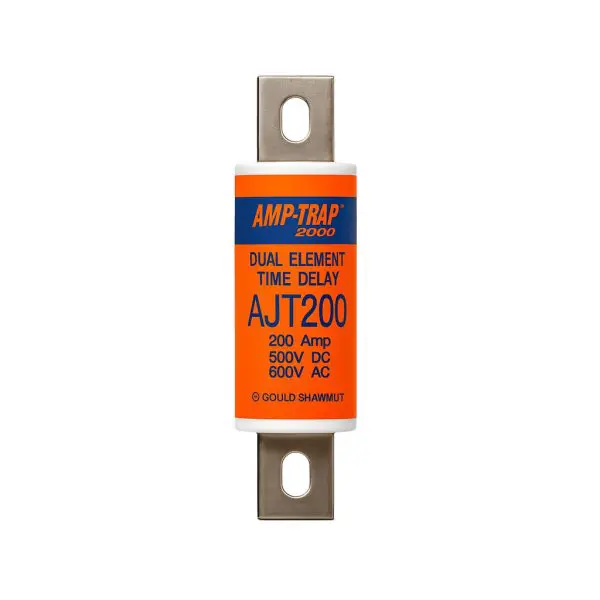

The GOULD SHAWMUT AJT200 (Mersen/Ferraz Shawmut) is an Amp-Trap 2000ยฎ Class J time-delay, current-limiting fuse for protecting rectifiers, inverters, feeders, and motor/transformer loads in UPS and power-electronic systems. This listing features reclaimed, continuity-tested units removed from decommissioned, fully functional equipment.
Time-Delay, Current-Limiting:
Handles inrush and short-duration overloads while providing low let-through energy (Class J).
Compact Class J Footprint:
Smaller than RK fuses for tight panels; knife-blade ends fit standard Class J holders/blocks.
High Interrupt Ratings:
600 V AC with 200 kA AC interrupt rating and 300 V DC with 100 kA DC capability.
Reclaimed & Verified:
Each unit is continuity-tested and visually inspected; new Mersen stock available by request.
Parameter | Value |
Manufacturer | Gould Shawmut (Mersen / Ferraz Shawmut) |
Part Number | AJT200 |
Fuse Type / Category | UL Class J, time-delay (Amp-Trap 2000ยฎ), non-indicating |
Rated Voltage | 600 V AC / 300 V DC |
Rated Current | 200 A |
Interrupting Capacity | 200 kA (AC @ 600 V) | 100 kA (DC @ 300 V) |
Indicator | None (indicator variants carry โEIโ suffix, e.g., AJT200EI) |
Body / Size | Class J cartridge, knife-blade ends |
Terminals / Mounting | Knife-blade; holder/clip mounted in Class J blocks |
Pre-arcing Iยฒt | Per AJT series table (200 A) |
Clearing Iยฒt | Per AJT series table @ 60 Hz |
Power Loss (at rated) | See datasheet |
Dimensions | Standard Class J outline (refer to AJT datasheet drawing for exact size) |
Approx. Weight | โ |
Compliance / Approvals | UL 248-8 Listed; CSA; RoHS |
UPC / EAN | โ |
Fuse | Compatible UPS/Power-Electronics Models | Notes |
AJT200 | UPS frames, feeders, and converter stacks specifying 600 VAC/300 VDC Class J time-delay fuses in the 200 A range. | Verify Class J holder compatibility and any indicator requirements (EI suffix) against the OEM BOM. |
