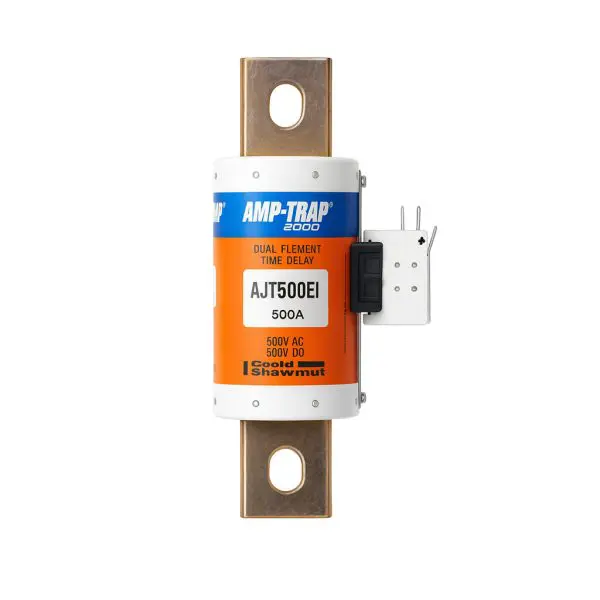

The Ferraz Shawmut AJT500EI is a 500-amp Amp-Trap 2000® Class J time-delay fuse with an EI open-fuse indicator and microswitch mount. Its current-limiting design helps reduce fault-current let-through while its time-delay characteristics accommodate typical motor-starting and transformer-inrush currents.
This listing is for a reclaimed, continuity-tested fuse removed from decommissioned operational equipment and visually inspected before sale. For UPS and other power-system repairs, use only where the equipment manufacturer specifies the AJT500EI or an explicitly approved equivalent.
Time-Delay Operation: Accommodates normal motor and transformer inrush while providing overcurrent protection.
Current-Limiting Design: Limits peak current let-through during high-current faults.
EI Open-Fuse Indicator: Includes an indicator/microswitch mount compatible with Mersen AOS-S or AOS-Q add-on switches for remote signaling. Switches are separate accessories.
Class J Blade Construction: Designed for correctly sized Class J fuse blocks or approved bolted connections. Verify mounting dimensions and indicator clearance before installation.
Reclaimed & Inspected: Continuity-tested and visually inspected. Contact Gruber for new Mersen stock availability.
| Parameter | Value |
| Manufacturer / Brand | Ferraz Shawmut / Mersen |
| Part Number | AJT500EI |
| Product Series | Amp-Trap 2000® AJT |
| Fuse Class / Characteristic | UL Class J, time-delay, current-limiting |
| Rated Current | 500 A |
| Rated AC Voltage | 600 V AC |
| Rated DC Voltage | 400 V DC per current Mersen documentation |
| Frequency | 50/60 Hz |
| AC Interrupting Rating | 200 kA @ 600 V AC |
| DC Interrupting Rating | 100 kA @ 400 V DC |
| Indicator Configuration | EI open-fuse indicator / microswitch mount |
| Compatible Signal Switches | Mersen AOS-S or AOS-Q — ordered separately |
| Terminal Style | Blade terminals with mounting slots |
| Overall Length | 8.00 in. (203.2 mm) |
| Body Diameter | 2.50 in. (63.5 mm), excluding projecting EI indicator assembly |
| Mounting-Slot Center Spacing | 6.00 in. (152.4 mm) |
| Approvals | UL Listed; DC tested to UL Standard 248 — verify markings on supplied unit |
| UPC | 782001961626 |
| Condition | Reclaimed; continuity-tested and visually inspected |
| Application | Selection Requirements |
| UPS & Power Equipment | Use where equipment documentation specifies AJT500EI or an approved equivalent. |
| Mains, Feeders & Industrial Circuits | Confirm 500 A rating, Class J time-delay characteristic, circuit voltage and required interrupting rating. |
| Fuse Blocks & Mounting | Verify Class J mounting size, blade engagement, slot spacing and EI indicator clearance. |
| Remote Fuse Monitoring | Compatible with appropriate AOS-S or AOS-Q signaling switch. Switch is not assumed to be included. |
Important: Verify the actual fuse markings, condition, mounting dimensions and equipment requirements before installation. Do not select a replacement based on amperage alone or substitute this Class J time-delay fuse for a high-speed semiconductor fuse unless specifically approved for the application.
