$299.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 690 V | 2500 A | 202mm | 140mm | 116mm | 1.21kg |
| Voltage | 690 V |
| Amp/H | 2500 A |
| Length | 202mm |
| Width | 140mm |
| Height | 116mm |
| Weight | 1.21kg |

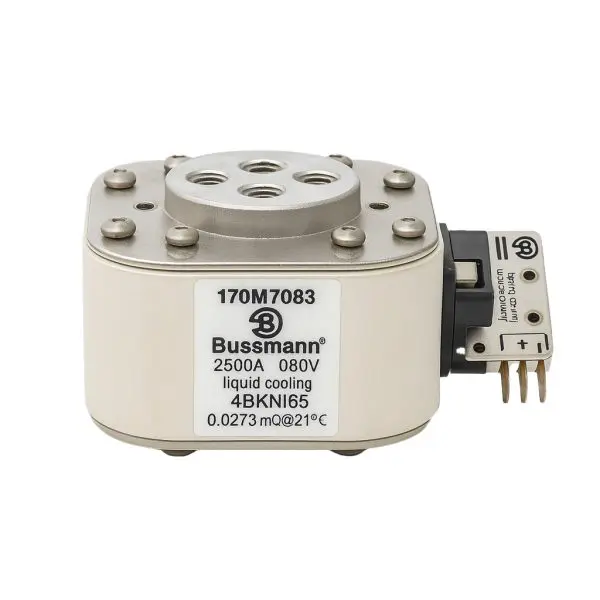

The BUSSMAN 170M7083 is a high-speed semiconductor (aR) square-body fuse engineered for reliable over-current protection in demanding UPS and power-electronic applications. Designed for critical protection of rectifiers, inverters, and common-bus rails, this fuse interrupts fault currents rapidly to safeguard semiconductors and uptime. This listing highlights reclaimed, continuity-tested units pulled from decommissioned, fully functional UPS systems.
Ultra-Rapid aR Curve:
Purpose-built for semiconductor circuits where fast, precise interruption is essential.
Size-4 Square-Body:
4BKN/65 form factor with flush-end M10 terminals on 66.6Â mm centers for drop-in replacement.
High Fault Withstand:
690 V AC rating with 200 kA interrupting capacity and center Type K indicator for clear blown-fuse status.
Cost-Effective Options:
Available as reclaimed from decommissioned, fully functional UPS units or new OEM stock; every fuse continuity-tested and verified.
| Parameter | Value |
| Manufacturer | BUSSMANN (Eaton) |
| Part Number | 170M7083 |
| Fuse Type / Category | Semiconductor Protection, aR (high-speed) |
| Rated Voltage | 690Â V AC |
| Rated Current | 2500Â A |
| Interrupting Capacity | 200Â kA |
| Indicator | Center indicator, Type K |
| Body / Size | Square-body Size 4, 4BKN/65 |
| Terminals / Mounting | Flush-end contact, M10 studs; 66.6Â mm center-to-center |
| Pre-arcing I²t @ 660 V | 1,200,000 A²s |
| Clearing I²t @ 660 V | 7,800,000 A²s |
| Power Loss (at rated) | 275Â W |
| Dimensions (L × W × H) | 202 mm × 140 mm × 116 mm |
| Approx. Weight | ≈ 1.21 kg |
| Compliance / Approvals | IEC rated, UL Recognized; CE-marked; RoHS compliant |
| UPC / EAN | UPCÂ 051712266567 Â |Â EANÂ 5996516021187 |
| Fuse | Compatible UPS Models | Notes |
| 170M7083 | Used across high-capacity UPS frames and power converters that specify Size-4 (4BKN/65) 690 V aR fuses. Representative applications include common-bus protection in large UPS systems, DC drives, and rectifier/inverter stacks. | Verify fitment: 4BKN/65 body, M10 studs, 66.6 mm centers, and Type K indicator. Always match the exact OEM part number/BOM before ordering. |
