$145.00
Voltage | AH/kVA | Length | Width | Height | Weight |
---|---|---|---|---|---|
690 V AC | 2500 A | 202mm | 140mm | 116mm | 1.21 kg |
Voltage | 690 V AC |
Amp/H | 2500 A |
Length | 202mm |
Width | 140mm |
Height | 116mm |
Weight | 1.21 kg |

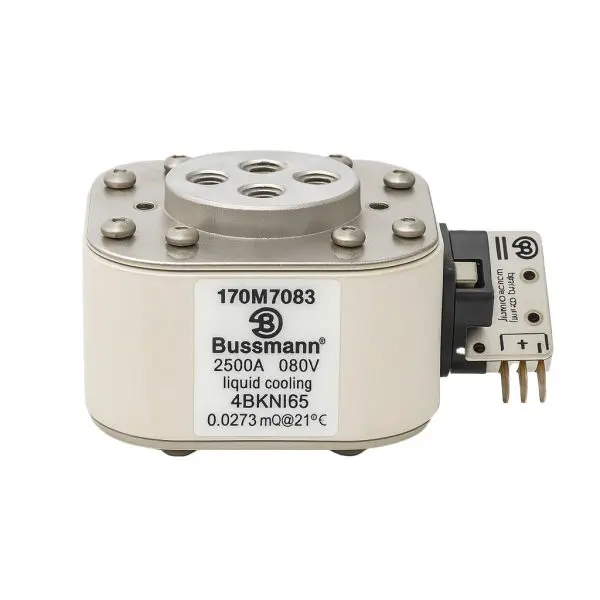

The BUSSMAN 170M7083 is a high-speed semiconductor (aR) square-body fuse engineered for reliable overcurrent protection in demanding UPS and power-electronic applications. Designed for critical protection of rectifiers, inverters, and common-bus rails, this fuse interrupts fault currents rapidly to safeguard semiconductors and uptime.
Ultra-Rapid aR Curve:
Purpose-built for semiconductor circuits where fast, precise interruption is essential.
Size-4 Square-Body:
4BKN/65 form factor with flush-end M10 terminals on 66.6ย mm centers for drop-in replacement.
High Fault Withstand:
690ย V AC rating with 200ย kA interrupting capacity and center Typeย K indicator for clear blown-fuse status.
Cost-Effective Options:
Available as new OEM stock or reclaimed from decommissioned, fully functional UPS units, each fuse continuity-tested and verified.
Parameter | Value |
Manufacturer | BUSSMAN (Eaton) |
Part Number | 170M7083 |
Fuse Type / Category | Semiconductor Protection, aR (high-speed) |
Rated Voltage | 690ย V AC |
Rated Current | 2500ย A |
Interrupting Capacity | 200ย kA |
Indicator | Center indicator, Typeย K |
Body / Size | Square-body Sizeย 4, 4BKN/65 |
Terminals / Mounting | Flush-end contact, M10 studs; 66.6ย mm center-to-center |
Pre-arcing Iยฒt @ 660ย V | 1,200,000ย Aยฒs |
Clearing Iยฒt @ 660ย V | 7,800,000ย Aยฒs |
Power Loss (at rated) | 275ย W |
Dimensions (L ร W ร H) | 202ย mm ร 140ย mm ร 116ย mm |
Approx. Weight | โย 1.21ย kg |
Compliance / Approvals | IEC rated, UL Recognized; CE-marked; RoHS compliant |
UPC / EAN | UPCย 051712266567 ย |ย EANย 5996516021187 |
Fuse | Compatible UPS Models | Notes |
170M7083 | Used across high-capacity UPS frames and power converters that specify Size-4 (4BKN/65) 690ย V aR fuses. Representative applications include common-bus protection in large UPS systems, DC drives, and rectifier/inverter stacks. |
Verify fitment: 4BKN/65 body, M10 studs, 66.6ย mm centers, and Typeย K indicator. Always match the exact OEM part number/BOM before ordering. |
