Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
$34,992.35
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 200/240 V | N/A | N/A | 42.1" | 23.6" | 78.4" | 910.5 lb |
| Voltage | 200/240 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 42.1" |
| Width | 23.6" |
| Height | 78.4" |
| Weight | 910.5 lb |

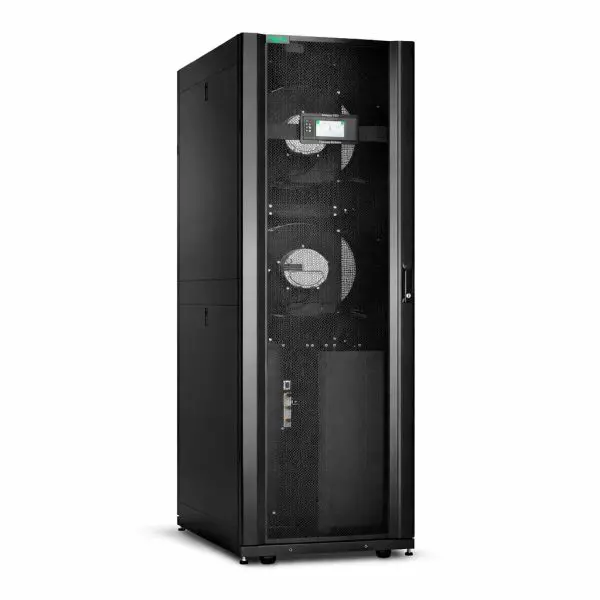

The APC ACRD600P is a factory-new Uniflair InRow RD, 600 mm-wide, air-cooled (direct-expansion) indoor unit designed for close-coupled precision cooling in high-density IT environments. Installed directly in the rack row, it uses a DX coil with matched APC outdoor condensers for efficient heat rejection and integrates with APC facility monitoring. This unit ships brand new from APC/Schneider Electric with full manufacturer warranty and support.
| Category | Detail |
|---|---|
| Capacity | Row-based air-cooled DX precision cooling; nominal sensible capacity per ACRD600P datasheet (configuration-dependent) |
| Power Input | 200–240 V, 50/60 Hz (controls/compressor/fans as applicable); electrical MCA/MOP per unit nameplate |
| Refrigerant | Direct-expansion (DX) circuit using R410A; factory charge per specification |
| Airflow | High-efficiency EC fans; variable-speed; front-to-back airflow for in-row deployment |
| Controls & Monitoring | Uniflair controller with local HMI; alarms; BMS integration options (e.g., Modbus); compatible with APC monitoring |
| Physical | InRow cabinet, 600 mm (≈23.6″) width; nominal 42U height; exact dimensions/weight per mechanical drawing |
| Environment | Indoor IT environment; operating limits (ambient, humidity, altitude) per datasheet; condensate management provided |
| Accessory | Model | Notes |
|---|---|---|
| Outdoor Condenser | ACCD / ACCU series | Matched APC condensers for DX heat rejection (select to match site voltage/capacity) |
| Leak Detection | Uniflair LD kit | Optional tray/spot/leak rope sensors with alarm integration |
