$14,991.46
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/230 V | N/A | N/A | 124" | 38.5" | 32.4" | 480 lb |
| Voltage | 208/230 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 124" |
| Width | 38.5" |
| Height | 32.4" |
| Weight | 480 lb |

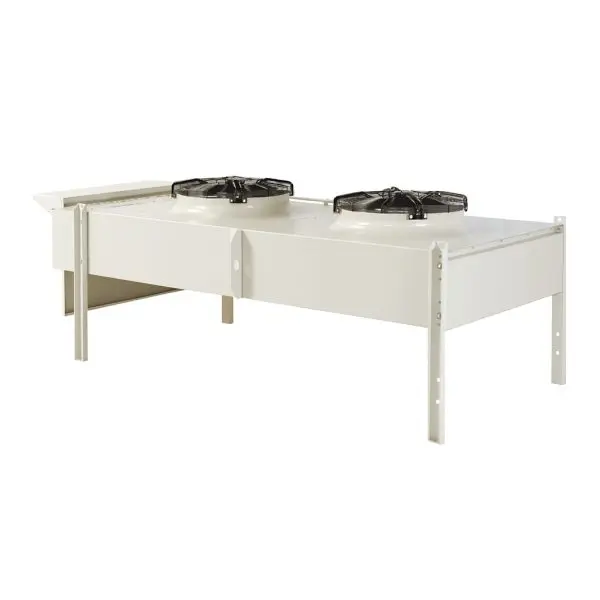

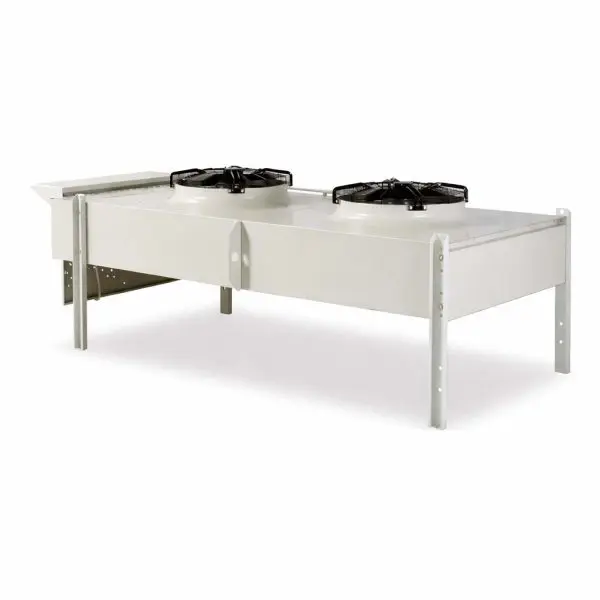

Support your precision cooling system with the APC / Schneider Electric ACCD75228 air-cooled condenser. Designed for compatible refrigerant-based cooling installations, this outdoor unit rejects heat from the cooling circuit to the surrounding air, supporting temperature control in demanding IT and data center environments.
Supplied as factory-new APC / Schneider Electric equipment, the ACCD75228 must be matched to the indoor cooling unit, refrigerant circuit, and site conditions. Gruber Power Services can assist with equipment selection, installation planning, and applicable manufacturer warranty information.
| Category | Details |
|---|---|
| Product Type | Outdoor air-cooled condenser for a compatible precision cooling installation. |
| Heat-Rejection Capacity | Select capacity using the manufacturer’s performance data for the matched indoor unit, refrigerant, and design ambient temperature. The approximately 75 kW figure in the supplied description requires model-specific confirmation. |
| Electrical Supply | Listed supply: 208–230 VAC, three-phase, 60 Hz. Confirm nameplate voltage, minimum circuit ampacity, maximum overcurrent protection, and disconnect requirements before installation. |
| Refrigerant Circuit | Confirm refrigerant type, circuit compatibility, design pressure, piping requirements, and field-charge procedure from the documentation for the exact condenser and indoor-unit combination. |
| Fans & Airflow | Condenser fans provide outdoor heat rejection. Confirm fan type, speed-control method, airflow direction, and required unobstructed clearances in the model-specific documentation. |
| Controls & Integration | Control connections must match the supported indoor cooling system. Available monitoring, alarms, and communication functions depend on the complete system configuration. |
| Dimensions & Weight | Obtain the model-specific mechanical drawing and shipping information before planning delivery, lifting, mounting, and structural support. Approximate dimensions and weight must be confirmed for the supplied unit. |
| Operating Environment | Outdoor installation. Confirm minimum and maximum ambient temperatures, any low-ambient equipment requirements, altitude limits, and site exposure restrictions for the selected system. |
| Condition & Warranty | Factory-new equipment. Manufacturer warranty duration, coverage, startup requirements, and service terms will be confirmed with the quotation. |
| Option | Details |
|---|---|
| System Controls & Monitoring | Confirm supported control connections and any required interface hardware for the matched indoor cooling unit. |
| Mounting & Site Accessories | Mounting supports and any manufacturer-approved site accessories must suit the unit, structural requirements, and installation environment. |
| Piping & Electrical Materials | Field piping, insulation, wiring, disconnects, and protective devices selected according to the complete system design and manufacturer’s requirements. |
| Startup & Commissioning | Contact Gruber Power Services for assistance identifying required startup procedures and available commissioning support. |
Get factory-new APC / Schneider Electric equipment with assistance selecting compatible components, planning installation requirements, and understanding applicable manufacturer warranty coverage.
Contact Gruber Power Services for current availability, pricing, and help matching the ACCD75228 to your cooling system.
