$330.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 125 – 600 VAC | 150 A | 2.6" | 3.0" | 4.9 " | 1.33 lbs |
| Voltage | 125 – 600 VAC |
| Amp/H | 150 A |
| Length | 2.6" |
| Width | 3.0" |
| Height | 4.9 " |
| Weight | 1.33 lbs |
Genuine Cutler-Hammer / Eaton Series C Gi125 universal molded-case circuit breaker (3-pole). Cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Series / frame | Series C — Gi-frame (Gi125) |
| Poles | 3-pole |
| Ampere rating | 150A |
| Voltage rating | Up to 480Y/277 VAC (3-phase); IEC frame rated to 690 VAC |
| Interrupting ratings (NEMA/UL) | 18 kA @ 240 VAC • 14 kA @ 480Y/277 VAC (RMS Sym.) |
| Interrupting ratings (IEC 947-2) | Icu/Ics: 18/5 kA @ 220–240 VAC |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |

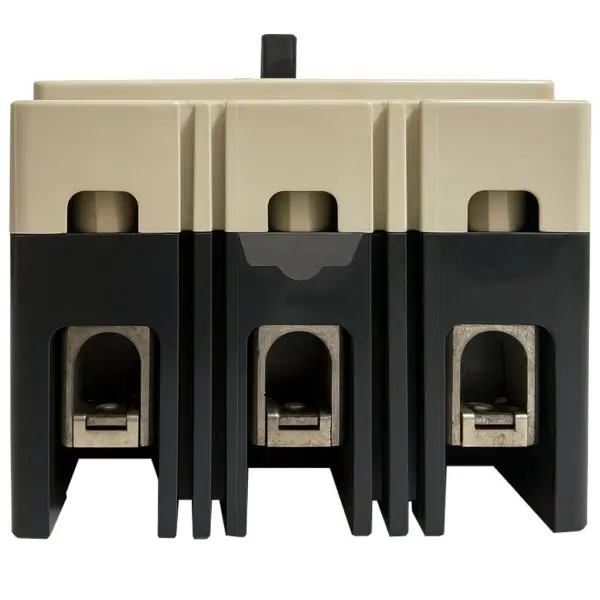

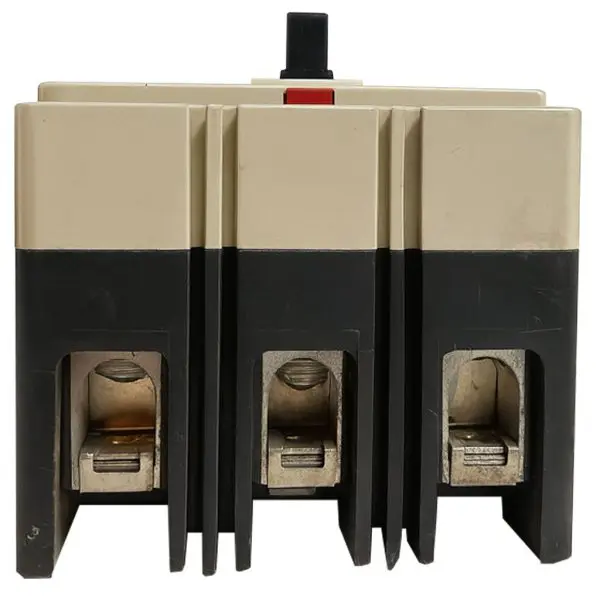

| Terminals | Pressure type, Cu (standard); both line & load terminals included |
| Mounting / accessories | Bolt-in panel mount; end-cap kit included; accepts Series C accessories |
| Dimensions (H × W × L) | 4.9 in × 3.0 in × 2.6 in |
| Weight (approx.) | 1.33 lb (3-pole) |
| Standards / approvals | UL 489 / CSA (NEMA ratings) • IEC 947-2 / IEC 60947-2 |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; terminals fitted; trip verified; ready to install | 90-Day |
