$48.95
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 5 A | 3.9" | 1.8" | 3.3" | 1 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 5 A |
| Length | 3.9" |
| Width | 1.8" |
| Height | 3.3" |
| Weight | 1 lbs |

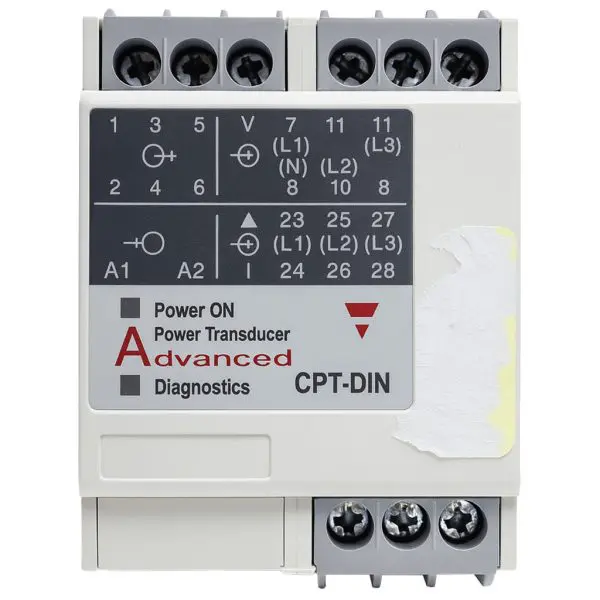

Compact, programmable power/energy transducer for 3-phase systems. Measures and retransmits main electrical variables; configurable analog outputs and serial communications for PLC/SCADA integration.
| Parameter | Detail |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Model / family | CPT-DIN “Advanced version” (e.g., CPTDINAV53L…) |
| System compatibility | 3-phase, 4-wire systems; true-RMS measurement; 50/60 Hz |
| Voltage input ranges | L-N: 230–347 V • L-L: 400–600 V (per AV5 “3” range) |
| Current input | 5 A via external CTs (5 A secondary) |
| Measured / retransmitted variables | V, A, kW, kVA, kvar, kWh (Class 1), kvarh (Class 2), PF, Hz, demand values, phase & line quantities |
| Accuracy | ±0.5% F.S. (V/I) |
| Analog outputs (per variant) | Up to 3 analog outputs (e.g., 0/4–20 mA or 0–10 V), freely assignable/scalable |
| Digital I/O & alarms | Up to 16 configurable alarms (OR/AND logic) linked to up to 2 digital outputs |
| Communications | RS232/RS485/RS422 (Modbus RTU); some versions with Dupline® bus |
| Configuration | UCS software; front RJ-style service port (model-dependent) |
| Power supply options | L-type: 18–60 VAC/DC • H-type: 90–260 VAC/DC |
| Housing / mounting | ABS, self-extinguishing UL94 V-0 • 35 mm DIN-rail • IP20 |
| Terminals | Screw, up to 2.5 mm² conductors |
| Dimensions (H × W × D) | 83.5 mm × 45 mm × 98.5 mm (3.29 in × 1.77 in × 3.88 in) |
| Weight | ≈ 0.20 kg (≈ 0.44 lb) |
| Standards / approvals | CE; cURus/CSA (per variant); IEC/EN 61010-1; EMC compliant |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified measurement & outputs; ready to integrate | 90‑Day |
