Manufacturer
OEM Part Number
GPS Part Number
Categories
$140.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 277 V | 30 A | 1.7" | 2.3" | 2.0" | 0.41 lb |
| Voltage | 277 V |
| Amp/H | 30 A |
| Length | 1.7" |
| Width | 2.3" |
| Height | 2.0" |
| Weight | 0.41 lb |

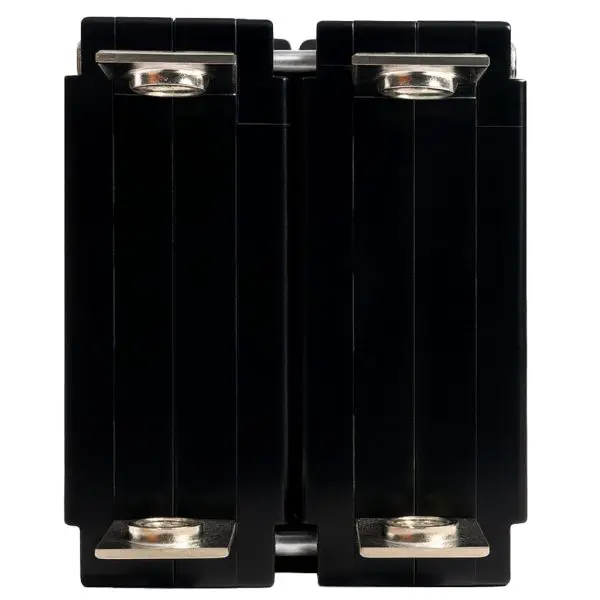

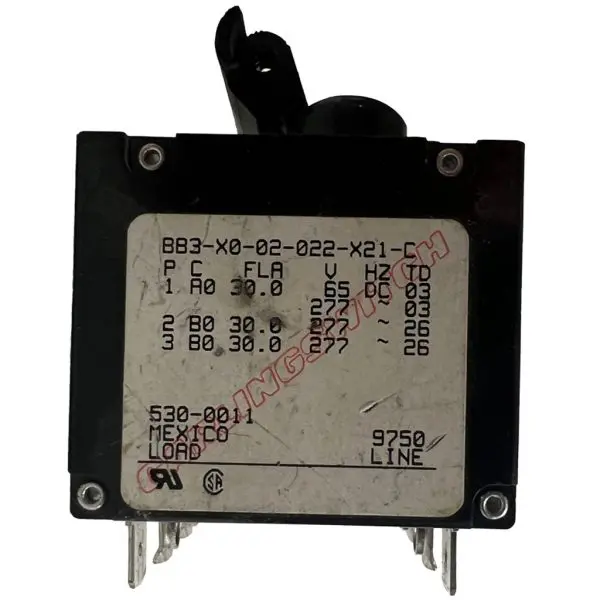

Genuine Carling C-Series hydraulic-magnetic circuit breaker, cleaned, inspected, and shop-tested. Temperature-stable, trip-free protection suitable for high-inrush applications.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | C-Series hydraulic-magnetic, panel-mount |
| Poles | 3 poles (three-pole break, ganged) |
| Current rating (In) | 30 A |
| Voltage ratings | 480Y/277 V AC (50/60 Hz) • 80 V DC |
| Delay / curve | Per unit label (hydraulic-magnetic inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |
| Terminations | Screw / stud terminals — Line & Load per pole |
| Actuator | Toggle handle (ganged poles) |
| Mounting | Panel mount; 6-32 threaded inserts (C-Series bezel) |
| Dimensions (H × W × D) | 50.80 mm × 57.53 mm × 42.16 mm (2.0 in × 2.3 in × 1.7 in) |
| Weight | 0.41 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL / cUL; IEC/EN 60947-2 or 60934 (per variant; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; curve verified; intact labels; ready to install | 90-Day |
