$19.98
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 277 V | N/A | 40 A | 1.7" | 0.8" | 2.5" | 0.28 lb |
| Voltage | 277 V |
| WPC | N/A |
| Amp/H | 40 A |
| Length | 1.7" |
| Width | 0.8" |
| Height | 2.5" |
| Weight | 0.28 lb |

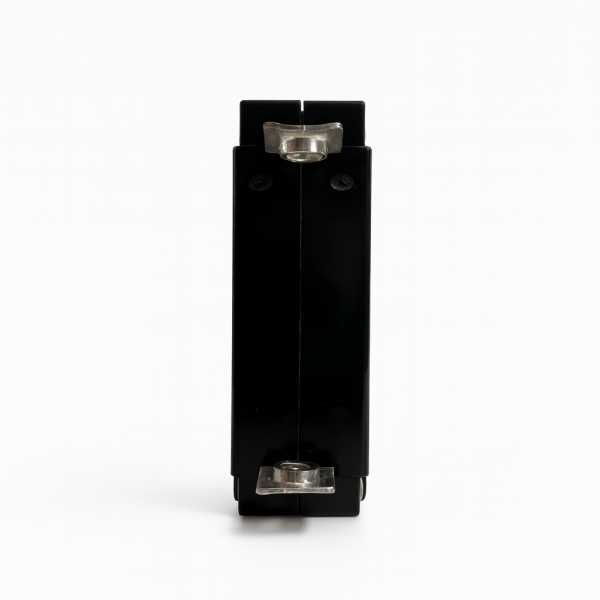

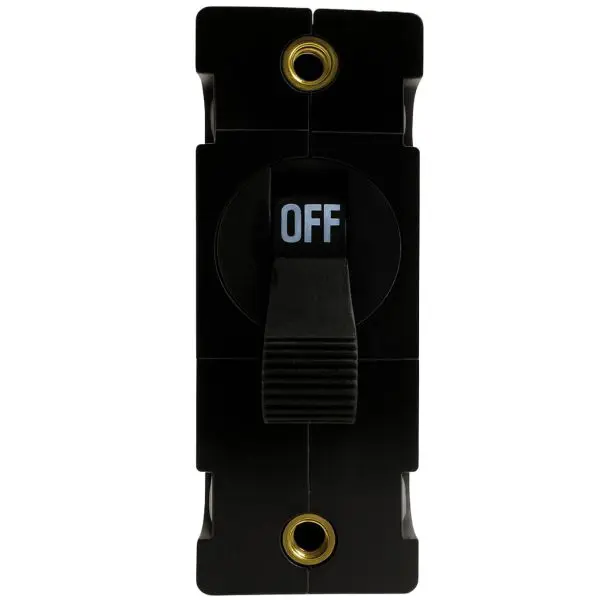

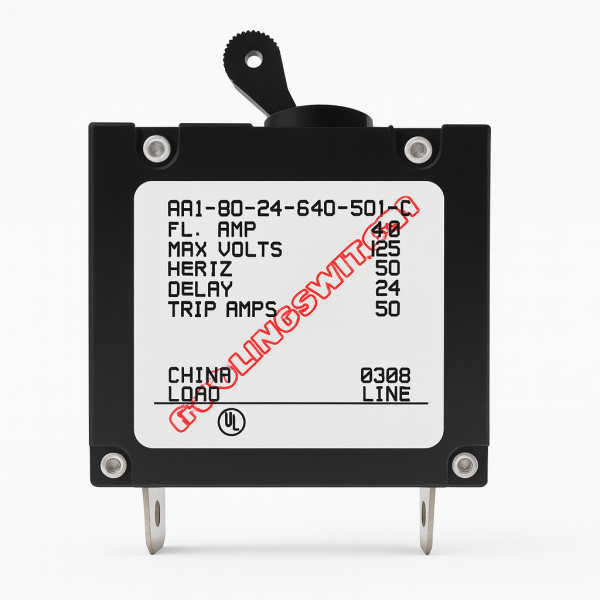

Genuine Carling hydraulic-magnetic circuit breaker, cleaned, inspected, and shop-tested. Temperature-stable, trip-free protection for high-inrush and precision branch applications.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | C-Series hydraulic-magnetic, panel-mount |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 40 A |
| Voltage ratings | 277 V AC (50/60 Hz) • 80 V DC |
| Delay / curve | Per unit label (hydraulic-magnetic inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |
| Terminations | Screw / stud terminals (Line & Load) |
| Actuator | Handle / toggle |
| Mounting | Panel mount; 6-32 threaded inserts (C-Series bezel) |
| Dimensions (H × W × D) | 63.5 mm × 19.1 mm × 42.0 mm (2.50 in × 0.75 in × 1.65 in) |
| Weight | 0.20 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL 1077 / cUL; IEC/EN 60947-2 or 60934 (per variant; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; curve verified; intact labels; ready to install | 90-Day |
