Manufacturer
OEM Part Number
GPS Part Number
Categories
$465.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 230 – 600 V | 250 A | 4.72" | 6.14" | 6.69" | 8.55 lb |
| Voltage | 230 – 600 V |
| Amp/H | 250 A |
| Length | 4.72" |
| Width | 6.14" |
| Height | 6.69" |
| Weight | 8.55 lb |

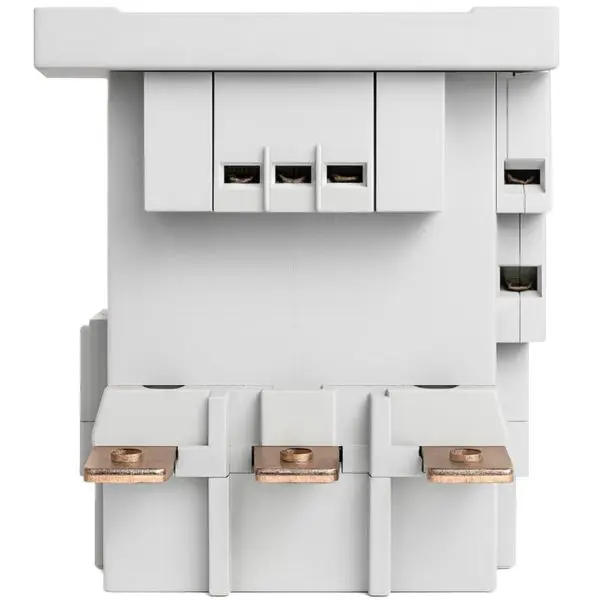

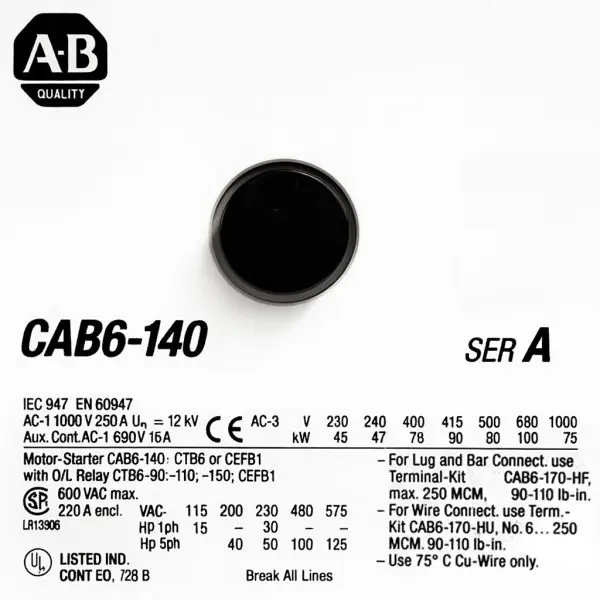

Allen-Bradley CAB6-series AC contactor (CAB6-140 frame) equipped with an auxiliary contact block. Cleaned, inspected, and shop-tested for reliable service.
| Parameter | Detail |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part number | CAB6-140 (typical build: CAB6-140-EI-11-โขโข) + Aux block (e.g., CAB6-P1-11) |
| Utilization category | AC-3 (motor duty) |
| AC-1 current (40ย ยฐC) | 250ย A |
| AC-3 motor power (reference) | 55ย kW @ 230ย V โข 90โ100ย kW @ 400/415ย V โข 110ย kW @ 500ย V โข 160โ170ย kW @ 690ย V |
| Rated operational voltage (Ue) | Up to 690ย Vย AC |
| Control circuit (coil) | AC 50/60ย Hz wide-range options (examples): 24โ28ย V, 110โ130ย V, 208โ277ย V; DC options available by code |
| Poles & auxiliaries | 3 main NO; integrated 1ย NO + 1ย NC (-11 builds); external aux block included (see below) |

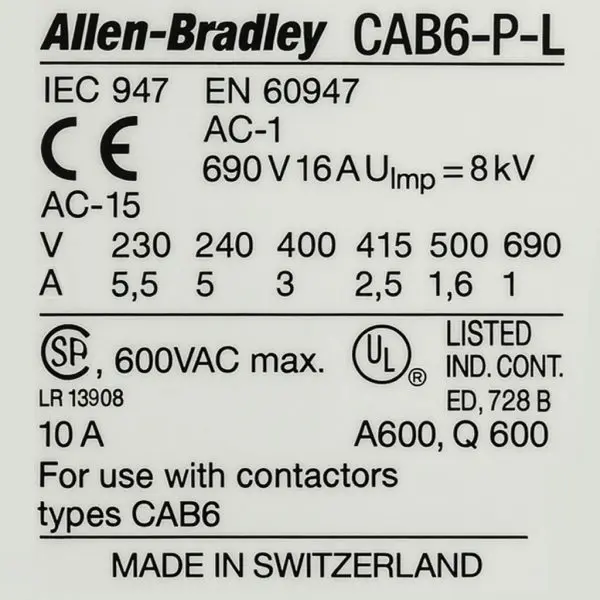

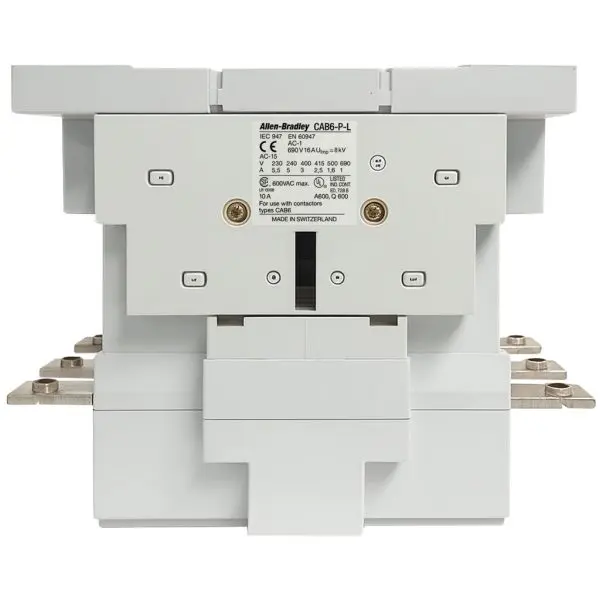

| Auxiliary contact block (fitted) | CAB6-Pโข-11 (side-mount), 1ย NO + 1ย NC, 16ย A AC-1 @ 690ย V; Uimp 8ย kV |
| Terminations | Threaded main terminals; frame terminal blocks available; finger-safe with covers |
| Mounting | Panel mount; mechanical interlock kits available |
| Dimensions (H ร W ร D) | 170ย mm ร 156ย mm ร 120ย mm (6.69ย in ร 6.14ย in ร 4.72ย in) |
| Weight | โย 8.55ย lb (typical CAB6-140-EI-11-14) |
| Compliance | IECย 60947-4-1; UL / CSA listings as marked |
| Condition | Tested pull โ cleaned, inspected, verified; light cosmetic wear only |
| Option | Whatโs included | Warranty |
|---|---|---|
| Tested Pull | Contactor CAB6-140 with side-mounted aux block (1ย NO + 1ย NC), coil verified to spec, terminals inspected, ready to install | 90โDay |
