$35.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 80 V | 15 A | 1.6" | 1.52" | 2.0" | 3.2 oz |
| Voltage | 80 V |
| Amp/H | 15 A |
| Length | 1.6" |
| Width | 1.52" |
| Height | 2.0" |
| Weight | 3.2 oz |

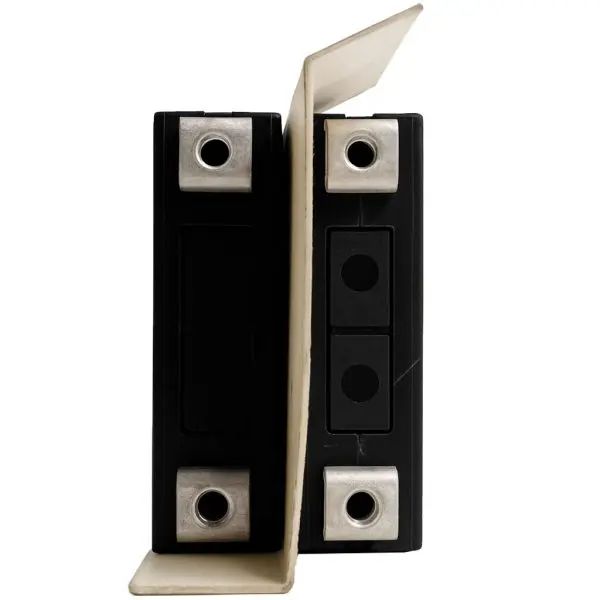

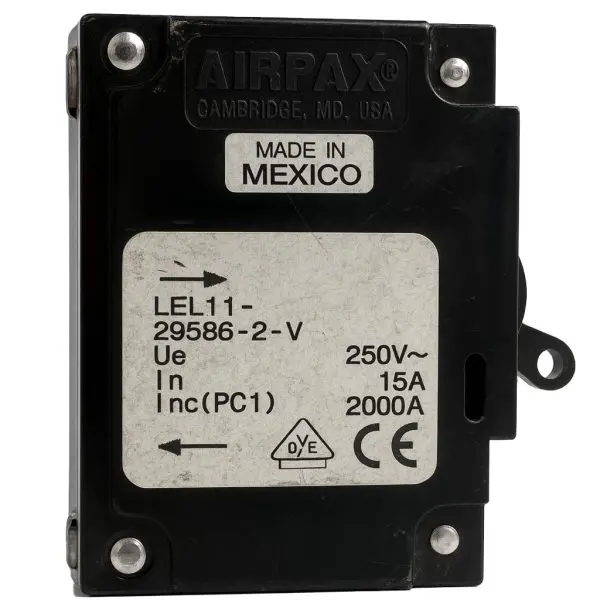

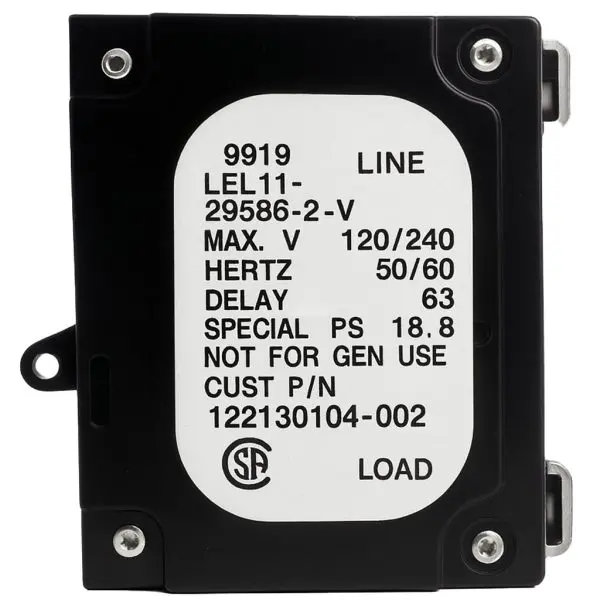

Genuine Sensata/Airpax hydraulic-magnetic circuit breaker, shop-tested and ready for service. Delay “63” curve provides motor/high-inrush tolerance with temperature-stable, trip-free protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Series / style | IEG / IEL hydraulic-magnetic, panel-mount |
| Poles | Single-pole (often used in 2-pole paired assemblies) |
| Current rating (In) | 15 A |
| Voltage ratings | Up to 240 V AC (50/60 Hz) • up to 80 V DC |
| Delay curve | Delay 63 — long motor/high-inrush (inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |
| Terminations | Screw terminals (Line & Load per pole) |
| Actuator | Toggle / lever |
| Mounting | Panel-mount; two #6-32 mounting holes |
| Dimensions (H × W × D) | 50.80 mm × 38.48 mm × 42.16 mm (2.0 in × 1.52 in × 1.60 in) |
| Weight | 0.275 lb (≈ 124.8 g) |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL1077 • CSA • TÜV (per series/marking) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
