Manufacturer
OEM Part Number
GPS Part Number
Categories
$85.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 250 V | 30 A | 2.0" | 1.1" | 1.7" | 0.3 lb |
| Voltage | 250 V |
| Amp/H | 30 A |
| Length | 2.0" |
| Width | 1.1" |
| Height | 1.7" |
| Weight | 0.3 lb |

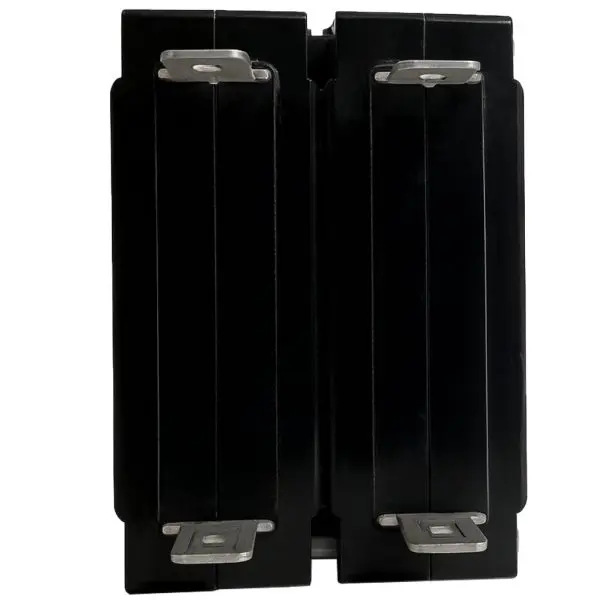

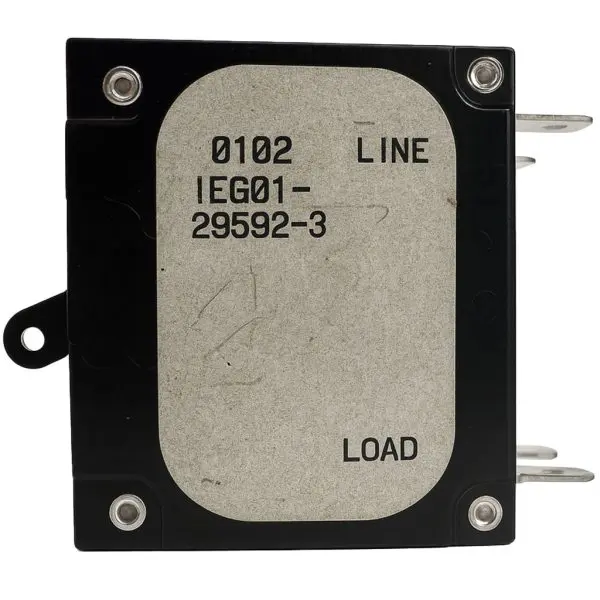

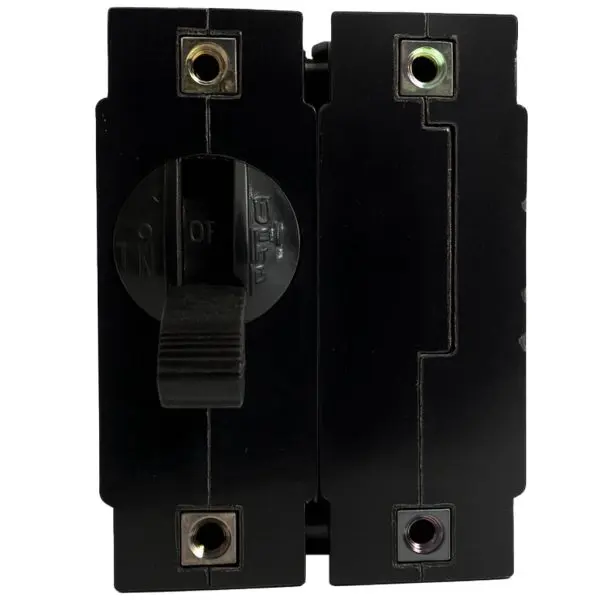

Genuine Sensata/Airpax IEG-series hydraulic-magnetic circuit breaker, shop-tested and ready for service. Temperature-stable, trip-free protection for high-inrush and precision branch applications.
| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Model / code | 0102-IEG01-29592-3 (IEG series, panel-mount) |
| Poles | Single-pole (often used in 2-pole paired assemblies) |
| Actuator type | Toggle / lever |
| Trip technology | Hydraulic-magnetic (inverse-time, trip-free) |
| Voltage ratings | 250 V AC (50/60 Hz) • 80 V DC |
| Operating temperature | −40 °C to +85 °C |
| Terminations | Two screw/stud terminals — Line & Load (2-ports) |
| Mounting | Panel mount; two #6-32 mounting holes |
| Dimensions (H × W × D) | 42.2 mm × 26.7 mm × 50.8 mm (1.7 in × 1.1 in × 2.0 in) |
| Weight | 0.20 lb |
| Standards / approvals | UL1077 • CSA (series-dependent; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90-Day |
