$98.63
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 460 V | N/A | 100 A | 5.1" | 3.3" | 5.5" | 4.2 lb |
| Voltage | 460 V |
| WPC | N/A |
| Amp/H | 100 A |
| Length | 5.1" |
| Width | 3.3" |
| Height | 5.5" |
| Weight | 4.2 lb |

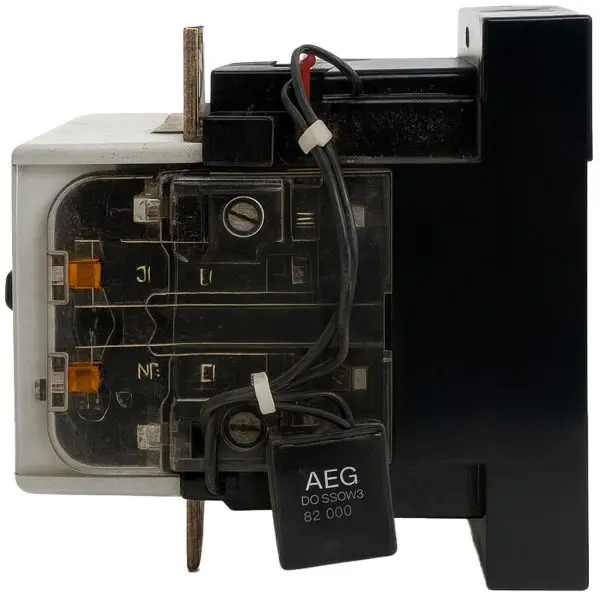

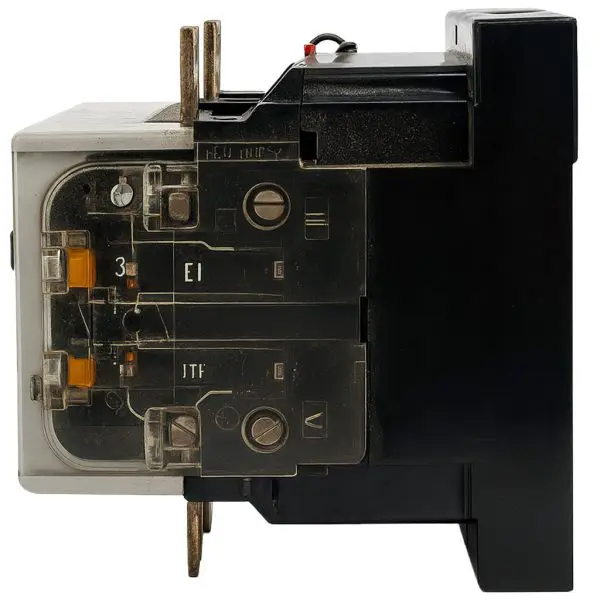

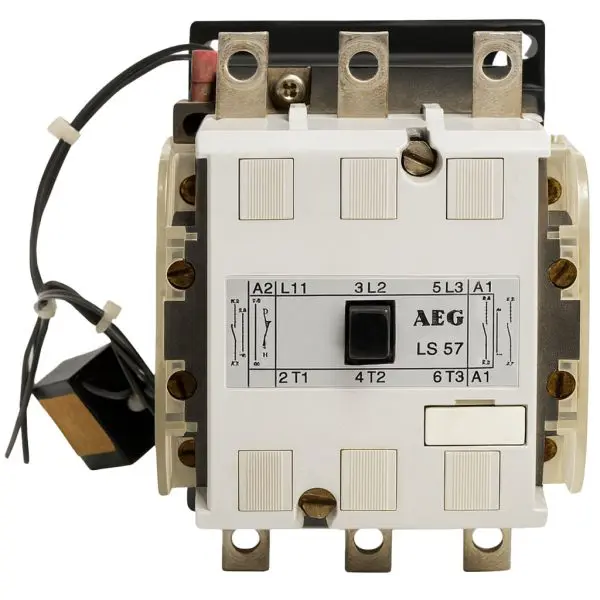

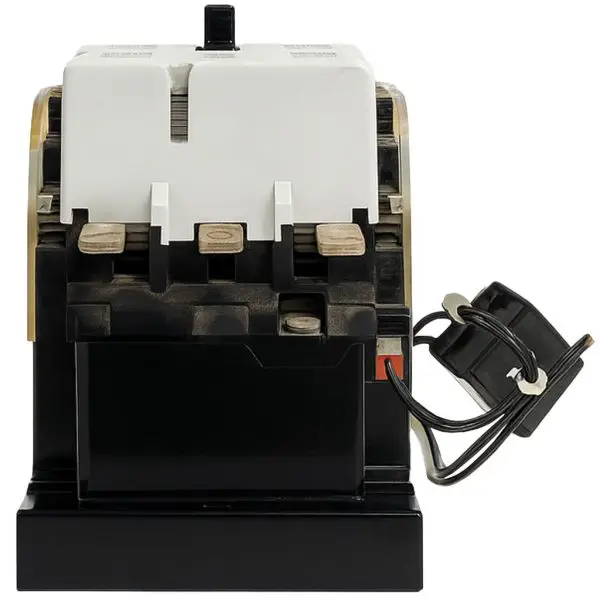

Genuine AEG LS-series power contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | AEG |
| Part number | LS57 • E-Nr 910-337-351-00 |
| Utilization category | AC-3 (motor duty) |
| Thermal current (Ith) | 100 A |
| AC-3 power (approx.) | ~30 kW @ 400/415 V • ~50 HP @ 460 V |
| Rated operational voltage (Ue) | Up to 600 V AC |
| Coil (control circuit) | 120 V AC, 50/60 Hz (suffix “-00”) |
| Poles & auxiliaries | 3 main poles; integrated auxiliary contacts 2 NO + 2 NC |
| Terminations | Screw clamp / lug style |
| Mounting | Panel mount; interlock kits available for reversing sets |
| Dimensions (H × W × D) | ≈ 140 mm × 85 mm × 130 mm (≈ 5.5 in × 3.3 in × 5.1 in) |
| Weight | ≈ 1.9 kg (≈ 4.2 lb) |
| Compliance | IEC/EN 60947-4-1; VDE 0660; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
