$128.96
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 180 A | 7.7" | 5.7" | 7.9" | 6.55 lb |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 180 A |
| Length | 7.7" |
| Width | 5.7" |
| Height | 7.9" |
| Weight | 6.55 lb |

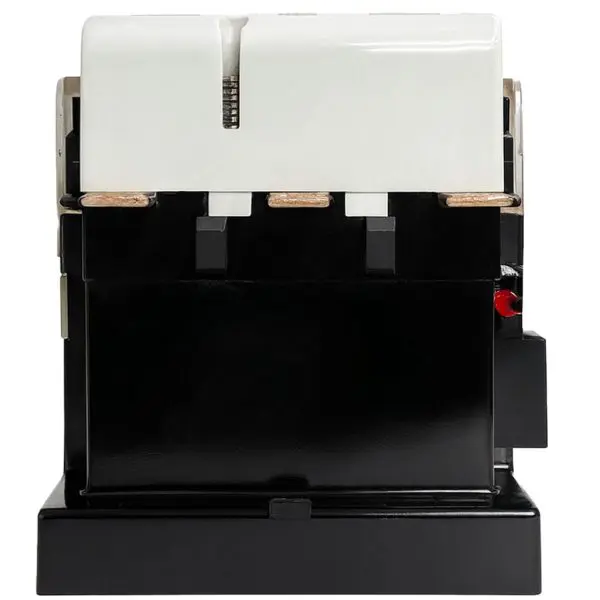

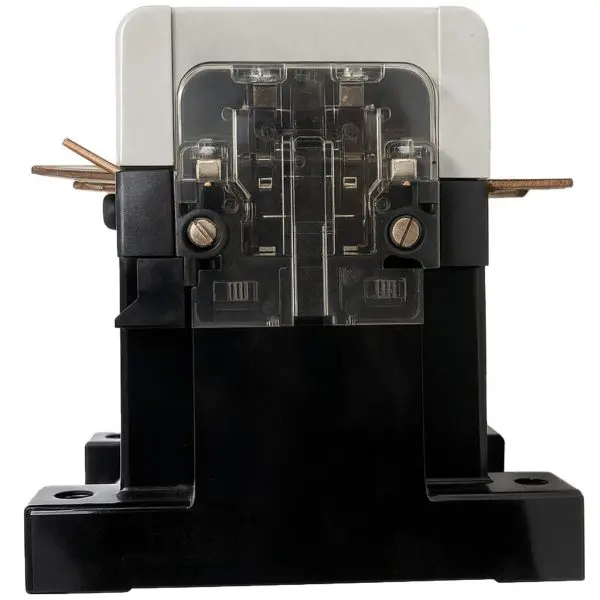

Genuine AEG LC/LS-series power contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | AEG |

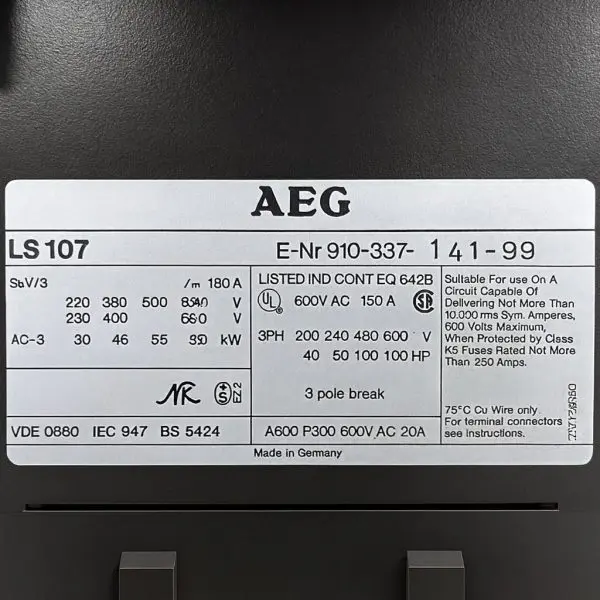

| Part number | LC107 • E-Nr 910-337-141-99 |
| Utilization category | AC-3 (motor duty) |
| Thermal current (Ith) | 180 A |
| Rated operational current (AC-3) | 135 A @ 600 V AC |
| Rated operational voltage (Ue) | Up to 600 V AC • Impulse withstand 8 kV/3 |
| Coil (control circuit) | 24 V AC, 50/60 Hz (per E-Nr …-141-99) |
| Poles & auxiliaries | 3 main poles; auxiliary rating A600 / P300 |
| Terminations | Screw / lug; max terminal torque 2.3 N·m; 60/75 °C Cu-wire only (aux 10–16 AWG, 60 °C Cu) |
| Mounting | Panel mount; mechanical interlock kits available (reversing sets) |
| Dimensions (H × W × D) | 201 mm × 145 mm × 196 mm (7.90 in × 5.70 in × 7.70 in) |
| Weight | ≈ 2.97 kg (≈ 6.55 lb) |
| Compliance | IEC 947 / IEC 60947-4-1; VDE 0660; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
