$999.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 690 V | 400 A | 4.1" | 5.5" | 8.1" | 12.15 lbs |
| Voltage | 690 V |
| Amp/H | 400 A |
| Length | 4.1" |
| Width | 5.5" |
| Height | 8.1" |
| Weight | 12.15 lbs |

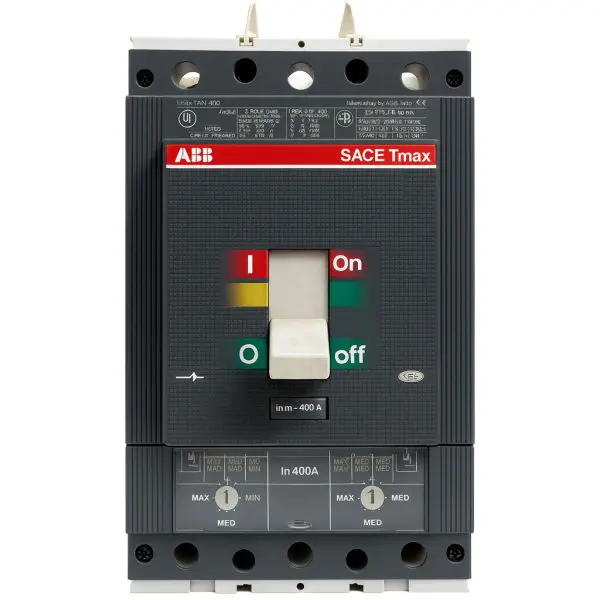

Molded-case circuit breaker from the ABB Sace Tmax T5 family, professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB (SACE) |

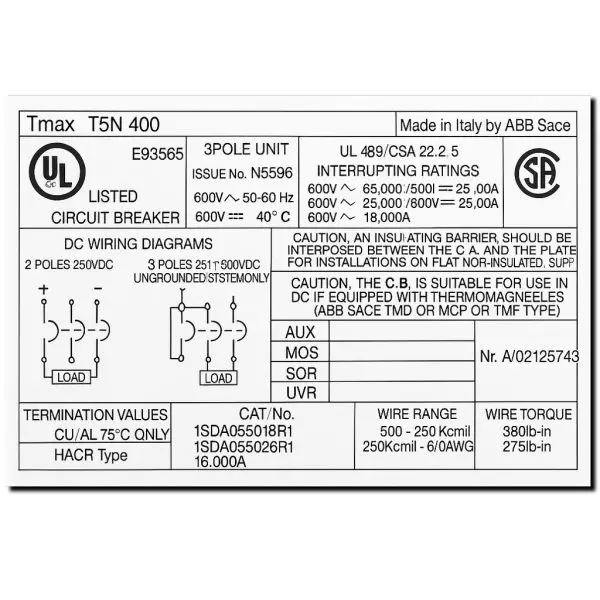

| Part number | Sace Tmax T5N400 — code N5596 (as labeled) |
| Breaker type | Molded-Case Circuit Breaker (MCCB) |
| Poles | 3-pole |
| Frame / In (series) | T5 • 400 A frame (settings/nameplate govern actual In) |
| Trip unit | Per nameplate/code N5596 (verify L/S/I settings) |
| Interrupting rating (AIC) | Per nameplate (kA @ system voltage) |
| Voltage rating | Per nameplate (e.g., 480/600 VAC) — verify for your system |

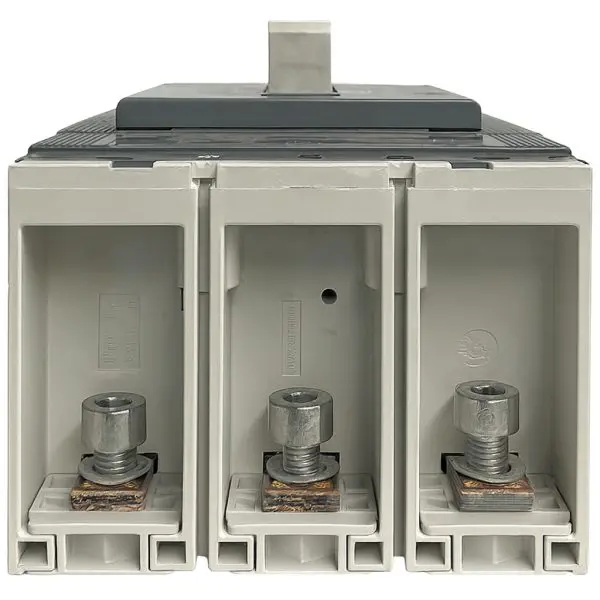

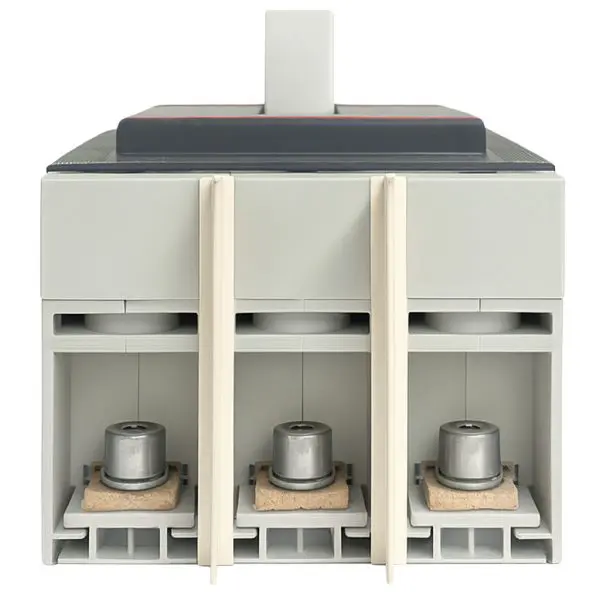

| Terminations | Lugs or bolt-on terminals (as fitted) |
| Compliance | UL / IEC as marked on device label |
| Condition | Tested — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑day |
