$68.72
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 277/480 V | N/A | 70 A | 3" | 3.5" | 5" | 4 lbs |
| Voltage | 277/480 V |
| WPC | N/A |
| Amp/H | 70 A |
| Length | 3" |
| Width | 3.5" |
| Height | 5" |
| Weight | 4 lbs |

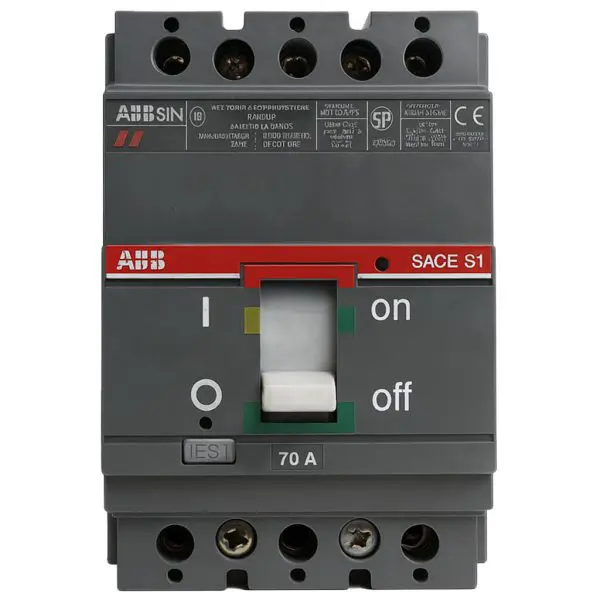

Genuine ABB SACE Isomax S1 molded-case breaker professionally removed from service, then cleaned, inspected, and shop-tested. Like-for-like swap to get you back online fast.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | S1N — SACE Isomax S1 frame (3-pole) |
| Part ref. | P-2719 (seller/catalog reference) |
| Rated current (In) | 70 A (typical for P-2719 listing; S1N range supports multiple amp ratings) |
| Rated operational voltage (Ue) | 277/480 VAC, 3-phase |
| Trip unit | Thermal-magnetic (LI: long-time & instantaneous), non-interchangeable |
| Interrupting capacity | 20 kA @ 480 VAC (S1N typical; some lists also show 25 kA @ 415 VAC) |
| Poles | 3-pole |

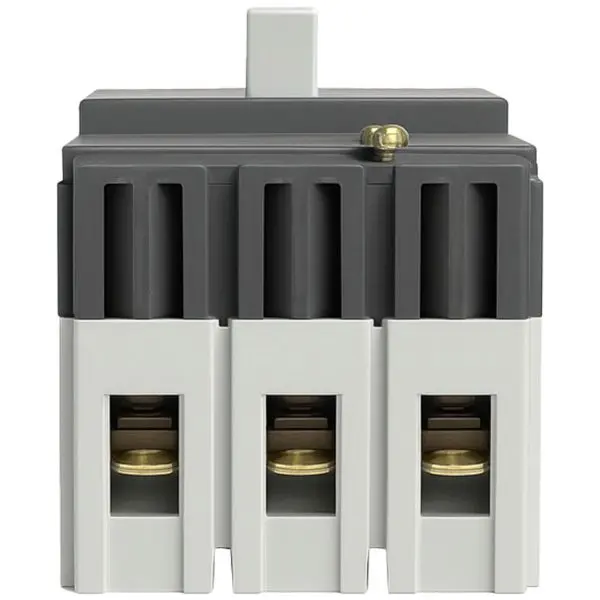

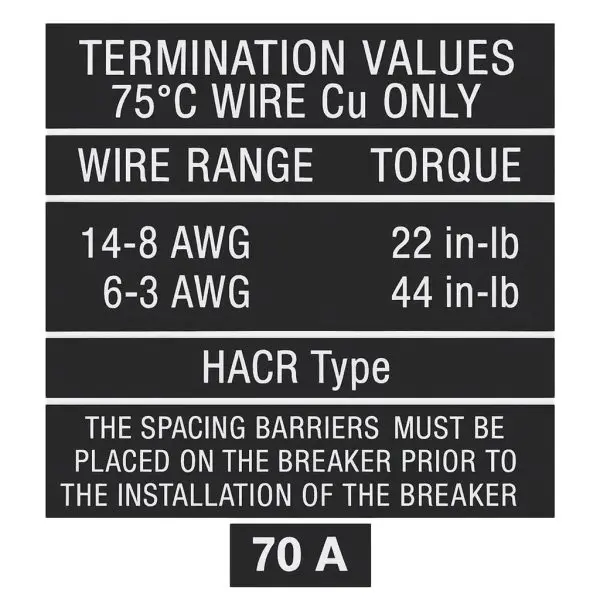

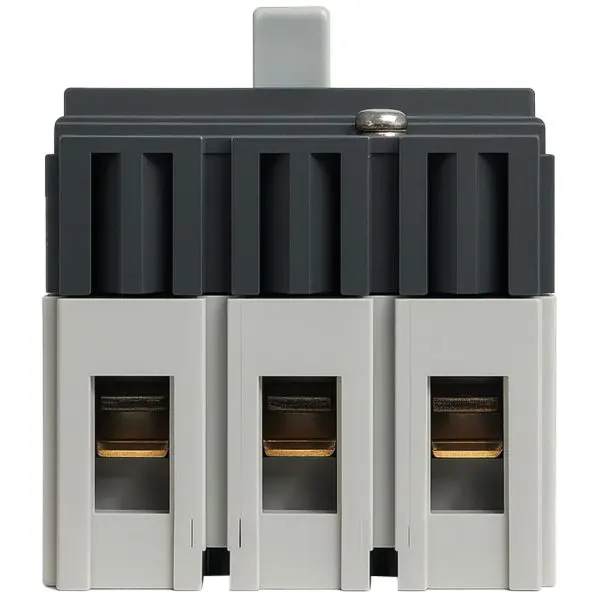

| Terminations | Bolt-on; load-side lug terminals; reverse-feed suitable (per listings) |
| Mounting | Fixed (panel/bus), molded-case MCCB |
| Dimensions (H × W × D) | 120 mm × 78 mm × 70 mm (4.72 in × 3.07 in × 2.76 in) |
| Weight | ≈ 1.8 kg (~4.0 lb) |

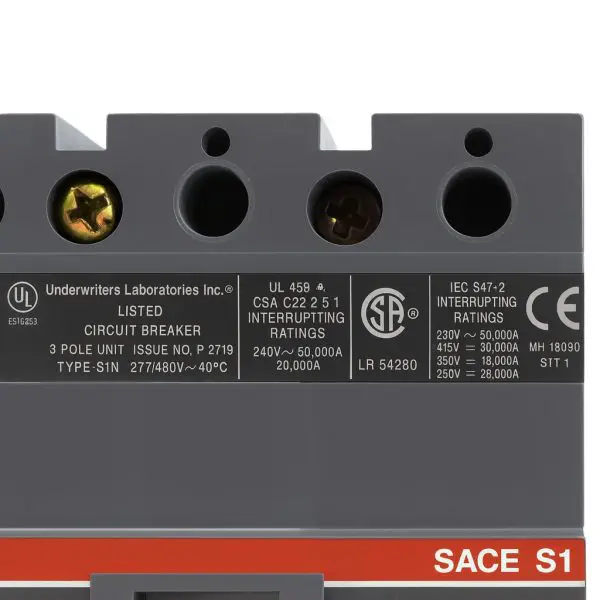

| Compliance | IEC 60947-2; UL 489 (MCCB) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
