$123.56
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 600 A | 4.1" | 8.30" | 10.6" | 18 lbs |
| Voltage | 600 V |
| Amp/H | 600 A |
| Length | 4.1" |
| Width | 8.30" |
| Height | 10.6" |
| Weight | 18 lbs |

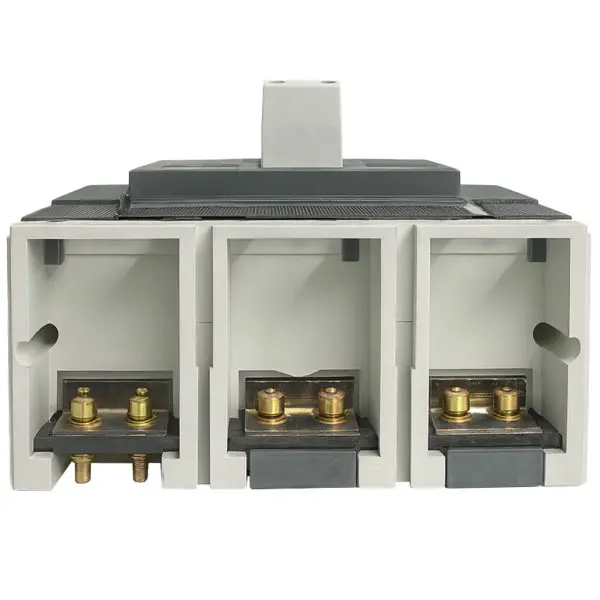

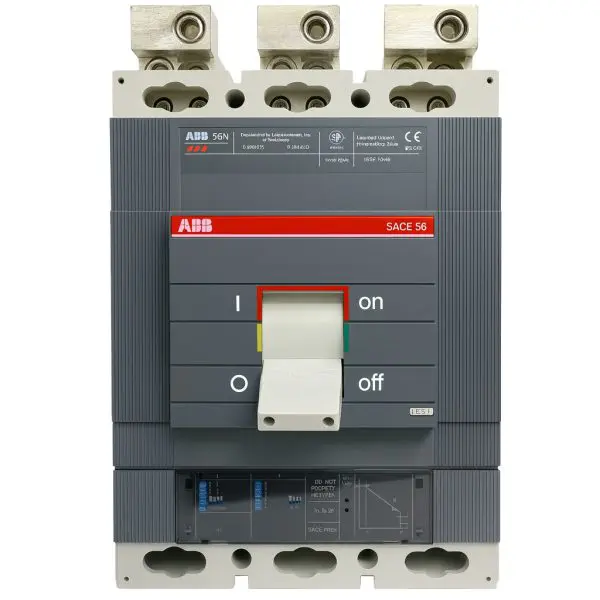

Genuine ABB SACE Isomax S6N breaker professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | SACE Isomax S6N • 3-Pole • Code M-1869 |
| Frame / rated current (In) | 600 A frame • 600 A trip (S6N) |
| Rated operational voltage (Ue) | 600 V AC • 500 V DC |
| Interrupting / breaking capacity | 50 kA @ 480 V AC • 35 kA @ 415 V AC (N-rating) |
| Trip unit type | Thermal-magnetic, non-interchangeable • LI (Long-time & Instantaneous) |
| Poles | 3 Poles |

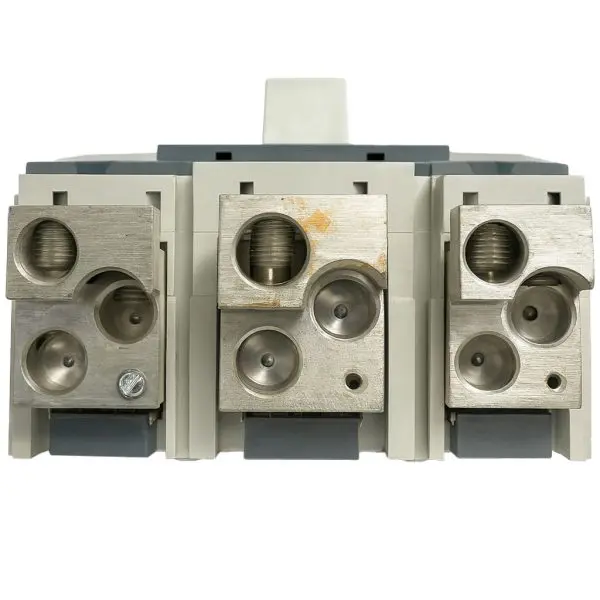

| Terminations | Bolt-On; load-side lug terminals |
| Mounting | Fixed, panel/switchgear; suitable for reverse-feed applications |
| Dimensions (H × W × D) | 268 mm × 210 mm × 103 mm (10.55 in × 8.27 in × 4.07 in) |
| Weight | ≈ 8.16 kg (≈ 18.0 lb) |
| Standards / approvals | IEC 60947-2; UL 489 / CSA C22.2 (as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
