$258.96
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 400 A | 4.07" | 5.1" | 10" | 13.45 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 400 A |
| Length | 4.07" |
| Width | 5.1" |
| Height | 10" |
| Weight | 13.45 lbs |

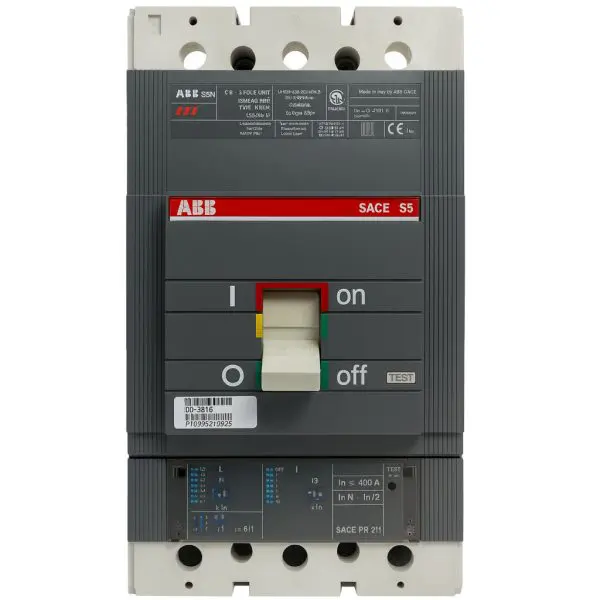

Genuine ABB SACE S5N molded-case circuit breaker professionally removed from service, then cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |

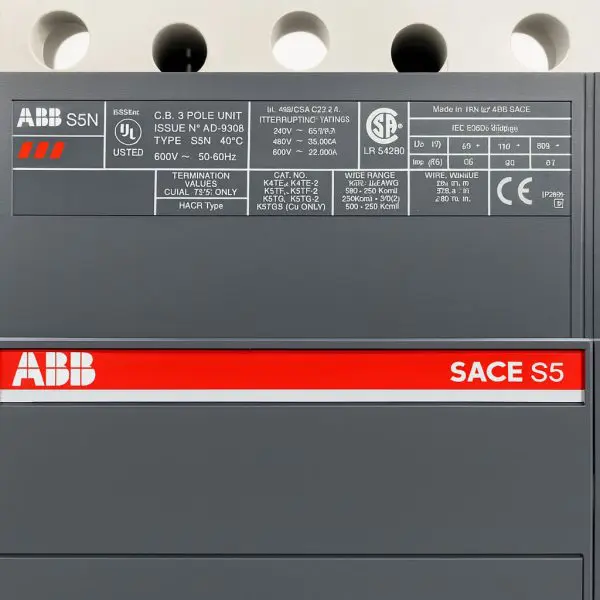

| Model / family | SACE S5N — 3-pole (Issue Nº AD-9308) |
| Rated voltage / frequency | 600 V~ • 50–60 Hz |
| Rated current (In) | 400 A (PR211 trip setting shown on unit) |
| UL 489 / CSA C22.2 No. 5.1 interrupting ratings | 240 V: 65,000 A IC 480 V: 35,000 A IC 600 V: 22,000 A IC |
| Trip unit | Electronic PR211 — LI (Long-time & Instantaneous) |

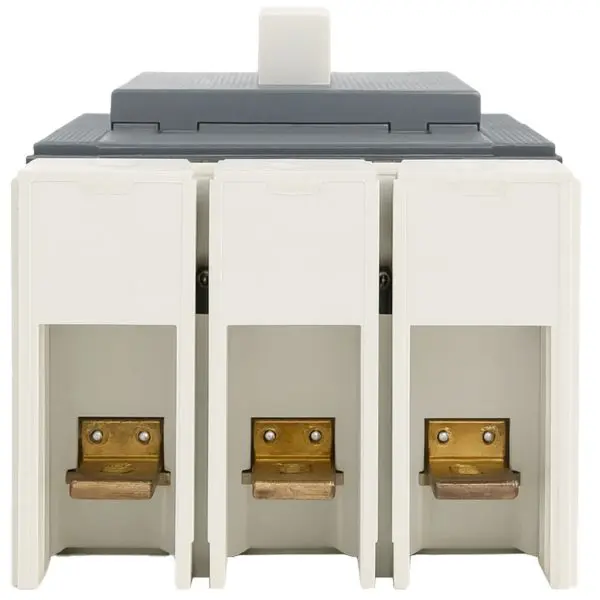

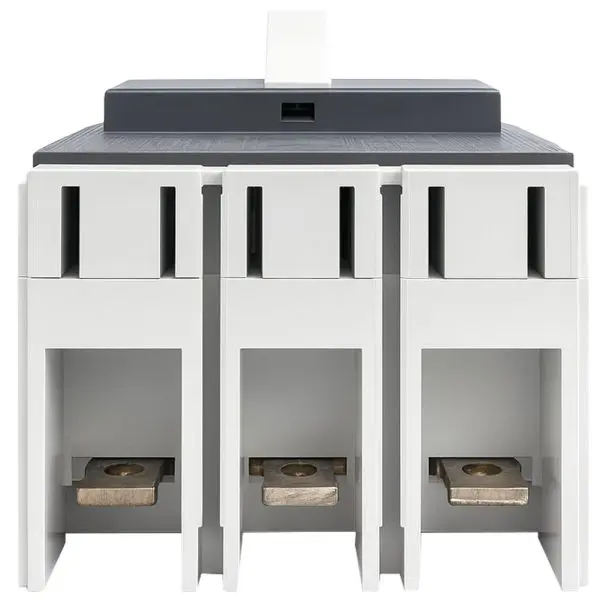

| Terminations / notes | Bolt-on breaker; load-side lugs; HACR Type; Cu/Al 75 °C only |
| Mounting | Fixed (panel/bus), MCCB |
| Dimensions (H × W × D) | 254 mm × 140 mm × 103.5 mm (10.00 in × 5.51 in × 4.07 in) |
| Weight | ≈ 6.1 kg (13.45 lb) |
| Compliance | UL 489 • CSA • IEC 60947-2 |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
