$557.32
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 260 A | 7" | 11" | 9" | 18 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 260 A |
| Length | 7" |
| Width | 11" |
| Height | 9" |
| Weight | 18 lbs |

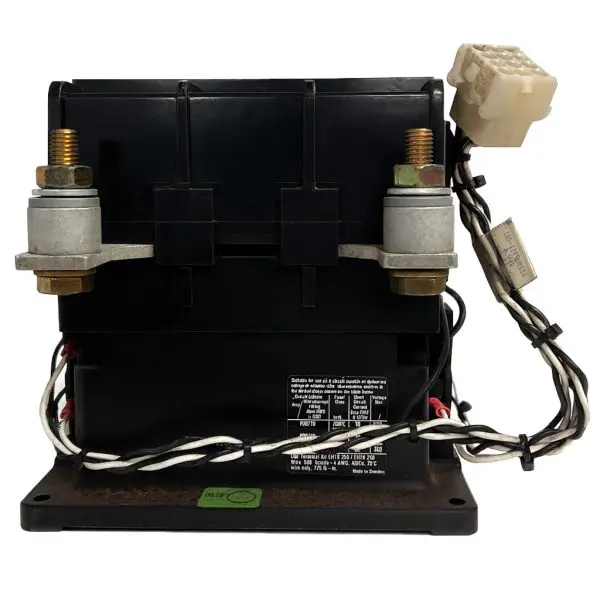

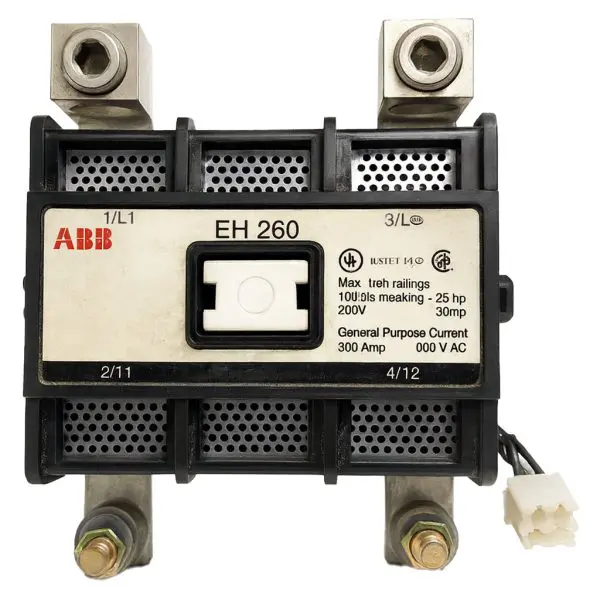

Genuine ABB EH-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | EH260 (common suffixes: -11=1 NO+1 NC, -22=2 NO+2 NC) |
| Utilization category | Motor duty (UL/CSA; industrial control) |
| Rated operational current (Ie) | 260 A (3-phase, up to 600 V AC) |
| Rated operational power (Pe) | 100 HP @ 240 V • 200 HP @ 480 V • 250 HP @ 600 V (UL) |
| Rated operational voltage (Ue) | Up to 600 V AC (UL) |

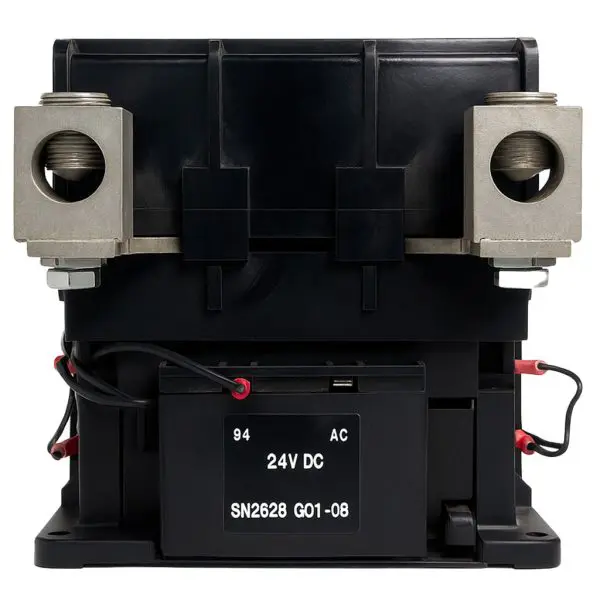

| Control circuit (coil) | Common coil variants include 24 V DC and 120/208/240/277/480 V AC (per coil code) |
| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (e.g., “-22” = 2 NO + 2 NC) |
| Terminations | Main bar/lug terminals; aux terminals finger-safe |
| Mounting | Panel mount (EH260 frame) |
| Dimensions (H × W × D) | ≈ 223 mm × 271 mm × 176 mm (8.78 in × 10.67 in × 6.93 in) — per ABB EH260/300 drawing |
| Weight | ≈ 8.2 kg (~18 lb) |
| Compliance | UL/CSA; IEC 60947-4-1 (series) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
