$556.87
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 – 250 V | N/A | 10 A | 6.1" | 6.3" | 9" | 10 lbs |
| Voltage | 24 – 250 V |
| WPC | N/A |
| Amp/H | 10 A |
| Length | 6.1" |
| Width | 6.3" |
| Height | 9" |
| Weight | 10 lbs |

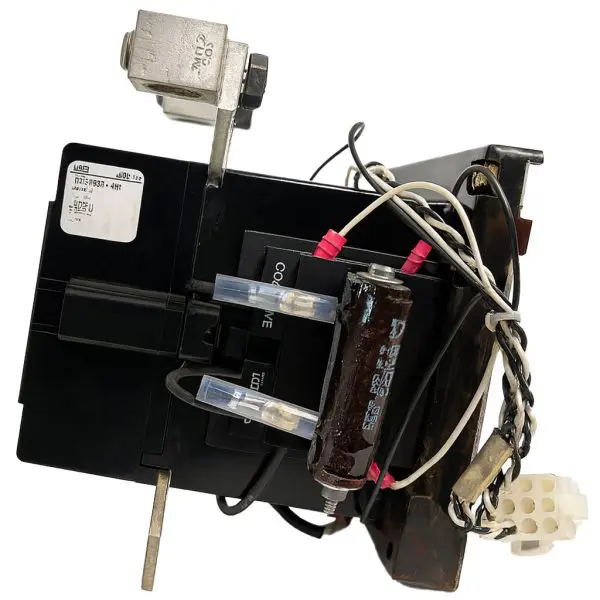

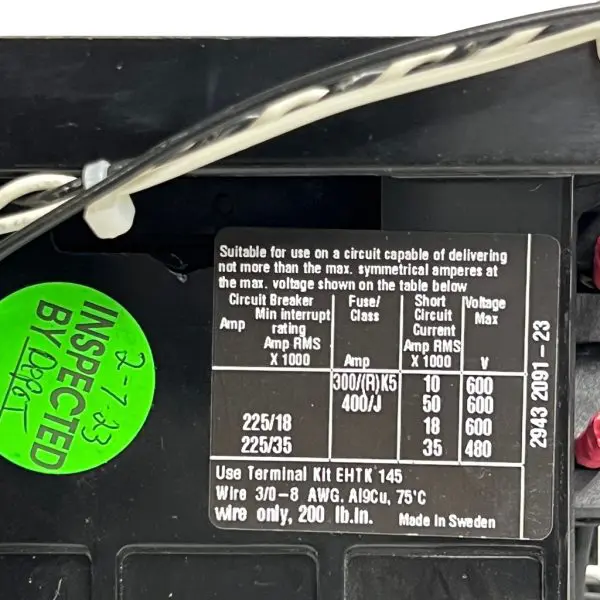

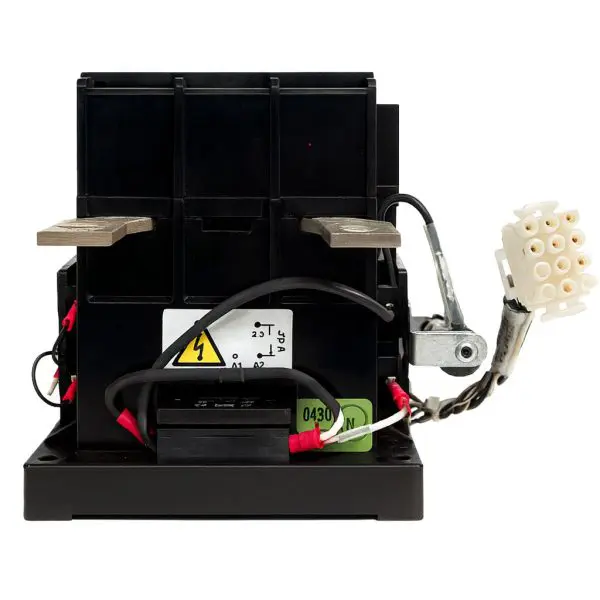

Genuine ABB EH-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | EH145 (typical variants: EH145-30-11 = 1 NO + 1 NC aux; EH145-30-22 = 2 NO + 2 NC aux) |
| Utilization category | Motor duty (UL/CSA & IEC) |
| Rated operational current (Ie) | 145 A (UL general-use) up to 600 V AC |
| Rated operational power (Pe) | UL motor HP: 50 HP @ 240 V • 100 HP @ 480 V • 125 HP @ 600 V |
| Rated operational voltage (Ue) | Up to 600 V AC (UL); up to 600 VAC / 500 VDC per ABB EH series data |
| Control circuit (coil) | AC coils by variant (e.g., 120 V AC “-22” builds); DC coil versions available |

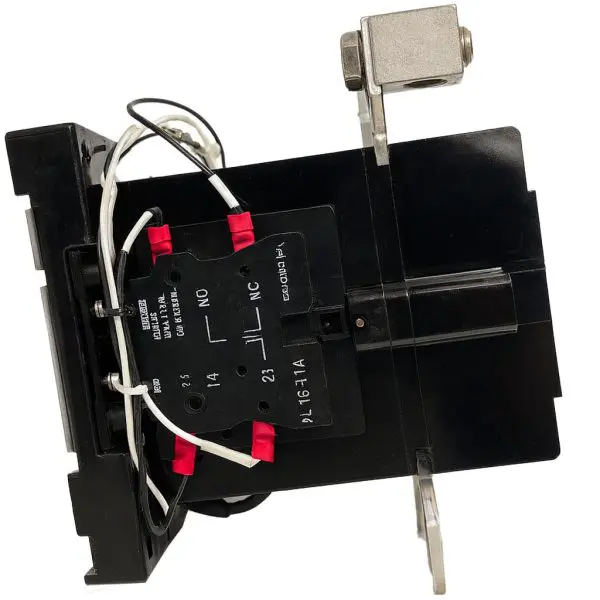

| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (see above) |
| Terminations | Main bar/lug terminals; aux terminals IP20 (per frame) |
| Mounting | Panel mount (EH145 frame) |
| Dimensions (H × W × D) | ≈ 207 mm × 160 mm × 156 mm (8.15 in × 6.30 in × 6.14 in) — ABB “AC1000” catalog, approx. |
| Weight | ~4–5 kg (varies with coil/aux build) |
| Compliance | UL/CSA; IEC 60947-4-1 (per series) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
