$37.23
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 – 250 V | N/A | 10 A | 3" | 1" | 3" | 1 lbs |
| Voltage | 24 – 250 V |
| WPC | N/A |
| Amp/H | 10 A |
| Length | 3" |
| Width | 1" |
| Height | 3" |
| Weight | 1 lbs |

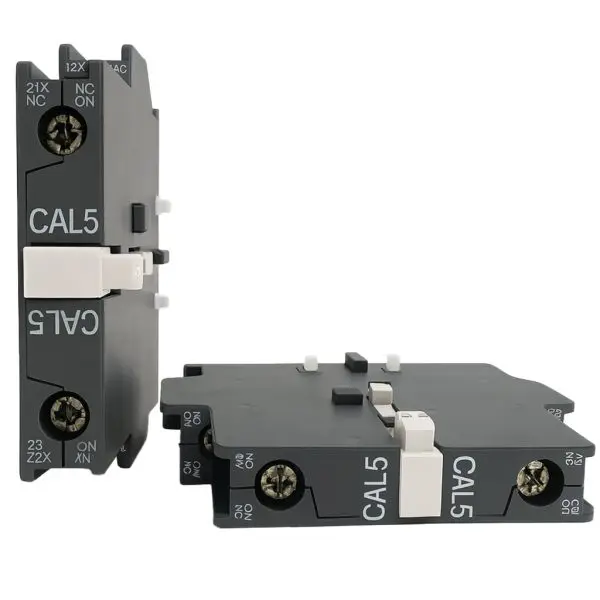

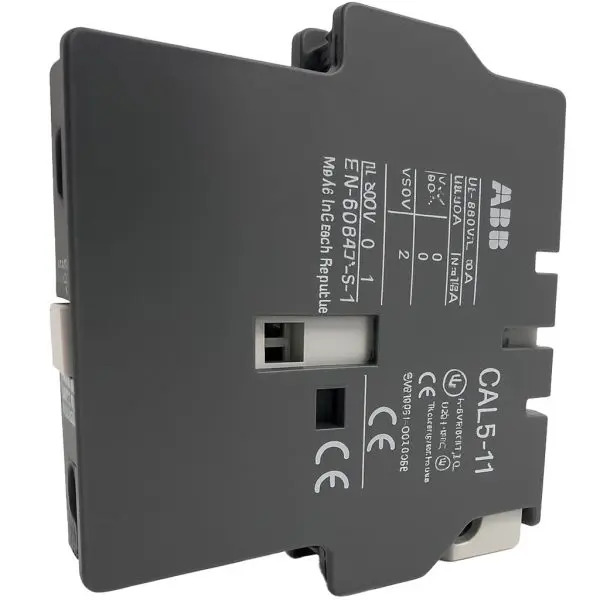

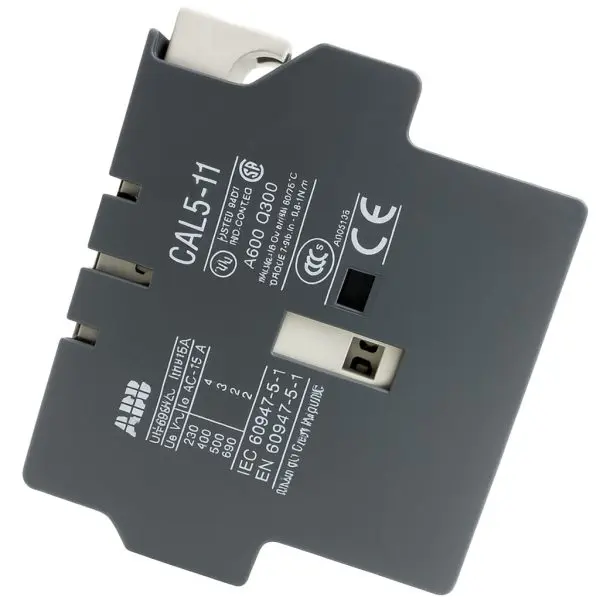

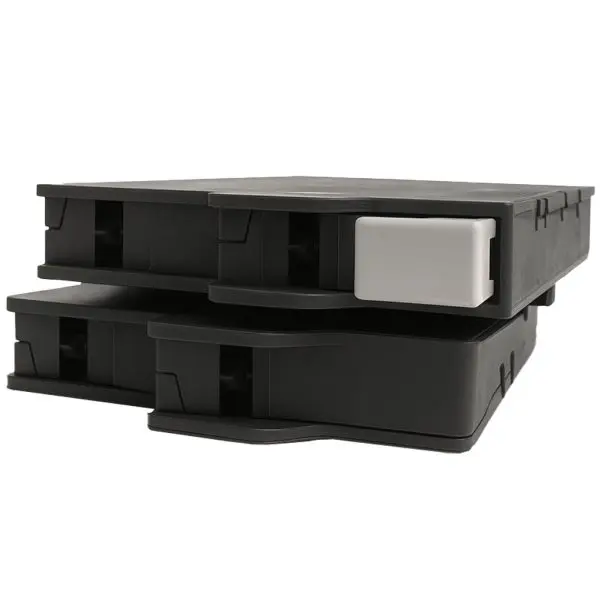

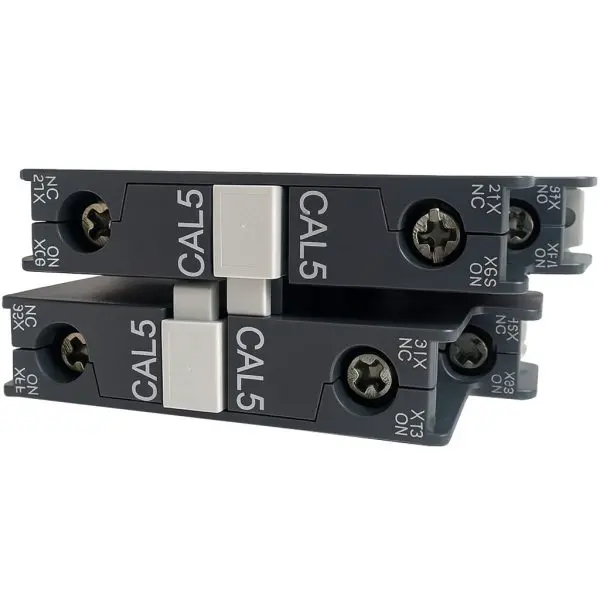

Genuine ABB side-mounted auxiliary contact block professionally removed from a functioning system, then cleaned, inspected, and shop-tested. Drops onto the left or right side of compatible ABB A/AE/AL/N frames.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | CAL5-11 (2-pole side-mount; 1 NO + 1 NC instantaneous) |
| Utilization category | AC-15 / DC-13 (auxiliary control duty) |
| Rated operational current (Ie) | AC-15: 6 A ≤240 V, 3 A @ 400 V. DC-13: 6 A @ 24 V → 0.30 A @ 220–250 V. |
| Rated operational power (Pe) | N/A — auxiliary contacts (no motor power switching) |
| Rated operational voltage (Ue) | Aux circuit up to 690 V AC; Rated insulation Ui 690 V (IEC), UL/CSA 600 V |
| Control circuit (coil) | N/A — passive contact block (no coil) |
| Poles & auxiliaries | 2 contacts total: 1 NO + 1 NC (instantaneous) |
| Terminations | Screw terminals; auxiliary terminals IP20 |
| Mounting | Clip-on left or right side of A9…A75 (A/AE/AL), N & related relays |
| Dimensions (H × W × D) | 74 mm × 12 mm × 62 mm (2.91 in × 0.47 in × 2.44 in) |
| Weight | 0.05 kg (~0.11 lb) |
| Compliance | IEC 60947-5-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
