$148.26
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 400 – 415 V | N/A | 30 A | 2" | 3.15" | 5.15" | 2 lbs |
| Voltage | 400 – 415 V |
| WPC | N/A |
| Amp/H | 30 A |
| Length | 2" |
| Width | 3.15" |
| Height | 5.15" |
| Weight | 2 lbs |

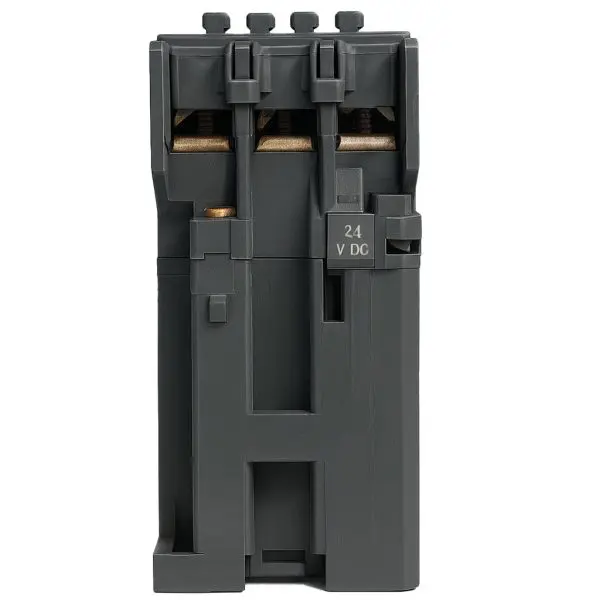

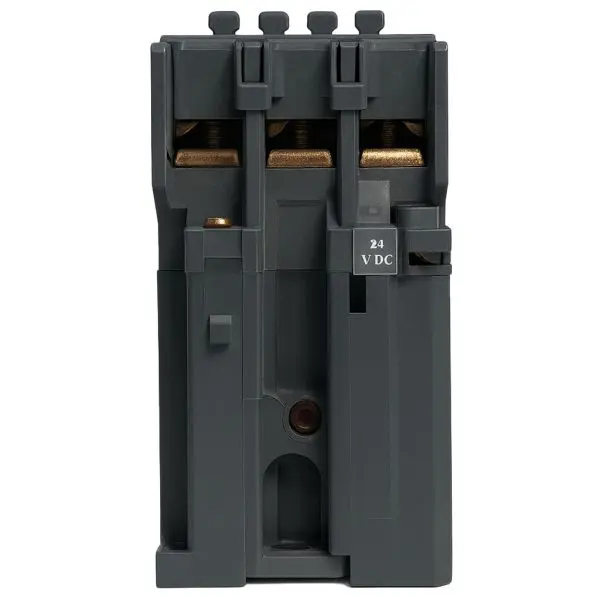

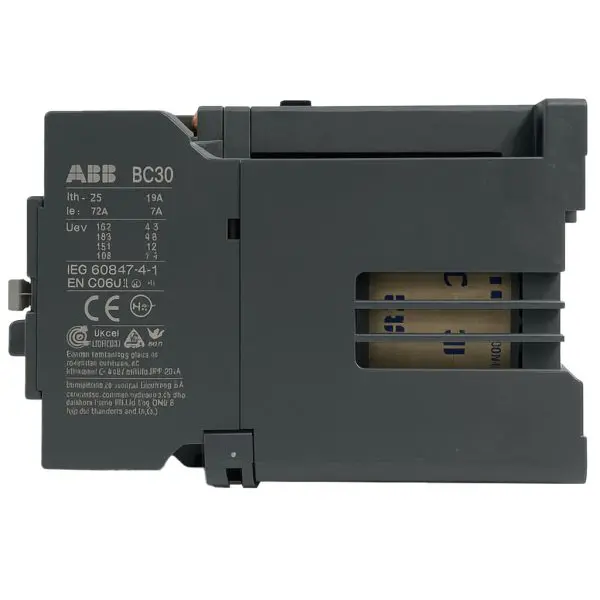

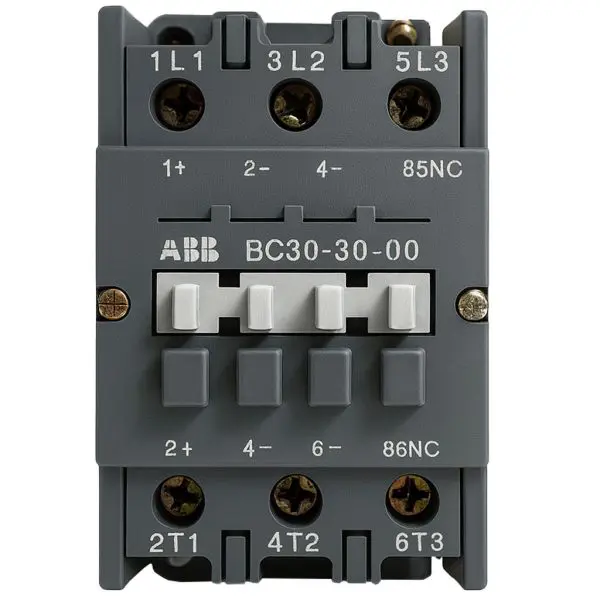

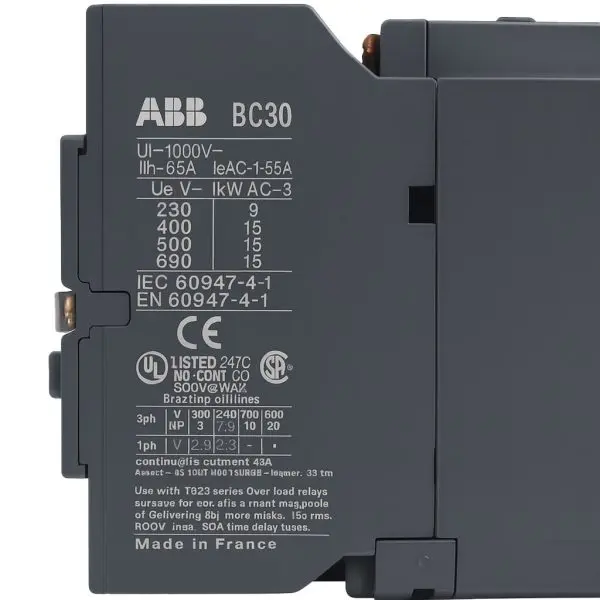

Genuine ABB BC-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | BC30-30-00 (3 NO main; “-00” = no aux contacts) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 30 A (AC-3) @ 400/415 V; thermal Ith ≈ 65 A (AC-1) |
| Rated operational power (Pe) | Up to ~15 kW @ 400/415 V (AC-3) |
| Rated operational voltage (Ue) | Up to 690 V AC (IEC); UL up to 600 V (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | 24 V DC standard; other DC voltages available by variant |
| Poles & auxiliaries | 3 main NO; 0 auxiliary fitted (add-on blocks optional) |
| Terminations | Screw clamp terminals; finger-safe housings |
| Mounting | 35 mm DIN-rail (EN 50022) or panel mount |
| Dimensions (H × W × D) | 130 mm × 80 mm × 50 mm (5.12 in × 3.15 in × 1.97 in) |
| Weight | ~0.73 kg (~1.61 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
