$364.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 690 V | 110 A | 5" | 4" | 6" | 4 lbs |
| Voltage | 690 V |
| Amp/H | 110 A |
| Length | 5" |
| Width | 4" |
| Height | 6" |
| Weight | 4 lbs |

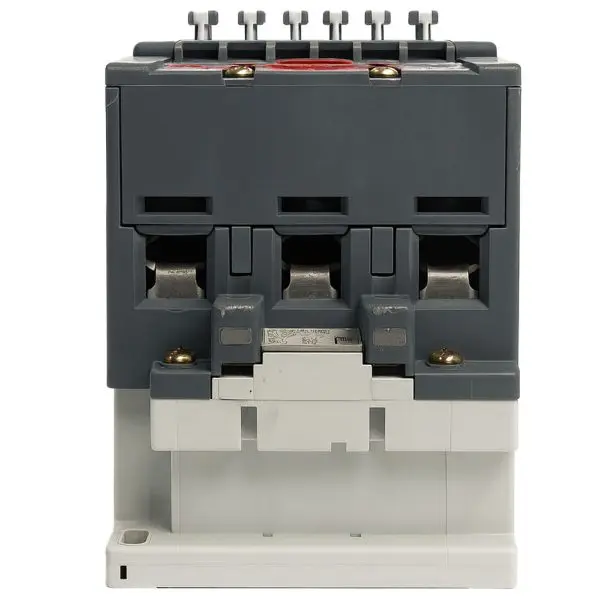

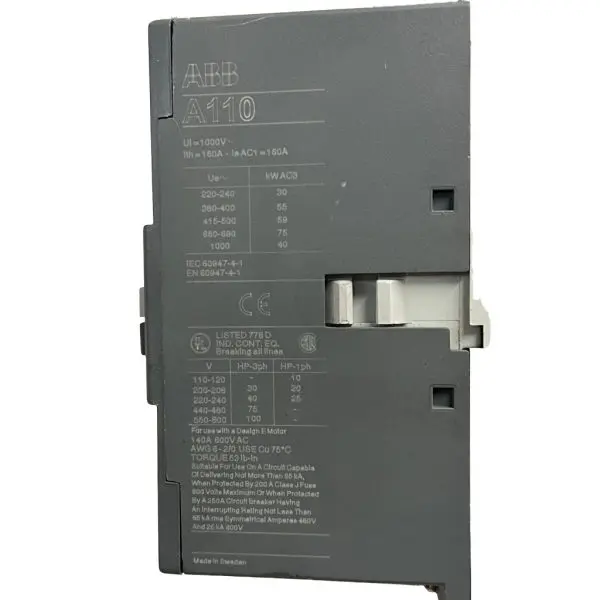

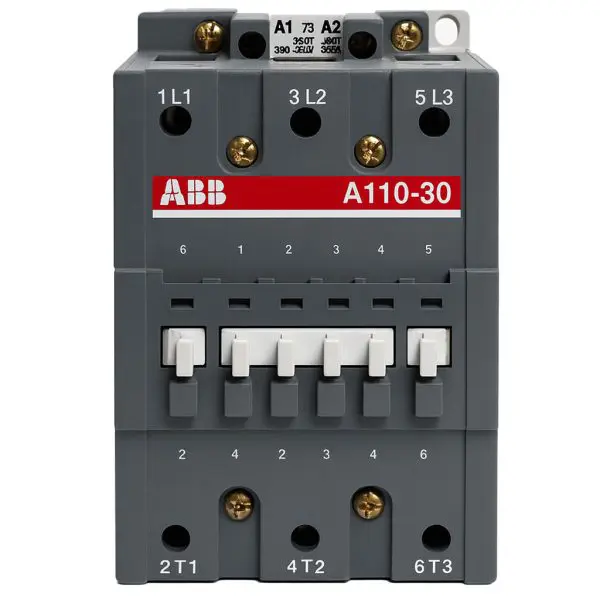

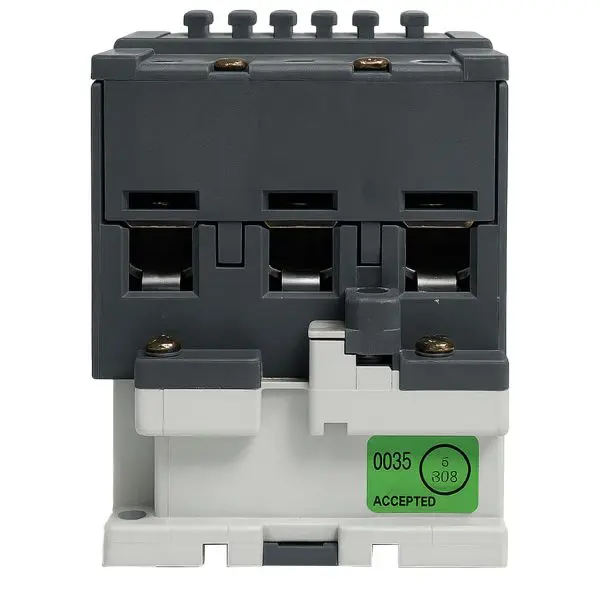

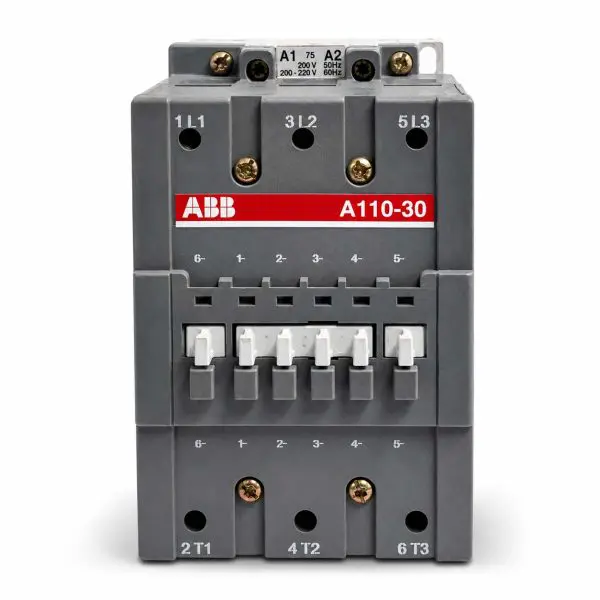

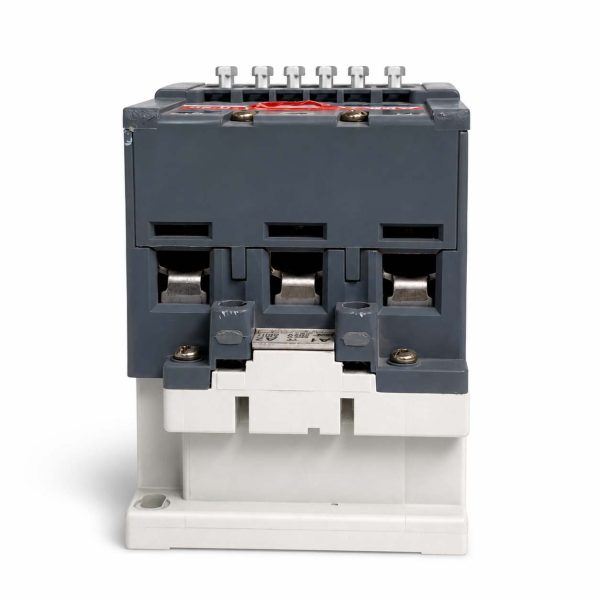

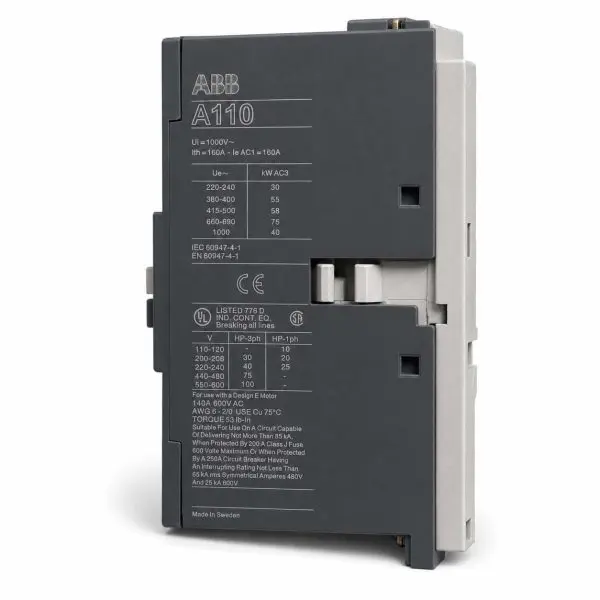

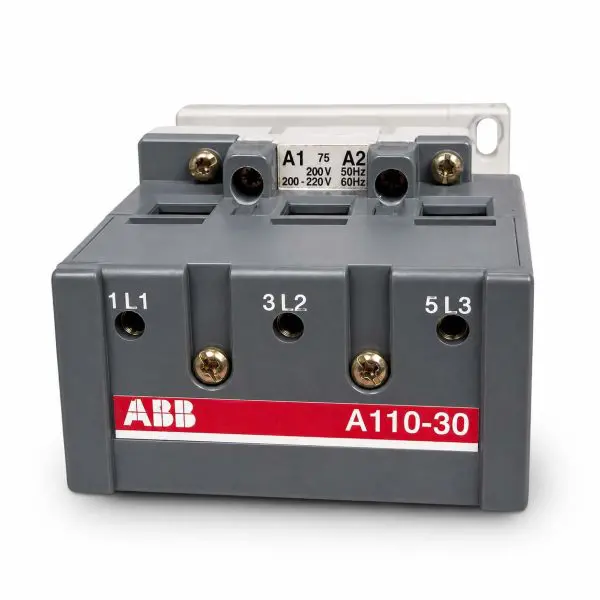

Genuine ABB A-Line contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | A110-30 (A-Series; standard build includes 1 NO + 1 NC aux) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 110 A (AC-3) motor switching, UL/CSA |
| Rated operational power (Pe) | Up to 55 kW @ 380/400 V; up to 75 kW @ 690 V (AC-3) |
| Rated operational voltage (Ue) | Up to 1000 V AC |
| Control circuit (coil) | AC coils by variant (e.g., 110–120 V AC “-84”, 220–240 V AC “-80”, 400–415/480 V AC “-51”); 50/60 Hz |
| Poles & auxiliaries | 3 main NO; 1 NO + 1 NC auxiliary fitted (typ.) |
| Terminations | Screw terminals (Cu conductors) |
| Mounting | Panel mount (A110 frame) |
| Dimensions (H × W × D) | 148 mm × 102 mm × 123.5 mm (5.83 in × 4.02 in × 4.86 in) |
| Weight | 1.8 kg (~3.97 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
