$9.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 12 V | N/A | .14 A | 3.15" | 3.15" | .98" | 1 lb |
| Voltage | 12 V |
| WPC | N/A |
| Amp/H | .14 A |
| Length | 3.15" |
| Width | 3.15" |
| Height | .98" |
| Weight | 1 lb |

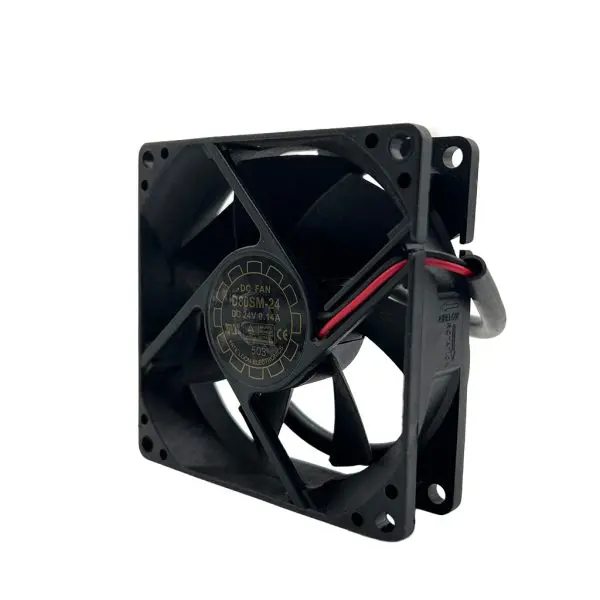

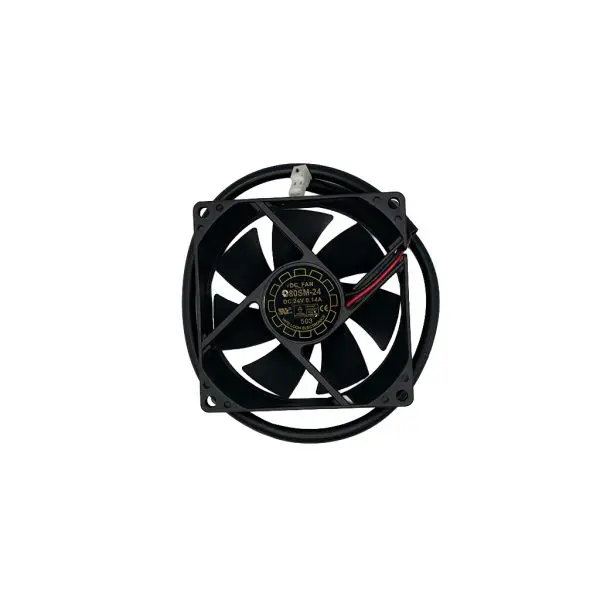

UPS cooling fan used in compact power systems. Provides directed airflow for thermal regulation of heat-sensitive components in confined chassis environments. Direct-fit service replacement with common UPS fan mounting pattern.
Designed for continuous duty, the 24 VDC axial motor supports reliable operation in data-center and industrial UPS applications.
Typical use in small to mid-frame UPS models. Factory-style wiring and footprint support fast field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new fan; unopened and covered by the manufacturer’s warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, bearings evaluated for drag; cleaned and lightly lubricated. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |

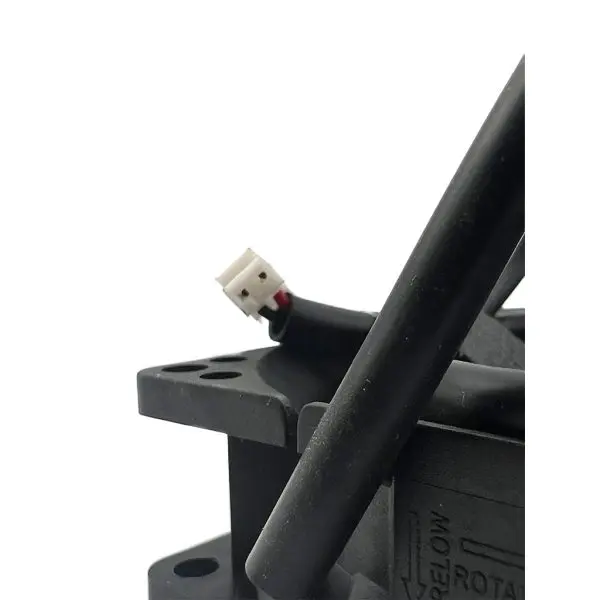

| D80SM-24 | Approx. 80 × 80 × 25 mm | 24 VDC | Axial fan (high-reliability duty) | 2- or 3-wire plug (verify harness) | UPS chassis cooling |
| Part # | Compatible Models | Notes |
| D80SM-24 | Various small/mid-frame UPS models using 80 mm 24 VDC fans | Verify connector style, lead length, and airflow direction vs. OEM part. |
