$14.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 VDC | N/A | .11 A | 3.15" | 1" | 3.15" | 1 lb |
| Voltage | 24 VDC |
| WPC | N/A |
| Amp/H | .11 A |
| Length | 3.15" |
| Width | 1" |
| Height | 3.15" |
| Weight | 1 lb |

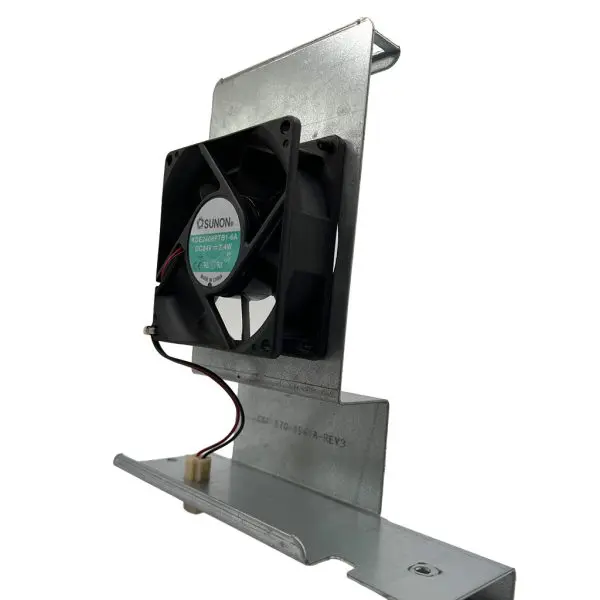

SUNON UPS cooling fan used in compact and mid-frame power systems. Provides directed airflow for thermal regulation of power components in confined chassis environments. Direct-fit service replacement with common 80 mm UPS fan mounting pattern.
Designed for continuous duty, the 24 VDC axial motor supports reliable operation in data-center and industrial UPS applications.
Typical use in small to mid-frame UPS models. Factory-style wiring and footprint support fast field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new SUNON fan; unopened and covered by the manufacturer’s warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, bearings evaluated for drag; cleaned and lightly lubricated. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |

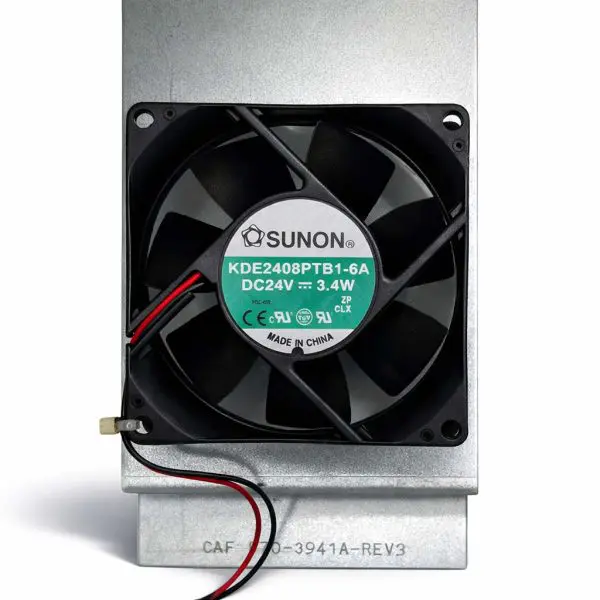

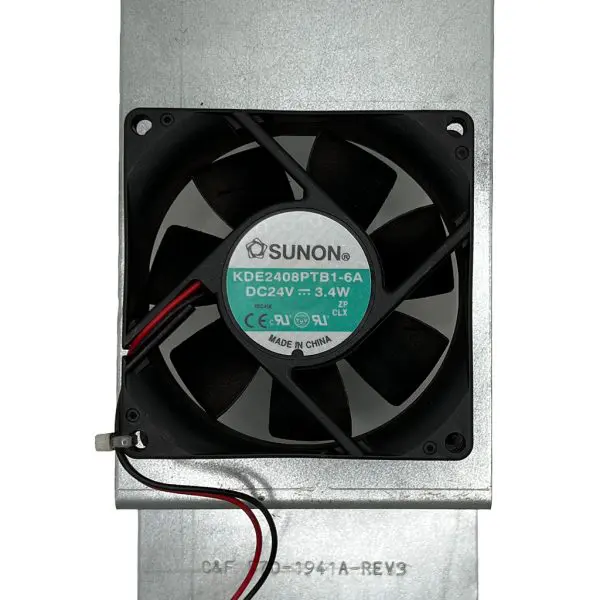

| KDE2408PTB1-6A | Approx. 80 × 80 × 25 mm | 24 VDC | Axial fan (MagLev/Sunon bearing) | 2-wire power lead (verify harness) | UPS chassis cooling |
| Part # | Compatible Models | Notes |
| KDE2408PTB1-6A | Various UPS models using 80 mm, 24 VDC SUNON fans | Verify connector style, lead length, and airflow direction vs. OEM part. |
