$31.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 230 VAC | N/A | 0.190 A | 6.77" | 1.51" | 6.77" | 1.59 lbs |
| Voltage | 230 VAC |
| WPC | N/A |
| Amp/H | 0.190 A |
| Length | 6.77" |
| Width | 1.51" |
| Height | 6.77" |
| Weight | 1.59 lbs |

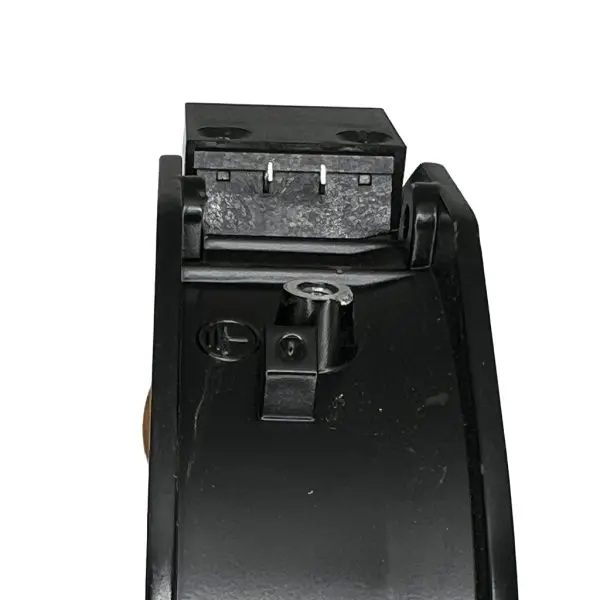

High-output MINEBEA NMB square axial DC fan for UPS power sections and inverter bays. Delivers robust cooling across rectifiers, IGBTs, transformers, and heat-sink assemblies. Direct-fit replacement with the industry-standard 150 mm square mounting pattern.
5915PC-23T-B30-A00 denotes the 150 mm frame series with tach output (T) for RPM monitoring and a performance “B30” build. Please verify your unit’s rated voltage, connector, and lead count on the nameplate before ordering.
Removed from a functioning UPS, cleaned, inspected, and bench-tested for stable RPM and current draw.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new NMB/NMB-MAT fan; unopened and covered by manufacturer warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed; current draw and bearing noise checked; cleaned and leads/connector inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow Class | Bearing / Leads | Application |
| 5915PC-23T-B30-A00 | Approx. 150 × 150 × 50 mm (5.91″ × 5.91″ × 1.97″) | DC (per nameplate) — verify rated V and polarity | High-output axial DC fan (150 mm class) | Ball-bearing; 3-wire with tach (T) — verify harness/pinout | UPS chassis / inverter bay / cabinet intake or exhaust |
| Part # | Compatible Models | Notes |
| 5915PC-23T-B30-A00 | UPS systems using 150 mm DC axial fans with tach lead | Verify airflow direction, mounting pattern, and connector/lead count vs. OEM part. |
