$34.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 115 VAC | N/A | 0.38 A | 5.91" | 1.50" | 6.77" | 1.76 lbs |
| Voltage | 115 VAC |
| WPC | N/A |
| Amp/H | 0.38 A |
| Length | 5.91" |
| Width | 1.50" |
| Height | 6.77" |
| Weight | 1.76 lbs |

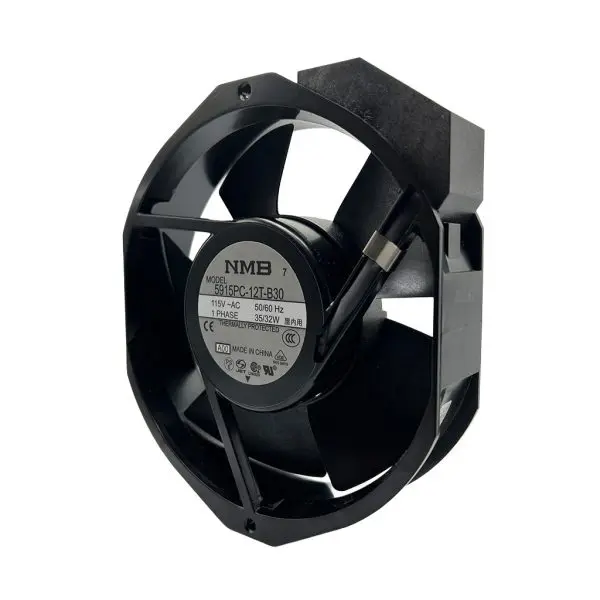

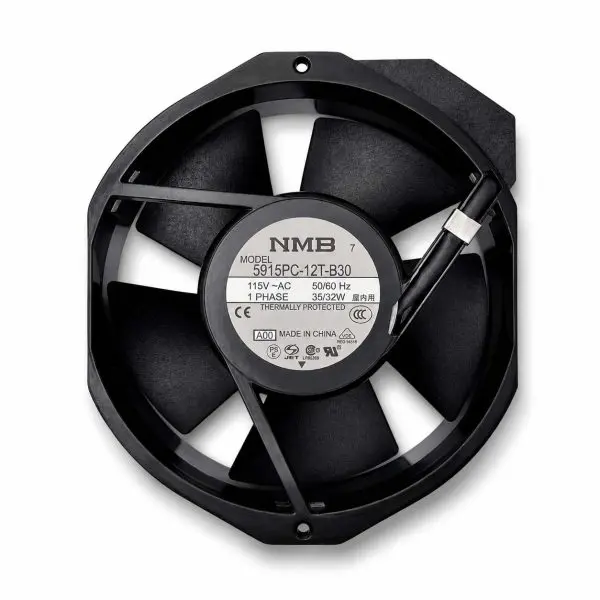

The Minebea NMB 5915PC-12T-B30-A00 is a high-performance UPS axial cooling fan designed for reliable airflow in critical power systems. This tested and certified NMB-MAT fan delivers stable cooling for UPS rectifiers, inverter bays, IGBTs, heat-sink assemblies, and transformer sections. With its industry-standard 150 mm square frame, it serves as a direct-fit replacement for many UPS and power-conditioning systems.

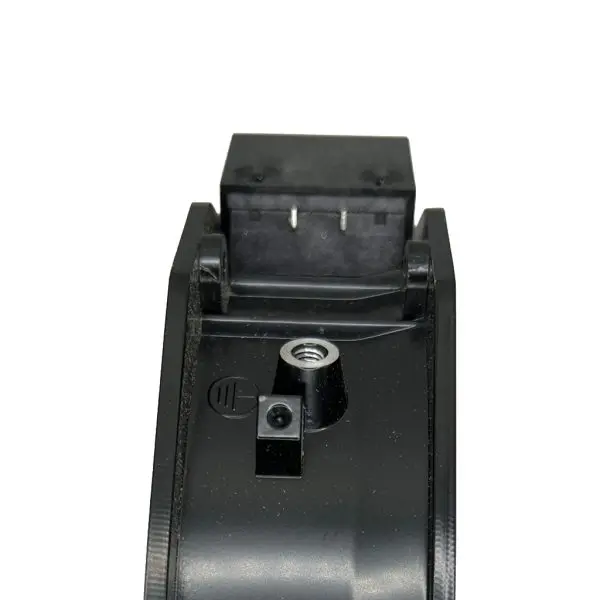

The model code 5915PC-12T-B30-A00 identifies the 150 mm frame series with a tachometer output (T) for RPM monitoring, a B30 performance rating, and a 12 VDC configuration. Always verify connector style and lead count with your existing UPS fan assembly before ordering to ensure compatibility.
Every unit offered by Gruber Power Services is removed from a functioning UPS system, thoroughly cleaned, inspected, and bench-tested for proper electrical performance. Testing includes RPM stability, bearing condition, voltage/current draw, and noise evaluation to confirm dependable operation.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new NMB/NMB-MAT fan; unopened and covered by manufacturer warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed; current draw and bearing noise checked; cleaned and leads/connector inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow Class | Bearing / Leads | Application |
| 5915PC-12T-B30-A00 | Approx. 150 × 150 × 50 mm (5.91″ × 5.91″ × 1.97″) | 12 V DC | High-output axial DC fan (150 mm class) | Ball-bearing; 3-wire with tach (T) — verify harness/pinout | UPS chassis / inverter bay / cabinet intake or exhaust |
| Part # | Compatible Models | Notes |
| 5915PC-12T-B30-A00 | UPS systems using 150Â mm 12Â VDC axial fans with tach lead | Verify airflow direction, mounting pattern, and connector/lead count vs. OEM part. |
