$39.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 VDC | 0.40 A | 4.69" | 1.50" | 4.69" | 0.57 lbs |
| Voltage | 24 VDC |
| Amp/H | 0.40 A |
| Length | 4.69" |
| Width | 1.50" |
| Height | 4.69" |
| Weight | 0.57 lbs |

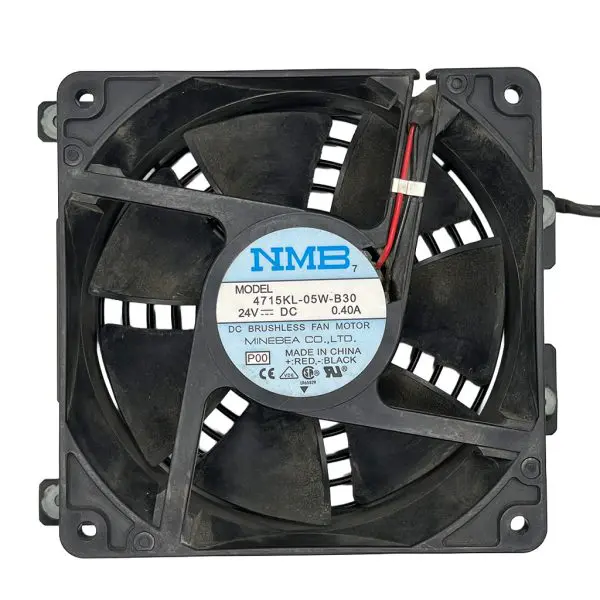

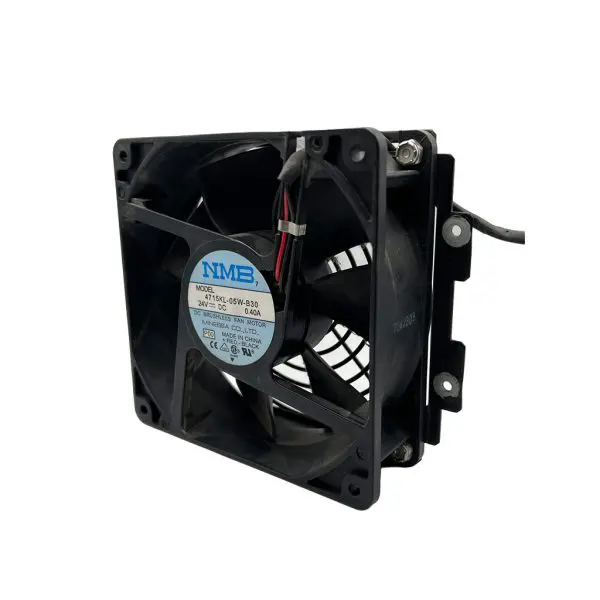

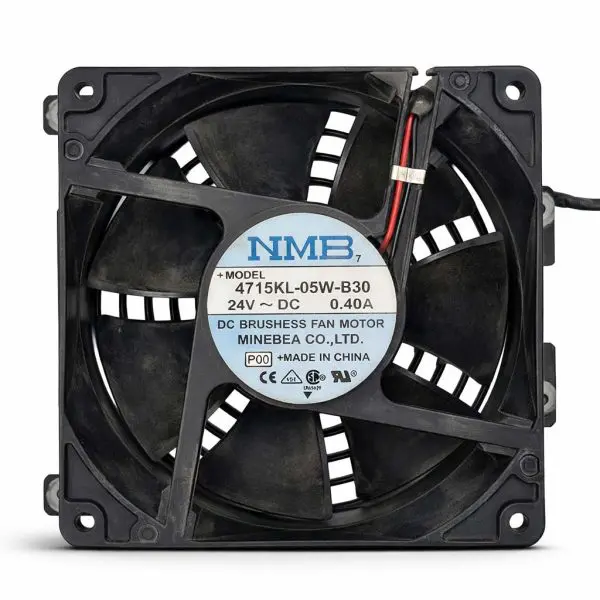

MINEBEA NMB 120 mm brushless DC cooling fan commonly used in UPS inverter bays and power drawers. Delivers dependable airflow across rectifiers, IGBTs, transformers, and heat-sink assemblies. Direct-fit replacement using the standard 120 mm square mounting pattern.

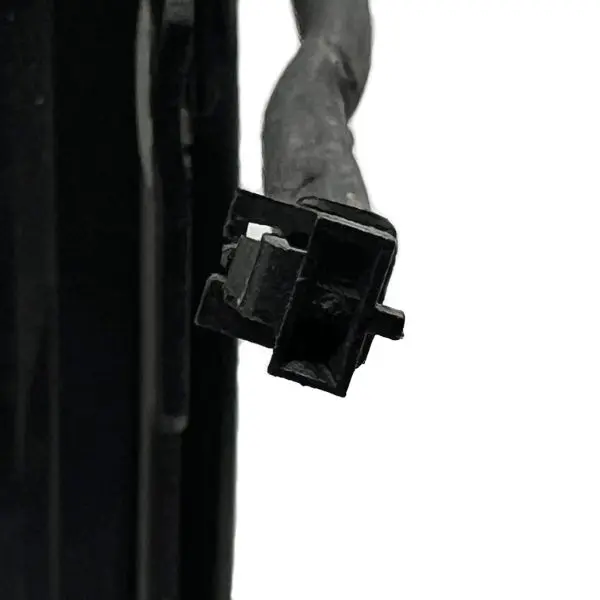

4715KL-05W-B30-P00 is a 120 × 38 mm, ball-bearing 12 VDC variant in the KL series. “B30” indicates a balanced performance build; “P00” designates a basic lead set (typically 2-wire, no tach). Please verify voltage, connector, and lead count against your OEM part before ordering.
Removed from a functioning UPS, cleaned, inspected, and bench-tested for smooth rotation, stable RPM, and proper current draw.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new NMB/NMB-MAT fan; unopened and covered by manufacturer warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed; current draw and bearing noise checked; cleaned and connector/leads inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow Class | Bearing / Leads | Application |
| 4715KL-05W-B30-P00 | Approx. 120 × 120 × 38 mm (4.72″ × 4.72″ × 1.50″) | 12 V DC | High-output axial DC fan (120 mm class) | Ball-bearing; typically 2-wire (no tach) — verify harness/pinout | UPS chassis / inverter bay / cabinet intake or exhaust |
| Part # | Compatible Models | Notes |
| 4715KL-05W-B30-P00 | UPS systems using 120 mm 12 VDC axial fans (2-wire) | Verify airflow direction, mounting pattern, and connector/lead count vs. OEM part. |
