$19.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 12 VDC | 0.43 A | 4.69" | 1.50" | 4.69" | 0.57 lbs |
| Voltage | 12 VDC |
| Amp/H | 0.43 A |
| Length | 4.69" |
| Width | 1.50" |
| Height | 4.69" |
| Weight | 0.57 lbs |

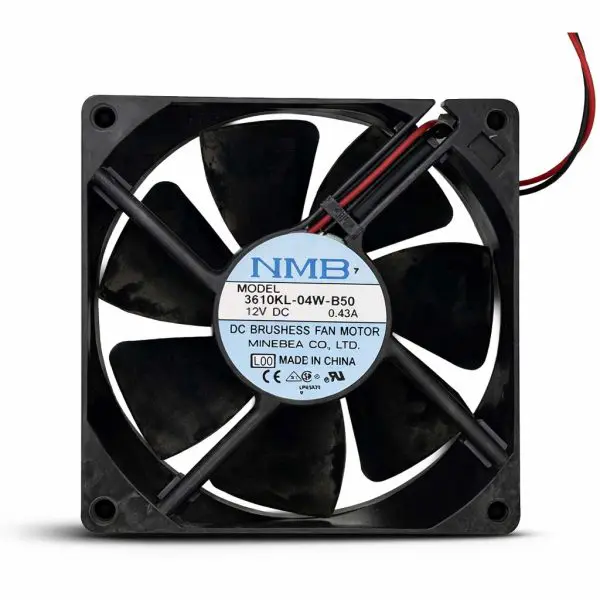

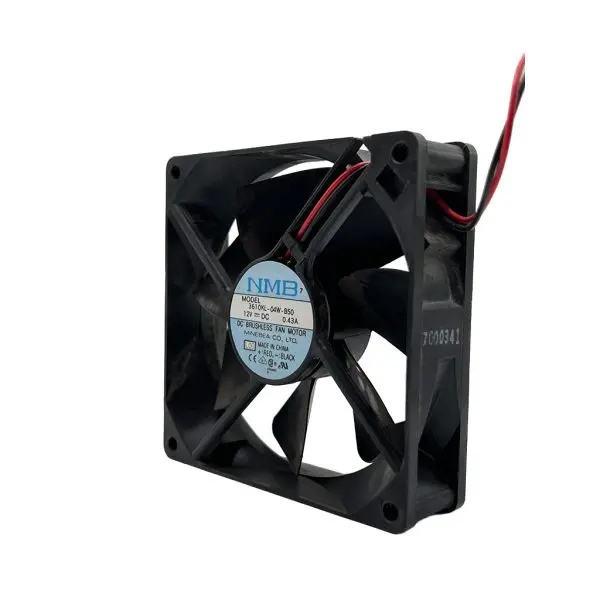

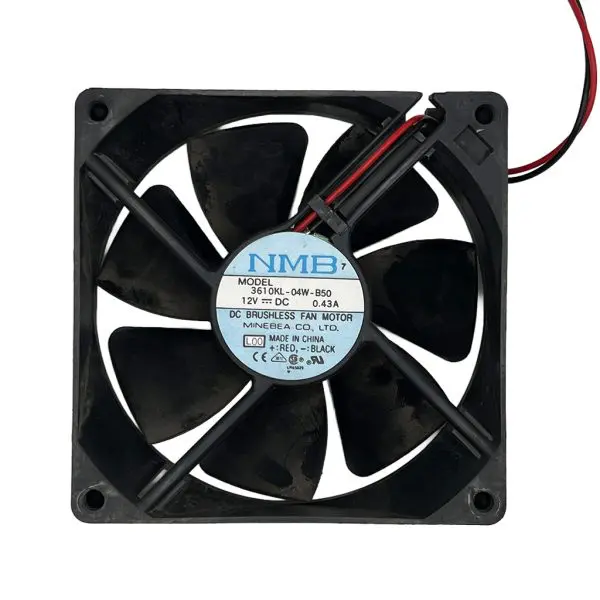

MINEBEA NMB 92 mm brushless DC cooling fan for UPS inverter bays, logic bays, and power drawers. Provides focused airflow across rectifiers, IGBTs, transformers, and heat-sink assemblies. Direct-fit replacement using the standard 92 mm square mounting pattern.

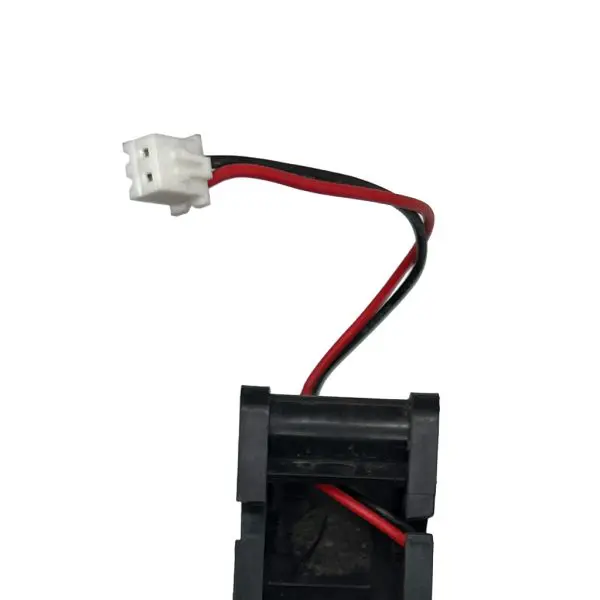

3610KL-04W-B50-L00 is a 92 × 92 × 25 mm, ball-bearing DC fan. “B50” indicates a higher-performance build; “L00” denotes a lead-wire version (commonly 2-wire, no tach). Please verify voltage, connector, and lead count against your OEM part before ordering.
Removed from a functioning UPS, cleaned, inspected, and bench-tested for smooth rotation, stable RPM, and proper current draw.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new NMB/NMB-MAT fan; unopened and covered by manufacturer warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed; current draw and bearing noise checked; cleaned and connector/leads inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow Class | Bearing / Leads | Application |
| 3610KL-04W-B50-L00 | Approx. 92 × 92 × 25 mm (3.62″ × 3.62″ × 1.00″) | 12 V DC — verify on nameplate | High-output axial DC fan (92 mm class) | Ball-bearing; lead-wire version (L00), typically 2-wire — verify pinout | UPS chassis / inverter bay / cabinet intake or exhaust |
| Part # | Compatible Models | Notes |
| 3610KL-04W-B50-L00 | UPS systems using 92 mm 12 VDC axial fans (lead-wire type) | Verify airflow direction, mounting pattern, and connector/lead count vs. OEM part. |
