$16.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 V | N/A | N/A | 3.15" | 0.98" | 3.15" | 1.2 lbs |
| Voltage | 24 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 3.15" |
| Width | 0.98" |
| Height | 3.15" |
| Weight | 1.2 lbs |

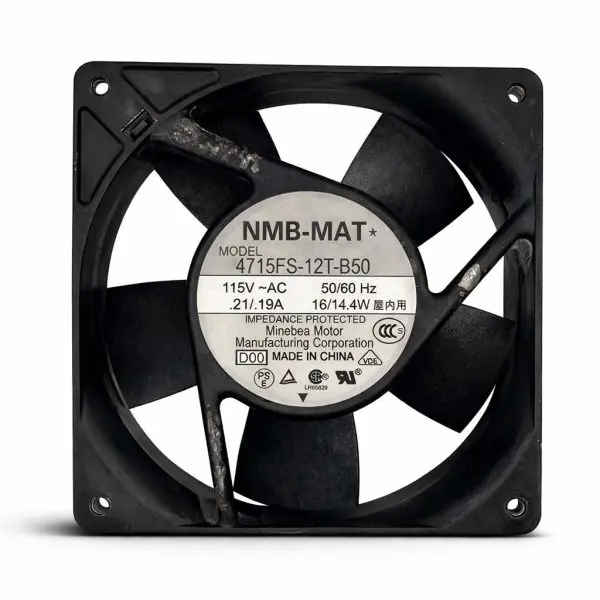

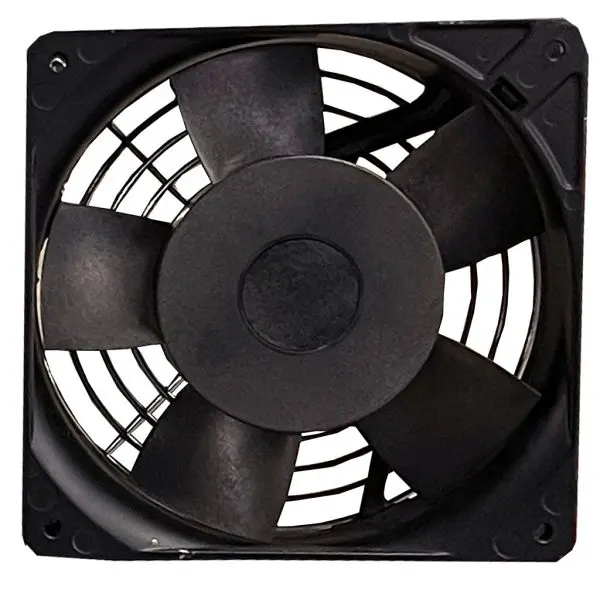

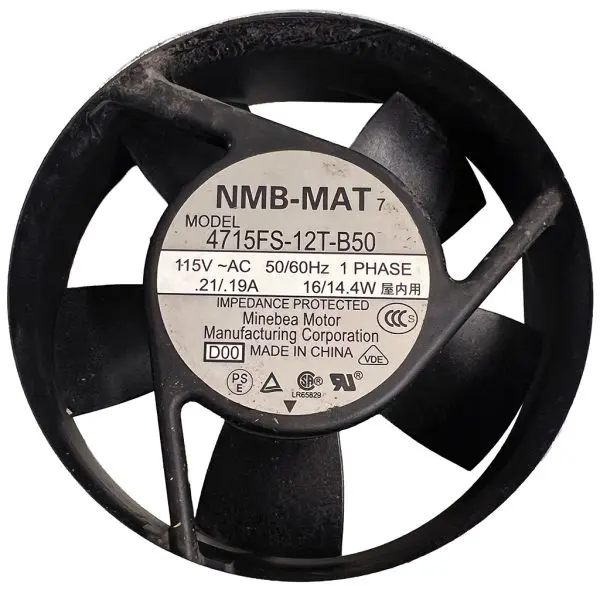

Axial fan from NMB-MAT (MinebeaMitsumi) for UPS and industrial electronics cooling. Direct-fit replacement when the 4715FS-12T-B50 model is specified, using the standard 120 mm frame and lead-wire interface.
Built for continuous duty with stable airflow and long-life bearings to keep power components within operating temperature range.

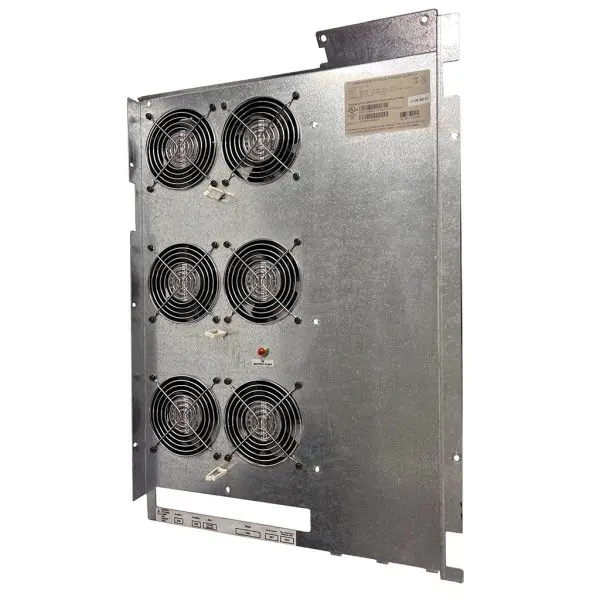

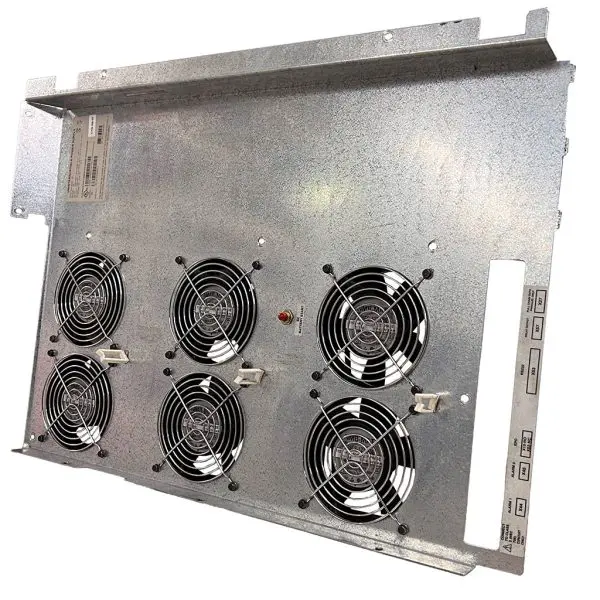

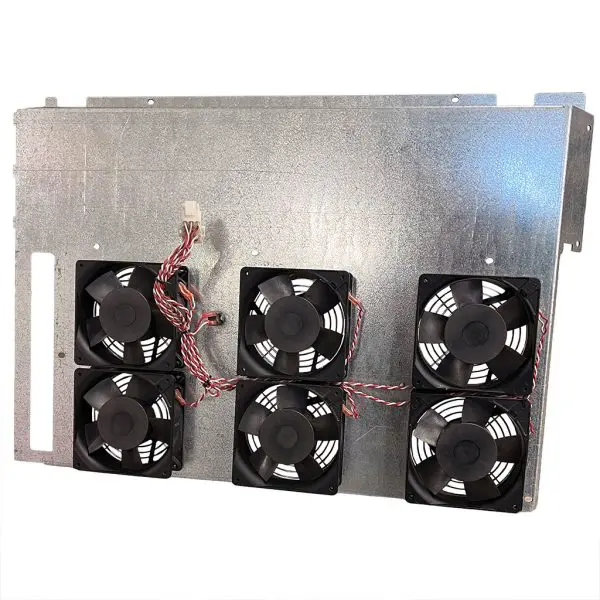

Common in UPS and power-conversion chassis requiring 120 × 120 × 38 mm AC axial fans.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine NMB-MAT fan — factory-sealed and covered by manufacturer warranty. |
1-Year
|
| Tested | Operationally verified pull from a working system; bearings inspected, cleaned, and rotation/airflow confirmed. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Power | Connector | Application |
| 4715FS-12T-B50 | ≈ 4.72 × 1.50 × 4.72in | 115 V AC, 50/60 Hz | ≈ 105–115 CFM | ≈ 23–27 W | Lead wires / terminals | UPS / electronics cooling |
| Part # | Compatible Models / Use Cases | Notes |
| 4715FS-12T-B50 | UPS, inverter, and control chassis requiring a 120 mm (4.72 in) AC axial fan | Confirm mounting hole spacing and 115 V AC supply; FS series, “B50” airflow grade. |
