$1,599.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 20.4" | 7.9" | 20.4" | 22 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 20.4" |
| Width | 7.9" |
| Height | 20.4" |
| Weight | 22 lbs |

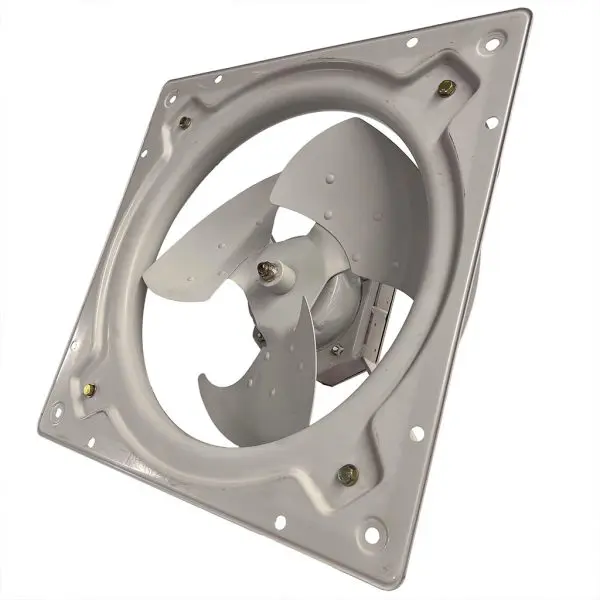

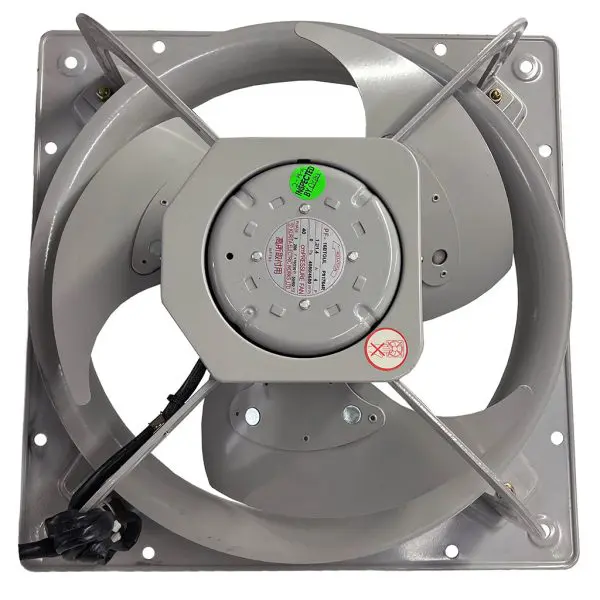

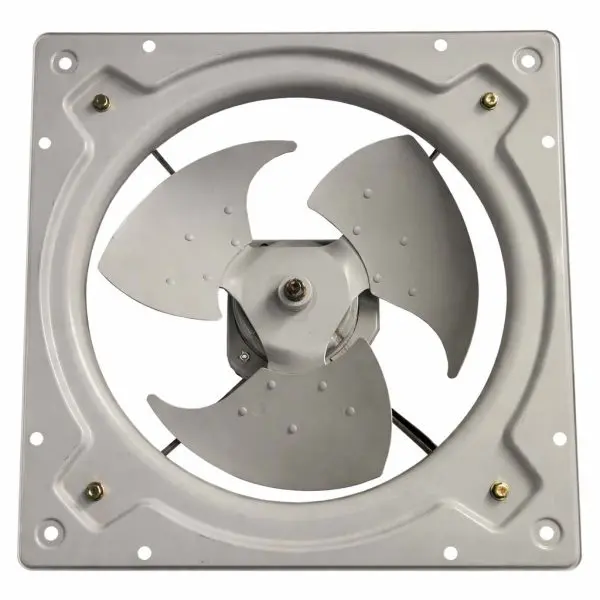

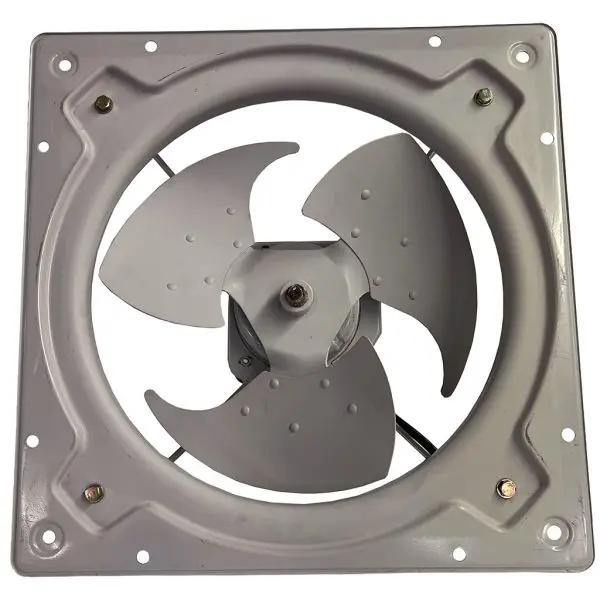

Centrifugal pressure fan from Kurita Electric used in large UPS and industrial power systems. Direct-fit replacement when the PF-16BTGUL (sub-code P81764R) is specified.
Three-phase AC motor designed for continuous duty, delivering strong static pressure and high-volume flow for inverter/rectifier enclosures.
Common in Mitsubishi/Toshiba-class UPS cabinets and similar high-load applications.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Genuine Kurita Electric fan — factory-sealed; covered by manufacturer warranty. |
1-Year
|
| Tested | Operationally verified pull; rotation, current draw, and bearings checked; cleaned and ready to install. |
90-Day
|
| Part # | Dimensions | Voltage | Power | Airflow | Connector | Application |

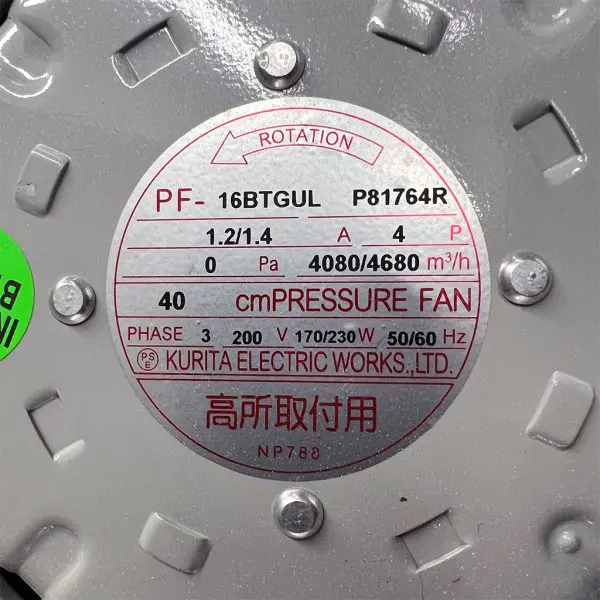

| PF-16BTGUL (P81764R) | ≈ 20.4 × 7.9 × 20.4 in | 200 V AC, 3-Phase, 50/60 Hz | ≈ 170 / 230 W (50 / 60 Hz) | ≈ 4,080 / 4,680 m³/h (50 / 60 Hz) | Terminal block / lead wiring | UPS / inverter cabinet pressure ventilation |
| Part # | Compatible Applications | Notes |
| PF-16BTGUL (P81764R) | Large UPS systems, inverter/rectifier cabinets, and high-pressure ventilation bays | Centrifugal “pressure fan” type; verify mounting footprint and rotation direction before install. |
