$149.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 22" | 9" | 13" | 10 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 22" |
| Width | 9" |
| Height | 13" |
| Weight | 10 lbs |

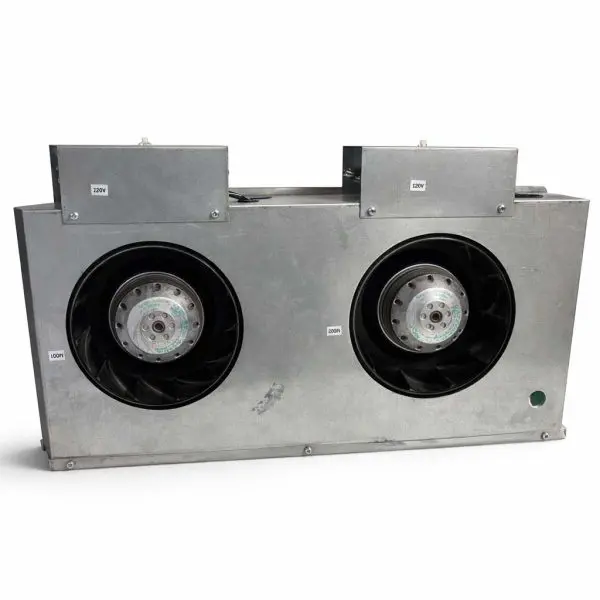

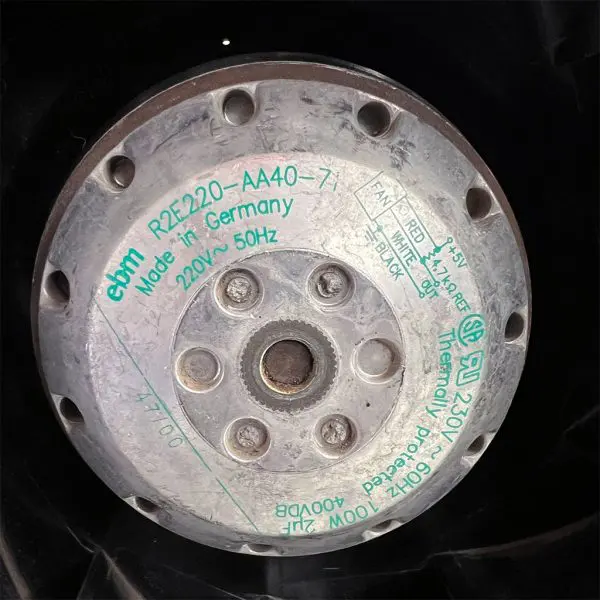

High-performance backward-curved centrifugal blower from EBM / ebm-papst, model R2E220-AA40-71, used in UPS cabinets, rectifier bays, and industrial enclosures where a 230 V AC radial fan is required to move air through a duct or scroll housing.
This unit uses a high-efficiency AC motor and backward-curved impeller to provide strong static pressure and continuous-duty airflow for cooling transformers, power modules, and densely packed electronics in mission-critical power systems.
The integrated scroll housing is designed to bolt into OEM cutouts and match the original EBM R2E220-series blower used by many UPS manufacturers.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine EBM R2E220-AA40-71 blower — factory-fresh or new-old-stock; OEM-grade AC centrifugal fan for UPS and industrial power-electronics cooling. |
1-Year
|
| Tested | Operationally verified pull from a functioning UPS or power system; rotation, noise level, and current draw checked; fan cleaned and wiring / terminals inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| R2E220-AA40-71 | ≈ 8.7 in diameter × 4.0 in deep | 230 V AC, 50/60 Hz (see label for rated amps / watts) | High-airflow 220 mm backward-curved centrifugal fan (CFM / pressure per OEM datasheet) | AC leads or terminal block (depends on OEM configuration) | UPS / rectifier / industrial power-electronics cabinet cooling |
| Part # | Compatible Models | Notes |
| R2E220-AA40-71 | UPS systems, rectifier cabinets, and industrial enclosures specifying EBM / ebm-papst R2E220-AA40-71 or another 220 mm centrifugal blower with similar housing and outlet geometry | Verify by exact P/N, 230 V rating, rotation direction, airflow / pressure, mounting pattern, and connector style before substituting in an OEM assembly. |
