$19.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 V | N/A | N/A | 3.15" | 1" | 3.15" | 0.8 lbs |
| Voltage | 24 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 3.15" |
| Width | 1" |
| Height | 3.15" |
| Weight | 0.8 lbs |

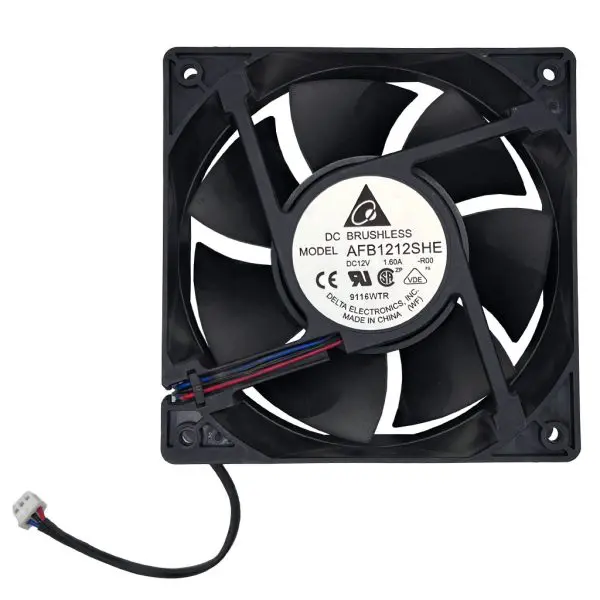

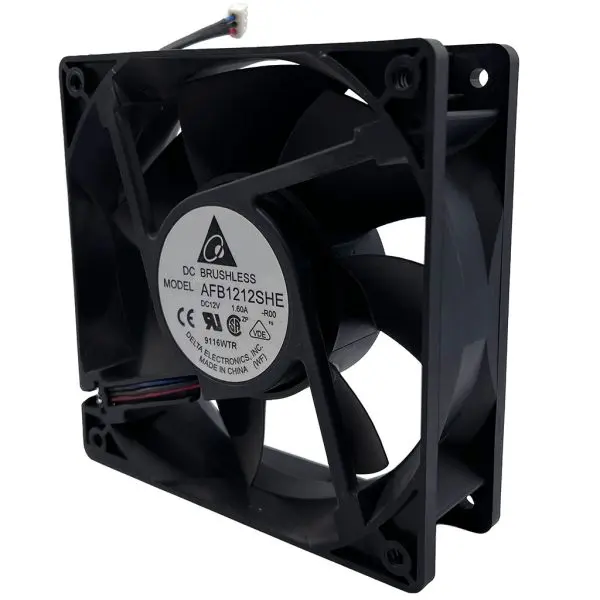

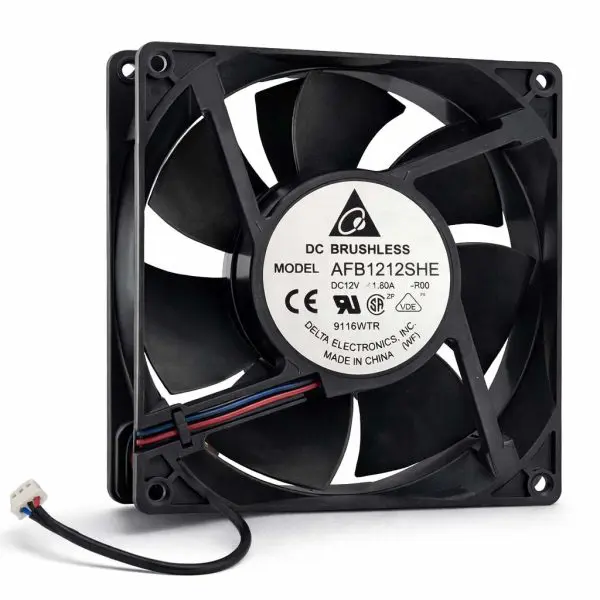

High-performance DC axial fan from Delta Electronics, model AFB1212SHE, commonly used in UPS cabinets, rectifier bays, and industrial equipment that need a high-output 12 V DC 120 mm fan.
This “super high speed” ball-bearing fan is built for continuous duty in power electronics, providing strong static pressure and airflow to keep transformers, heat sinks, and control boards within their safe operating temperature range.
The square 4.7 in frame and 1.5 in depth match the standard 120 mm × 38 mm footprint, making this a drop-in replacement wherever AFB1212SHE or an equivalent 120 mm 12 V DC fan is specified.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine Delta AFB1212SHE fan — factory-fresh or new-old-stock; OEM-grade 12 V DC axial fan for UPS, servers, and power-electronics cooling. |
1-Year
|
| Tested | Operationally verified pull from a functioning system; rotation, noise level, and current draw checked; fan cleaned and DC leads / connector inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| AFB1212SHE | 4.7 in × 4.7 in × 1.5 in | 12 V DC (high-speed model – see label for rated current) | High-airflow 120 mm axial fan (CFM per OEM datasheet) | DC leads / connector as supplied (check polarity and pinout) | UPS / server / power-electronics cabinet cooling |
| Part # | Compatible Models | Notes |
| AFB1212SHE | UPS systems, servers, and power enclosures specifying Delta AFB1212SHE or an equivalent 4.7 in square, 1.5 in deep 12 V DC axial fan | Verify by exact P/N, frame size, 12 V rating, airflow class, mounting-hole pattern, and lead / connector style before substituting in an OEM assembly. |
