$59.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 V | N/A | N/A | 17" | 6.5" | 5.3" | 6 lbs |
| Voltage | 24 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 17" |
| Width | 6.5" |
| Height | 5.3" |
| Weight | 6 lbs |

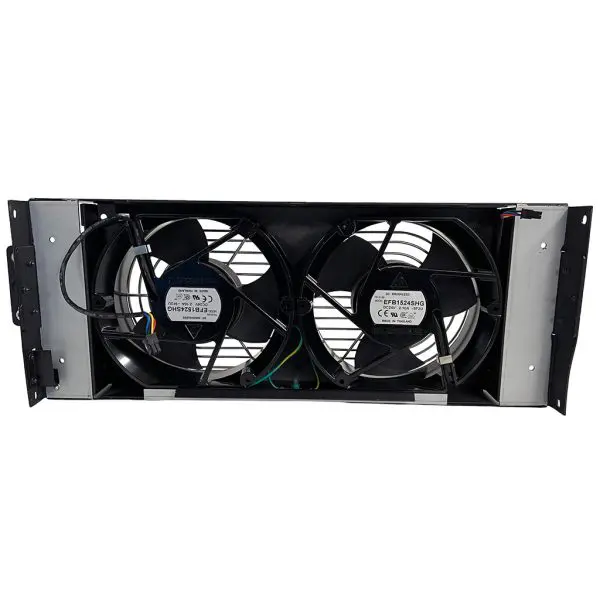

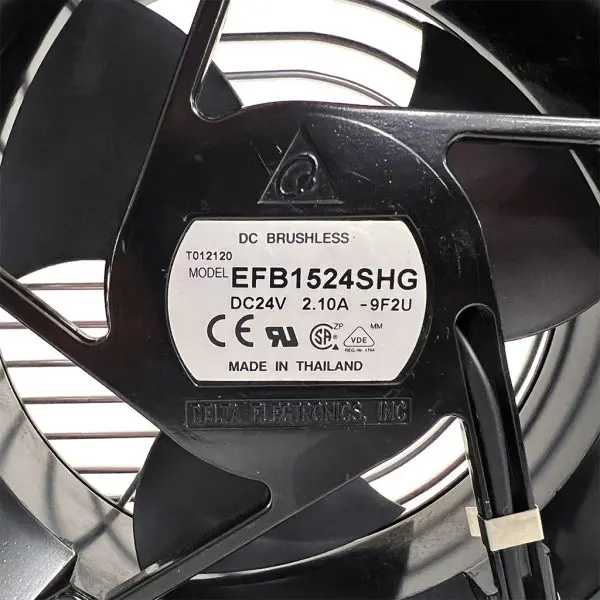

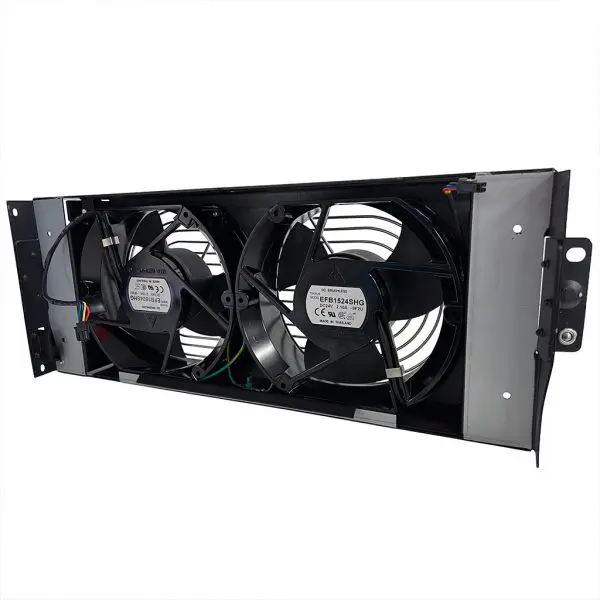

High-performance DC tubeaxial fan from Delta Electronics, model EFB1524SHG, commonly used in UPS cabinets, power systems, and industrial enclosures where a high-CFM 24Â V DC fan is required.
This ball-bearing fan is rated for 24 V DC at around 1.17 A (≈ 28.1 W), spinning at approximately 4300 RPM and delivering about 325 CFM to keep transformers, rectifiers, and power electronics within their safe operating temperature range.
The rectangular-with-rounded-ends frame matches a standard 6.8 in × 5.9 in × 2.0 in 172 mm-class footprint with 2-wire leads, making it a direct replacement wherever EFB1524SHG is specified in UPS or industrial cooling applications.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine Delta EFB1524SHG fan — factory-fresh or new-old-stock; OEM-grade 24 V DC tube axial fan for UPS, power systems, and industrial cabinet cooling. |
1-Year
|
| Tested | Operationally verified pull from a functioning UPS or power system; rotation, noise level, and current draw checked; fan cleaned and DC leads inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| EFB1524SHG | 6.8 in × 5.9 in × 2.0 in | 24 V DC, ≈ 1.17 A (≈ 28.1 W) | 325 CFM @ 0 in. static pressure (≈ 4300 RPM) | 2-wire DC leads (ball-bearing fan) | UPS / industrial power / electronics cabinet cooling |
| Part # | Compatible Models | Notes |
| EFB1524SHG | UPS systems, rectifier cabinets, and industrial enclosures specifying Delta EFB1524SHG or an equivalent 6.8 × 5.9 × 2.0 in 24 V DC axial fan | Verify by exact P/N, frame size, 24 V rating, CFM, mounting hole pattern, and lead style before substituting in an OEM assembly. |
