$99.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 V | N/A | N/A | 6.8" | 5.9" | 2.0" | 2.2 lbs |
| Voltage | 24 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 6.8" |
| Width | 5.9" |
| Height | 2.0" |
| Weight | 2.2 lbs |

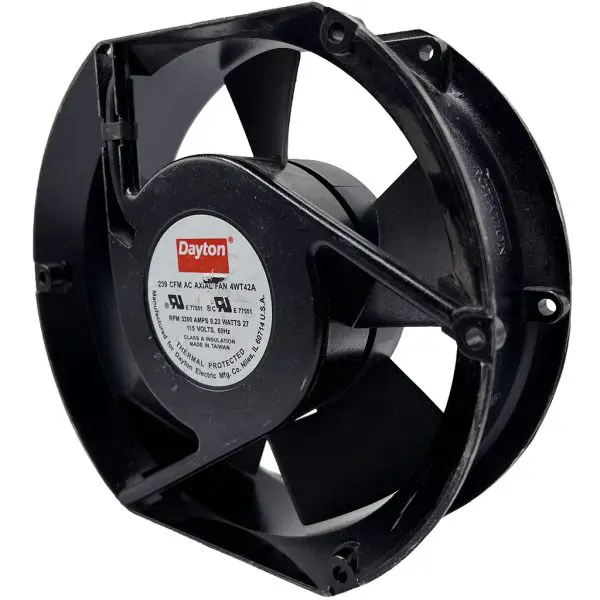

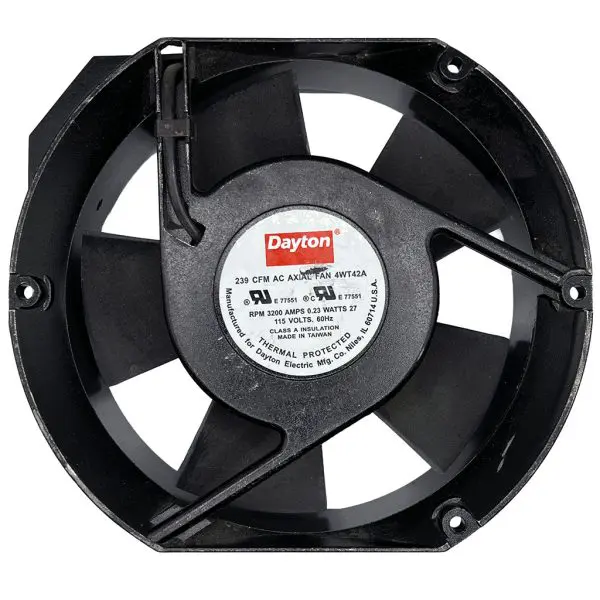

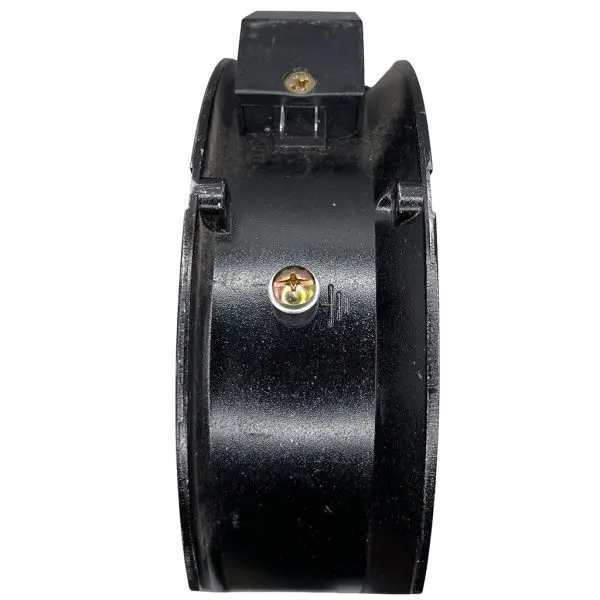

Heavy-duty oblong AC axial fan from DAYTON, model 4WT42A, commonly used in UPS cabinets, larger control panels, and industrial equipment where a higher-CFM 115Â V cooling fan is required.
This fan delivers approximately 239Â CFM at around 3200Â RPM and is rated for 115Â VÂ AC, providing strong, continuous-duty airflow for power electronics and enclosure cooling.
The oblong frame (taller than it is wide) and standard mounting pattern make this a direct-fit replacement wherever DAYTON 4WT42A or an equivalent 115Â V AC axial fan is specified.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine DAYTON 4WT42A fan — factory-fresh or new-old-stock; OEM-grade AC axial fan for UPS, control panels, and electronics cooling. |
1-Year
|
| Tested | Operationally verified pull from a functioning system; rotation, noise level, and current draw checked; fan cleaned and terminals inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| 4WT42A | 6.8 in × 5.9 in × 2.0 in | 115 V AC, 50/60 Hz, ≈ 0.23 / 0.22 A (≈ 27 / 25 W) | 239 CFM @ 0 in. static pressure | Terminals (AC axial fan connection) | UPS / control panel / industrial equipment cooling |
| Part # | Compatible Models | Notes |
| 4WT42A | UPS systems, control panels, and equipment enclosures specifying DAYTON 4WT42A or an equivalent 6.8 × 5.9 × 2.0 in 115 V AC axial fan | Verify by exact P/N, frame size, 115 V rating, CFM, mounting hole pattern, and terminal style before substituting in an OEM assembly. |
