$99.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 24 V | N/A | N/A | 6.7" | 5.9" | 2.0" | 2 lbs |
| Voltage | 24 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 6.7" |
| Width | 5.9" |
| Height | 2.0" |
| Weight | 2 lbs |

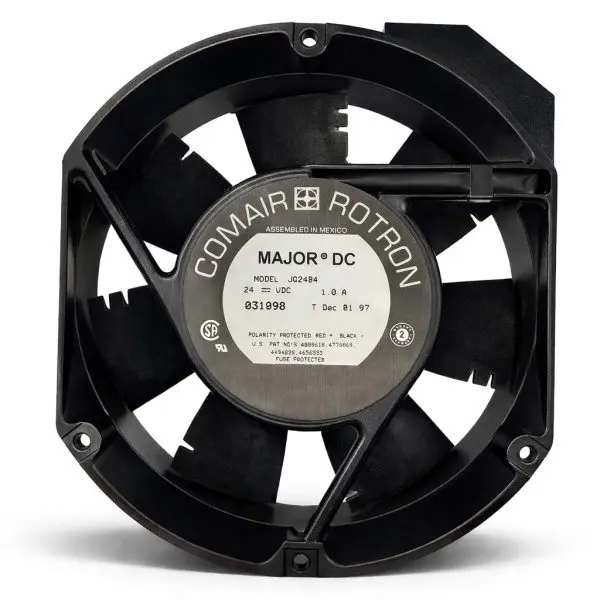

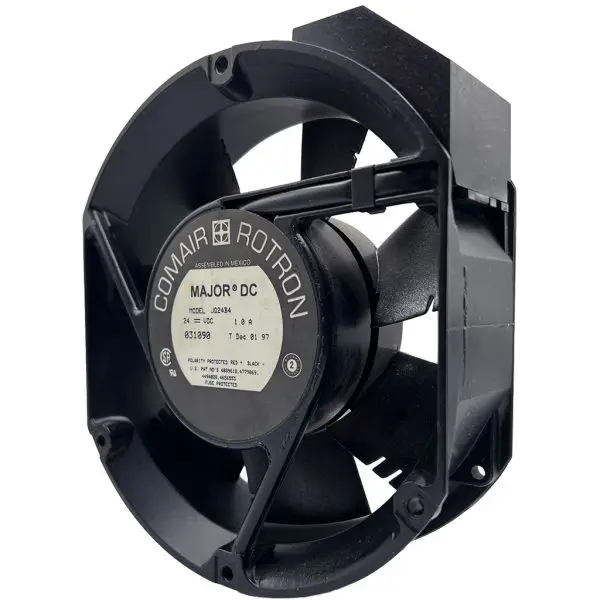

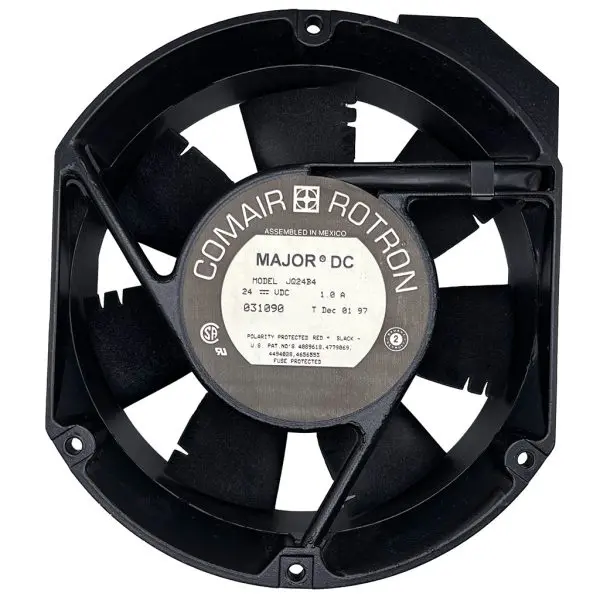

High-performance DC tubeaxial fan from COMAIR ROTRON, Major DC series, model JQ24B4. Commonly used in UPS, power electronics, and industrial cabinets that require a 24 V DC 172 mm-class fan for main system cooling.
Rated for 24Â VÂ DC, ~1.0Â A, 24Â W, this ball-bearing fan delivers strong airflow (around 235Â CFM) and static pressure at approximately 3400Â RPM, helping keep transformers, rectifiers, and switching hardware within their safe operating temperature range.

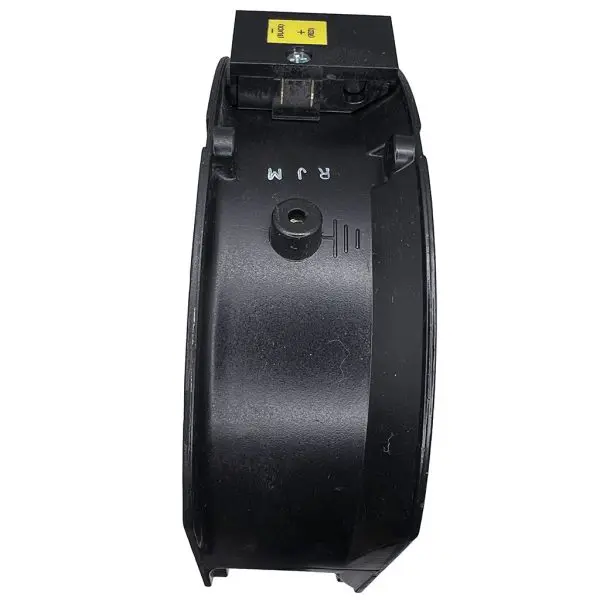

Mechanical format matches the standard 171.5 × 150.4 × 50.8 mm (≈ 6.75 × 5.92 × 2.00 in) Major DC footprint with 2-terminal termination, making it a direct drop-in where JQ24B4 / 19031090A / 031090 is specified.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine COMAIR ROTRON Major DC JQ24B4 fan (P/N 19031090A / 031090) — factory-fresh or new-old-stock; supplied as an OEM-grade DC system fan for UPS and industrial service. |
1-Year
|
| Tested | Operationally verified pull from a functioning UPS or industrial system; rotation, noise level, and current draw checked; fan cleaned and terminals inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| Major DC — JQ24B4 (19031090A / 031090) | 171.5 × 150.4 × 50.8 mm (≈ 6.7 × 5.9 × 2.0 in) | 24 V DC | ≈ 235 CFM (high-airflow Major DC axial fan) | 2 terminals (ball-bearing DC fan) | UPS / power electronics / industrial cabinet cooling |
| Part # | Compatible Models | Notes |
| JQ24B4 (Major DC) | UPS, power systems, and industrial enclosures specifying COMAIR ROTRON Major DC JQ24B4 / 19031090A / 031090 24 V fan or equivalent 172 mm 24 V DC tubeaxial unit | Verify by exact P/N, frame size, 24 V rating, airflow, mounting pattern, and terminal style before substituting in an OEM assembly. |
