$42.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 3.6" | 0.98" | 3.6" | 0.20 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 3.6" |
| Width | 0.98" |
| Height | 3.6" |
| Weight | 0.20 lbs |

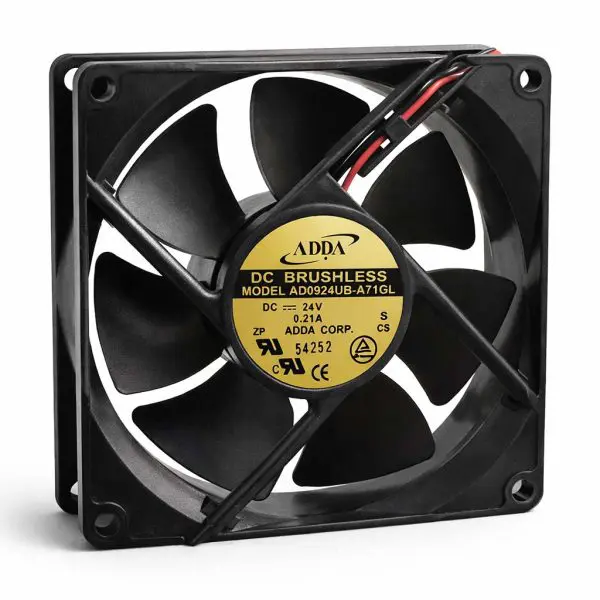

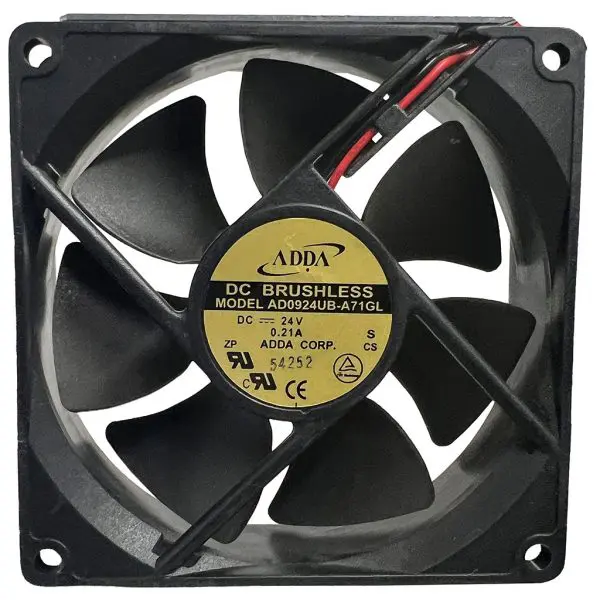

High-performance axial fan from ADDA, model AD0924UB-A71GL, commonly used in UPS, inverter, and industrial power electronics for cabinet and chassis cooling. Direct-fit drop-in replacement where this 92 mm 24 V DC fan is specified.
This 92 × 92 × 25 mm ultra/high-speed fan uses a double ball bearing system and is designed for continuous duty, delivering strong airflow and static pressure to keep power components within their optimal operating range.

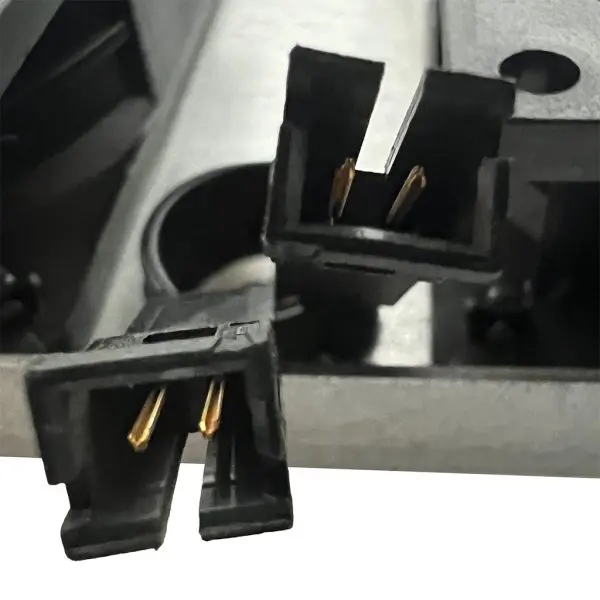

Ideal for UPS, inverter, and power-conversion assemblies that call out AD0924UB-A71GL or equivalent 92 mm 24 V DC fans. Two-wire lead configuration and standard square frame simplify drop-in field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine ADDA AD0924UB-A71GL fan — factory-fresh stock; covered by the full manufacturer or Gruber-backed replacement warranty. |
1-Year
|
| Tested | Operationally verified pull from a functioning system; rotation, noise level, and current draw checked; fan cleaned and leads inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| AD0924UB-A71GL | 92 × 92 × 25 mm (≈ 3.62 × 3.62 × 0.98 in) | 24 V DC, ≈ 0.21 A | ≈ 57 CFM @ ~3300 RPM (high-airflow 92 mm axial) | 2-wire lead (red/black), double ball bearing | UPS / inverter / industrial electronics cooling |
| Part # | Compatible Models | Notes |
| AD0924UB-A71GL | UPS, inverter, and industrial electronics that specify ADDA AD0924UB-A71GL or a 92 × 92 × 25 mm 24 V DC axial fan | Verify by exact P/N, frame size, 24 V rating, current, connector style, airflow, and mounting pattern before substituting into an OEM assembly. |
