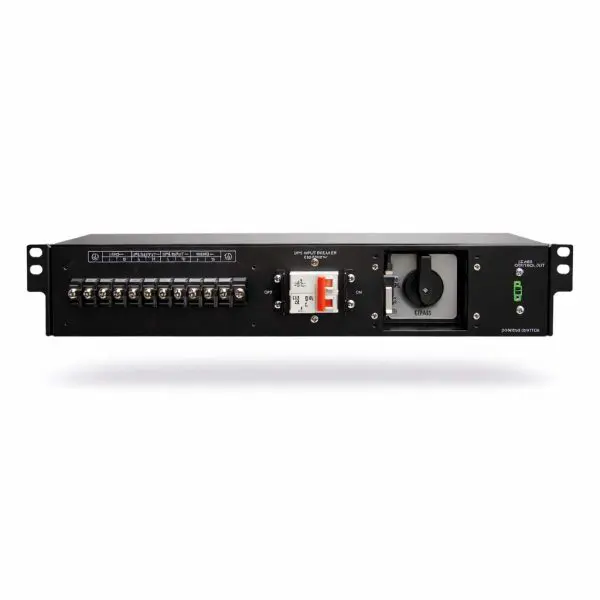

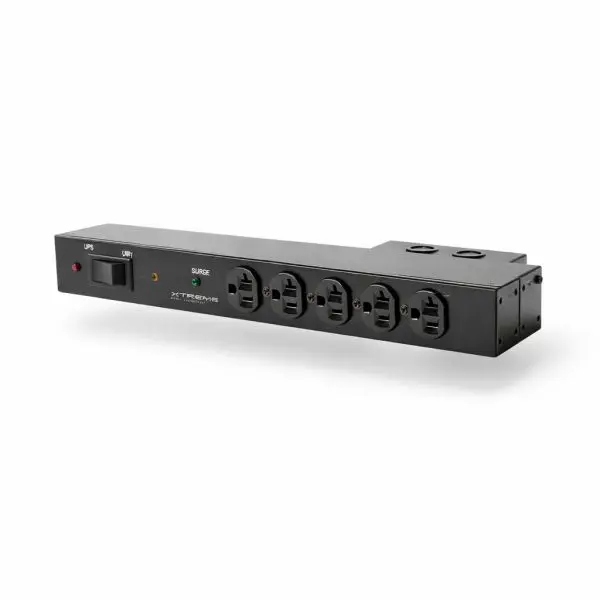

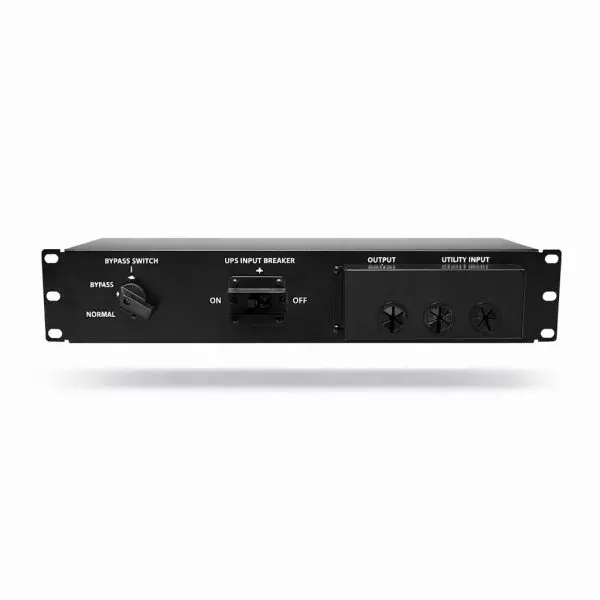

Xtreme – XBDM HW – Bypass Distribution Module – Tested

XBDM Maintenance Bypass Module — Manual UPS Bypass for Continuous Uptime

The XBDM Maintenance Bypass Module helps ensure continuous uptime for your critical electronics by allowing you to safely service or replace a UPS without interrupting power to the load. With a simple manual bypass switch, you can transfer the protected load from UPS power to utility (bypass) power, perform maintenance and then return the load back to protected UPS operation just as easily.

Designed for reliability and clean integration, the XBDM uses hardwired utility input and system output for secure installations in IT closets, racks, labs, AV systems, and industrial control environments. The bypass switch provides a fast transfer—typically within 8 ms—helping keep connected equipment running while you restore the UPS to full protection.

Key Features & Benefits

• Maintenance bypass for continuous uptime — Keep loads powered while servicing or replacing the UPS.
• Simple manual transfer — Switch from UPS to utility, then back to UPS when maintenance is complete.
• Hardwired input/output — Secure, permanent wiring for professional installations.
• Fast transfer — Bypass switch provides transfer typically within 8 ms.
• Multiple amperage options — Available in 15A, 20A, and 30A models to match your load requirements.
• Reduces downtime risk — Minimizes outage windows during UPS failures, battery changes, or planned replacements.

Product Snapshot

If you share your UPS model, input/output voltage, and load amperage, we can help you select the correct XBDM size and a safe, service-friendly bypass layout.
