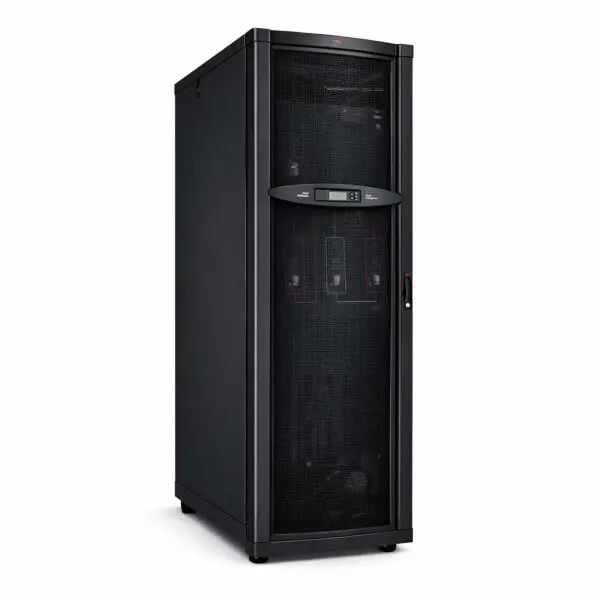

APC – Symmetra – PD80G6FK1-M – Bypass PDU Cabinet – Tested

fc9c55a5-01bc-46b4-b457-8d1df40d68e9 copy
EE
90 Day
fc9c55a5-01bc-46b4-b457-8d1df40d68e9 copy
EE
90 Day

Manufacturer

OEM Part Number

PD80G6FK1-M

GPS Part Number

PD80G6FK1-M

Categories

Tags

, , , ,

Price:

$4,458.63

Specifications
View Spec Sheet
Voltage WPC AH/kVA Length Width Height Weight
480/208/120 N/A 80 kVA 80.98 29.02 35.98 ~131.40 lb
Voltage 480/208/120
WPC N/A
Amp/H 80 kVA
Length 80.98
Width 29.02
Height 35.98
Weight ~131.40 lb
APC NetShelter — Bypass PDU Cabinet (PD80G6FK1-M)

This is the Tested Version.

SKU: PD80G6FK1-M  |

Type: Floor-standing Bypass + Distribution Cabinet for Symmetra PX 80 kW line-ups.
Electrical path: 480 V 3-phase input to 120/208 V 3-phase distribution with an integrated
Maintenance Bypass Panel (MBP) and cabinet-level metering.

  • Integrated MBP: Three-breaker maintenance bypass isolates the UPS for no-downtime service.
  • 80 kW frame: 80,000 VA capacity with 97% efficiency (cabinet level).
  • Input limits: Up to 135 A at 480 V; output supports 120/208 V 3-phase distribution.
  • Heavy-duty build: 80.98 × 29.02 × 35.98 in (H×W×D); approx. 1,631 lb (740 kg).
  • Service & docs: Ships with installation guide and user manual; UL/cUL listed.

PDU Power Cable UPS Power Modules

Technical Specifications — PD80G6FK1-M
Parameter Detail
Cabinet Type InfraStruxure™ PDU, Bypass + Distribution, floor-standing
Compatible UPS Symmetra PX 80 kW systems
Input 480 V 3-phase, 60 Hz ± 3 Hz; 1 hard-wired feed; input current limit 135 A
Output 120/208 V 3-phase distribution; max total current per phase 277.5 A
Load Capacity 80,000 VA (80 kW)
Efficiency Up to 97 %
Frequency 60 Hz
Dimensions (H × W × D) 80.98 × 29.02 × 35.98 in (205.7 × 73.7 × 91.4 cm)
Net Weight 1,631.4 lb (740 kg)
Mounting Front; no preference; not rack-mountable
Included Hardware Installation guide; user manual
Certifications UL Listed; cUL Listed
Environment Operating: 32–104 °F (0–40 °C), 0–95 % RH; altitude 0–3,333 ft
Storage: 5–113 °F (−15–45 °C), 0–95 % RH; altitude 0–30,000 ft
Warranty (mfr.) 1-year repair or replace

Notes & Replacement

PD80G6FK1-M (InfraStruxure PDU 80 kW 480→208 V with MBP) is discontinued (Jul 2, 2025) and has
no official direct replacement. For similar 80 kW builds, see the 208→208 V PD80F6FK1-M or 600→208 V
PD80L6FK1-M variants in the same family.

Product Options — Tested vs. Refurbished Cabinets
Option Description Warranty
Tested Input/output verification; MBP functional test; breaker/interlock checks; panelboard continuity; indicators/LCD confirmed. 90‑Day
Refurbished Cleaned and serviced cabinet; cosmetic touch-ups; torque & insulation tests; full MBP & distribution re-test with report. 1‑Year

  • Use case: Tie a Symmetra PX 80 kW UPS into building power with safe service bypass and branch distribution.
  • Serviceability: Three-breaker MBP enables no-downtime UPS maintenance and clear isolation.
  • Install tip: Confirm feeder size, panel schedules, and floor loading (cabinet ~1,631 lb).

Compatibility & Variants Matrix — 80 kW InfraStruxure PDU / Bypass Cabinets
Model Input → Output Notes
PD80G6FK1-M 480 V 3ϕ → 120/208 V 3ϕ Integrated MBP; 80.98×29.02×35.98 in; 1,631 lb.
PD80F6FK1-M 208 V 3ϕ → 208 V 3ϕ (transformer-less) MBP variant; same 80 kW frame.
PD80L6FK1-M 600 V 3ϕ → 120/208 V 3ϕ MBP variant for 600 V service.

Why buy from Gruber
  • Professionally tested — MBP, breakers, and distribution verified; torque sheets available.
  • Exact fit — Engineered for Symmetra PX 80 kW line-ups with flexible cable entry.
  • Documentation — Test results and labeled panel schedules provided on request.
