$29.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 220 – 600 VAC | 150 A | 1.0" | 1.0" | 1.5" | 0.06 lbs |
| Voltage | 220 – 600 VAC |
| Amp/H | 150 A |
| Length | 1.0" |
| Width | 1.0" |
| Height | 1.5" |
| Weight | 0.06 lbs |

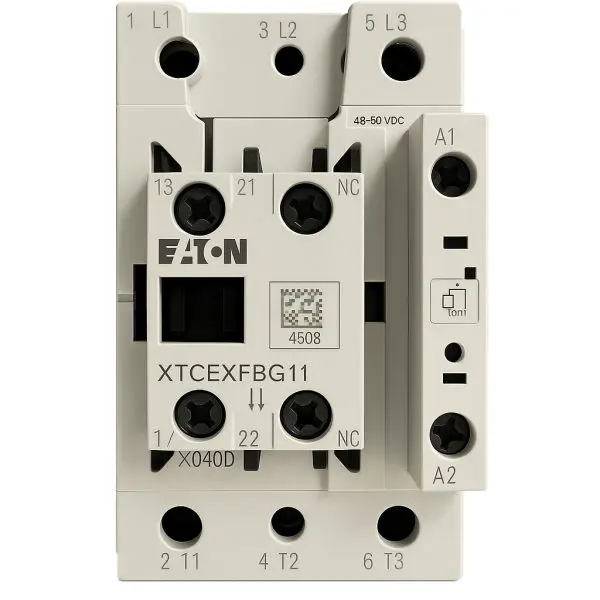

Front/top-mount auxiliary contact block for Eaton XT contactors and XTRE control relays. Simple screw-terminal wiring, mechanically linked 1NO+1NC contacts, and a compact footprint.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton (Cutler-Hammer) |
| Part number | XTCEXFBG11 (Auxiliary contact block, sequence B) |
| Contact arrangement | 2 poles: 1 NO + 1 NC, mechanically linked |
| Mounting | Front / top mount on XT contactors (frames D–G) and XTRE relays |
| Terminals | Screw terminals |

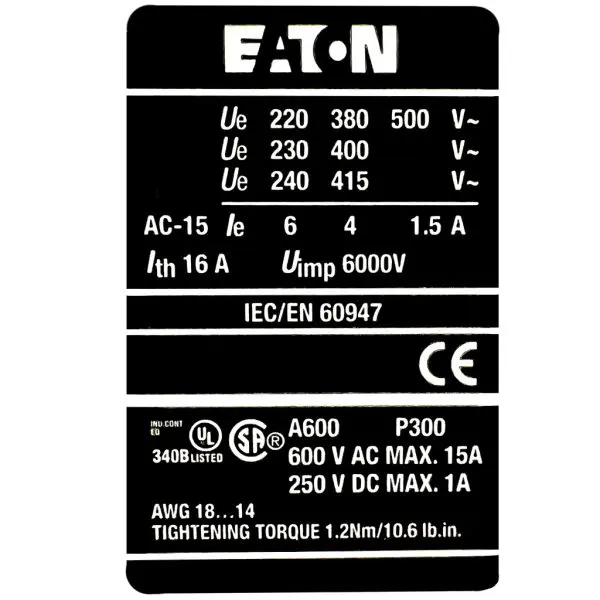

| Conventional thermal current (Ith) | 16 A |
| Rated voltage (aux contacts) | 600 V AC, 220 V DC |
| Dimensions (H × W × L) | 1.5 in × 1.0 in × 1.0 in |
| Weight | 0.06 lb |
| Compliance | UL Listed • CSA Certified • IEC/EN 60947 • CE • ATEX • CCC |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, terminals verified, function tested (1NO+1NC), ready to install | 90-Day |
