$330.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 277 VAC | 125 A | 3.0" | 3.0" | 5.0" | 1.8 lbs |
| Voltage | 277 VAC |
| Amp/H | 125 A |
| Length | 3.0" |
| Width | 3.0" |
| Height | 5.0" |
| Weight | 1.8 lbs |
Genuine Eaton/Cutler-Hammer Series C Gi-frame molded-case circuit breaker, type Gi125 (125-amp frame class). Cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Series / frame | Series C — Gi-frame (Gi125 = 125-A frame) |
| Poles | 3-pole |
| Continuous current (In) | 15–125 A (per trip rating; Gi125 frame) |
| Voltage rating | 480Y/277 VAC (3-phase) |

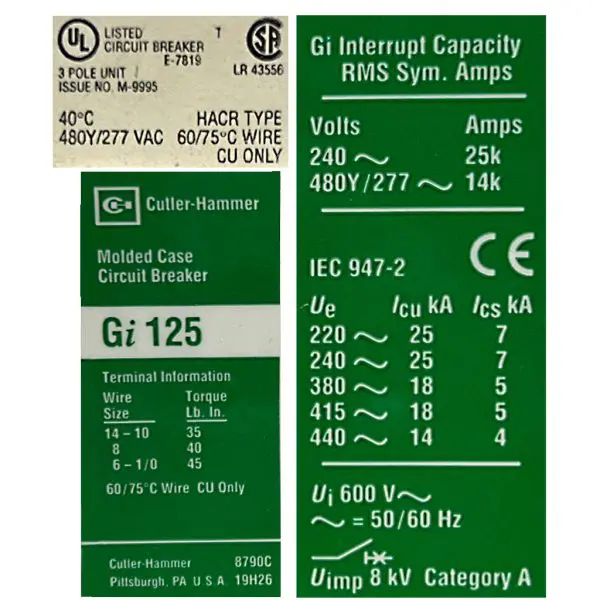

| Interrupting rating (AIC) | 25 kA @ 240 VAC • 14 kA @ 480Y/277 VAC (RMS Sym.) |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |

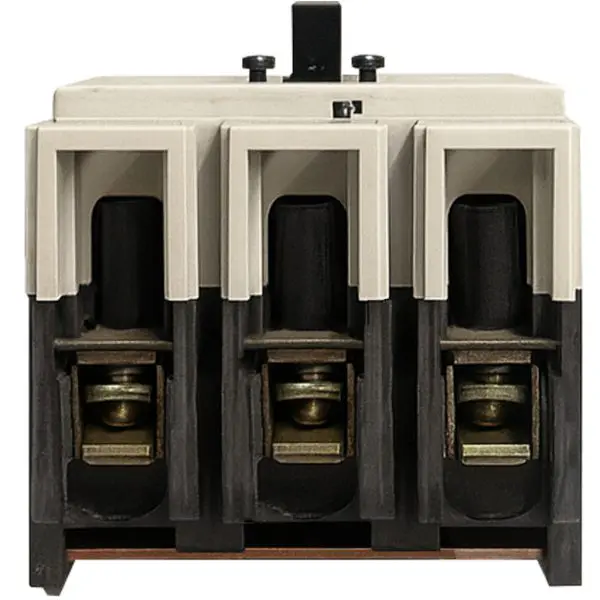

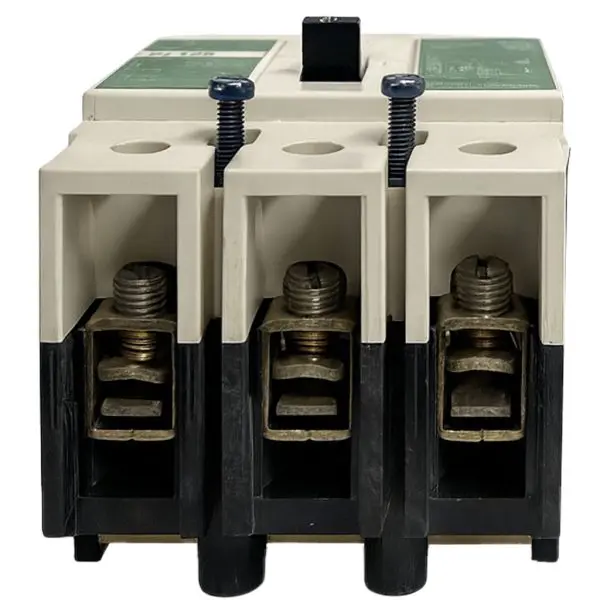

| Terminations | Line & load lugs (factory Gi configuration) |
| Mounting / accessories | Bolt-in panel mount; accepts Series C accessories (aux switch, bell alarm, shunt/UV trip) |
| Dimensions (H × W × L) | 5.0 in × 3.0 in × 3.0 in |
| Weight | ≈ 1.8 lb |
| Standards / approvals | UL 489 • CSA • IEC 60947-2 (per device marking) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; AIC verified; terminals checked; ready to install | 90-Day |
