$230.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 480 VAC | 225 A | 3.4" | 5.0" | 5.0" | 4.0 lbs |
| Voltage | 480 VAC |
| Amp/H | 225 A |
| Length | 3.4" |
| Width | 5.0" |
| Height | 5.0" |
| Weight | 4.0 lbs |

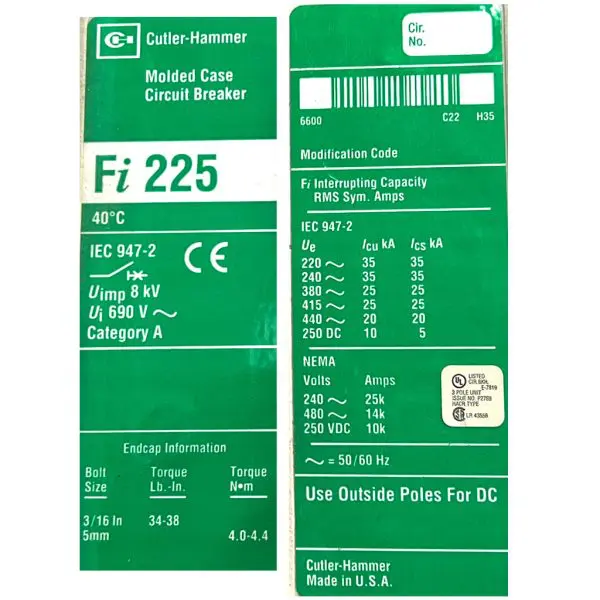

Genuine Eaton/Cutler-Hammer Series C universal molded-case breaker, type FI, catalog class FI225 (F-frame, 225 A), cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Series / frame | Series C — Universal MCCB, F-frame (FI type) |
| Catalog class / poles | FI225 • 3-pole |
| Amperage (In) | 225 A |
| Voltage rating | 480 VAC (UL); up to 690 VAC (IEC) |
| Interrupting rating | 14 kAIC @ 480 VAC (standard) |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |

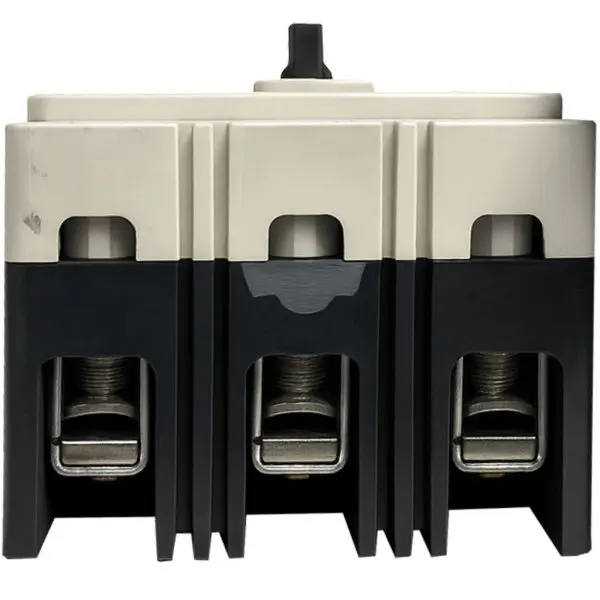

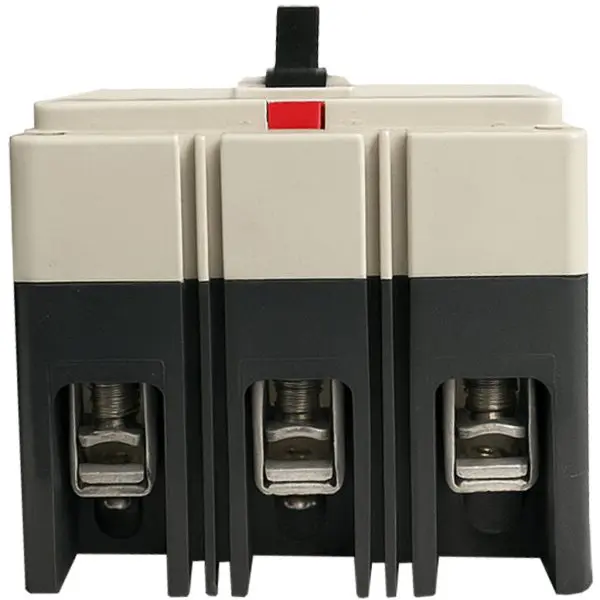

| Terminals | Metric-cap line & load terminals (factory FI configuration) |
| Mounting / accessories | Bolt-in panel mount; accepts standard F-frame accessories (aux, bell alarm, shunt/UV trip) |
| Dimensions (H × W × L) | 5.0 in × 5.0 in × 7.3 in |
| Weight | 4.0 lb |
| Standards / approvals | UL 489 • IEC 947 / IEC 60947-2 (per device marking) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; trip verified; terminals checked; ready to install | 90-Day |
