$226.92
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 480 VAC | N/A | 150 A | 3.4" | 4.1" | 6.0" | 4.5 lbs |
| Voltage | 480 VAC |
| WPC | N/A |
| Amp/H | 150 A |
| Length | 3.4" |
| Width | 4.1" |
| Height | 6.0" |
| Weight | 4.5 lbs |

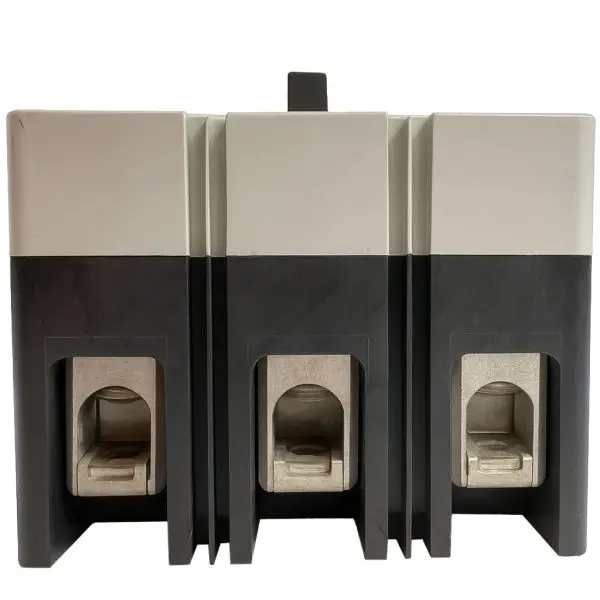

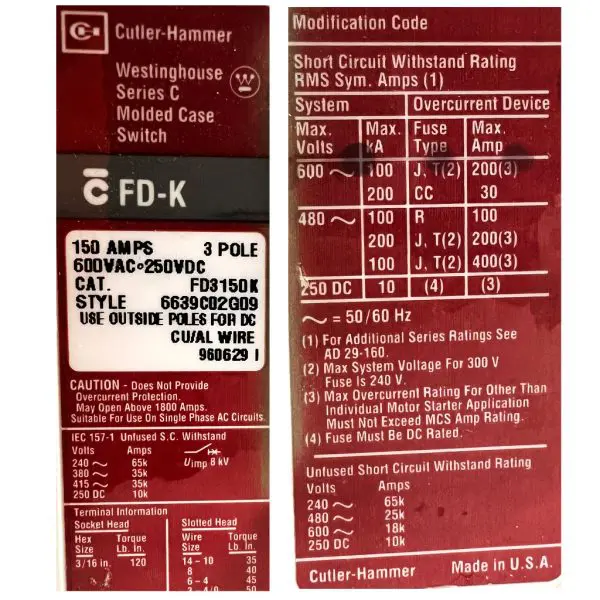

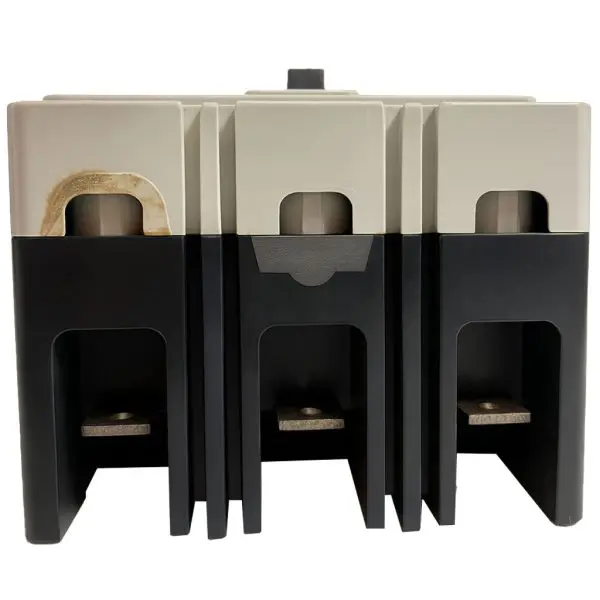

Genuine Eaton/Cutler-Hammer Series C F-Frame molded-case circuit breaker, type FD-K (factory “K” interrupting rating). Cleaned, inspected, and shop-tested for reliable service.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Series / frame | Series C — F-Frame (FD) |
| Type / poles | FD-K • 3-pole |
| Voltage rating | 600 VAC max • 250 VDC max |
| Interrupting ratings (“K”) | 65 kAIC @ 240 VAC • 35 kAIC @ 480 VAC |
| Continuous current (In) | Frame options to 225 A (e.g., FD3225K); common ratings include 100–225 A |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |
| Terminations | Line & load lugs standard (bolt-on/feed-through options by catalog build) |
| Mounting / accessories | Panel mount; accepts F-Frame accessories (aux switch, bell alarm, shunt trip, UVR) |
| Dimensions (H × W × L) | 6.0 in × 4.1 in × 3.4 in |
| Weight | ≈ 4.5 lb (typical 3-pole FD-K) |
| Standards / approvals | UL 489 Listed • CSA Certified • IEC 60947-2 (per marking) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; interrupting class verified (K); lugs checked; ready to install | 90-Day |
