$186.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 480 VAC | 125 A | 3.0" | 3.0" | 5.5" | 2.0 lbs |
| Voltage | 480 VAC |
| Amp/H | 125 A |
| Length | 3.0" |
| Width | 3.0" |
| Height | 5.5" |
| Weight | 2.0 lbs |
Genuine Eaton/Cutler-Hammer Series G EG-frame molded-case circuit breaker, type E125S (high-interrupting “S” rating), cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Frame / type | Series G — EG-frame, E125S (125 AF, high-interrupting) |
| Poles | 3-pole |
| Continuous current (In) | 125 A |
| Voltage rating | 600Y/347 VAC, 50/60 Hz |
| Interrupting ratings (UL 489) | 85 kAIC @ 240 VAC • 35 kAIC @ 480 VAC • 22 kAIC @ 600Y/347 VAC |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |

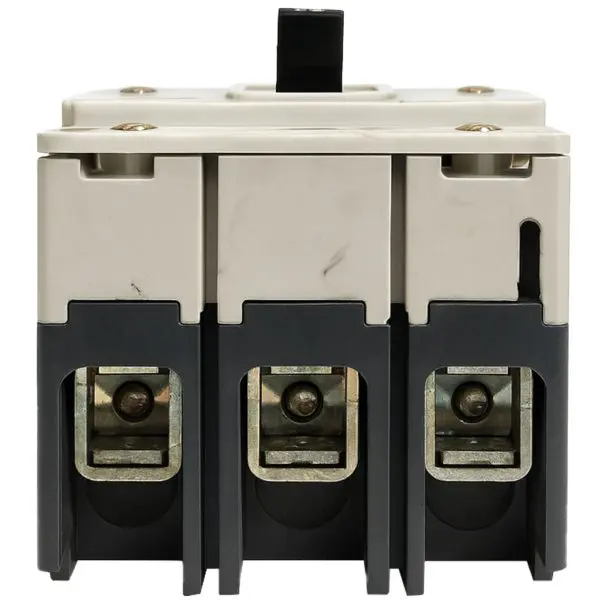

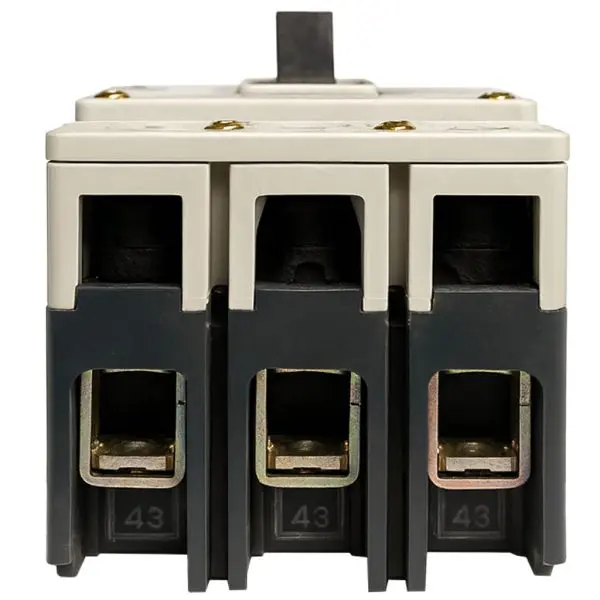

| Terminations | Line and load lugs (FFG style), Cu/Al rated |
| Mounting / accessories | Panel mount; accepts EG accessories (aux switch, bell alarm, shunt trip, UVR) |
| Dimensions (H × W × L) | 5.5 in × 3.0 in × 3.0 in |
| Weight | ≈ 2.0 lb |

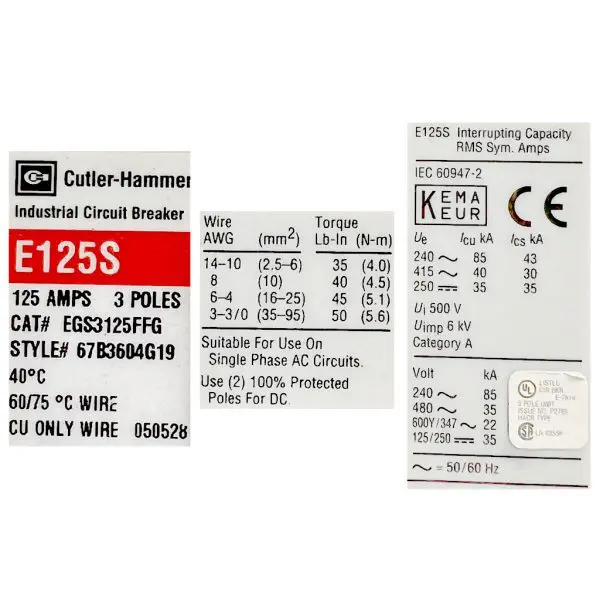

| Standards / approvals | UL 489 Listed • CSA Certified • IEC 60947-2 (CB/KEMA for E125S) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; trip verified; lugs checked; ready to install | 90-Day |
