$457.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 480 VAC | 80 A | 3.0" | 3.0" | 5.5" | 3.0 lbs |
| Voltage | 480 VAC |
| Amp/H | 80 A |
| Length | 3.0" |
| Width | 3.0" |
| Height | 5.5" |
| Weight | 3.0 lbs |

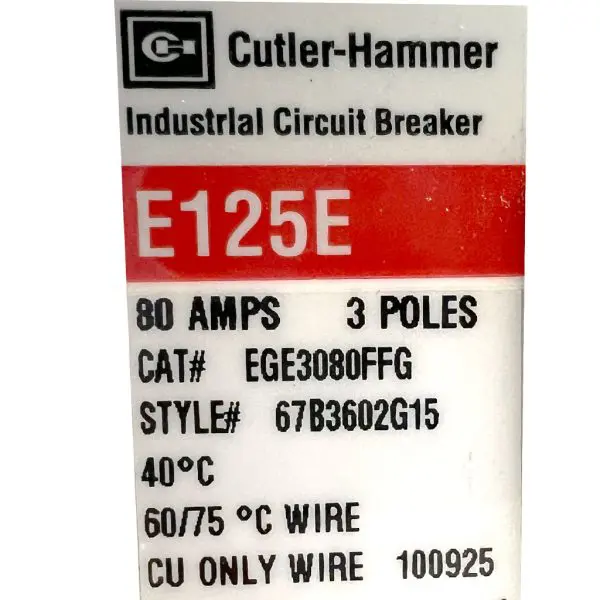

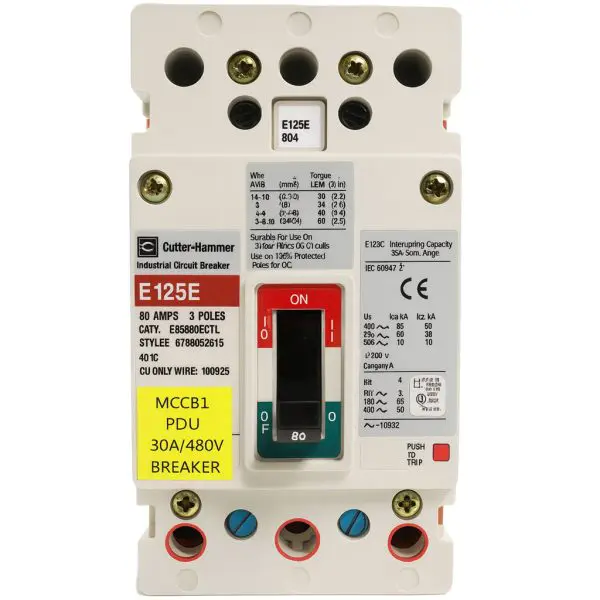

Genuine Eaton/Cutler-Hammer Series G EG-frame molded-case circuit breaker, type E125E (125 AF). Cleaned, inspected, and shop-tested for reliable service.
| Parameter | Detail |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Frame / type | Series G — EG-frame, E125E (125 AF thermal-magnetic) |
| Poles | 3-pole |
| Continuous current (In) | Up to 125 A (per trip setting/catalog build) |
| Voltage rating (AC) | 600Y/347 VAC, 50/60 Hz |

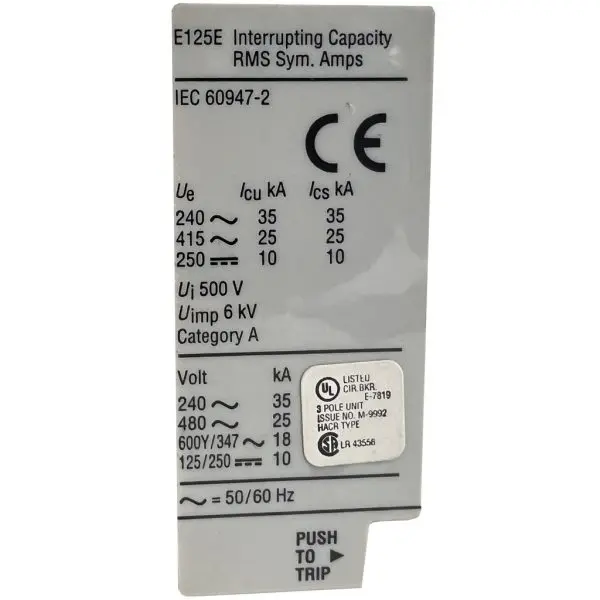

| Interrupting ratings (UL 489) | 35 kA @ 240 VAC • 25 kA @ 480 VAC • 18 kA @ 600Y/347 VAC |
| Trip unit | Fixed thermal / fixed magnetic (LI), non-interchangeable |

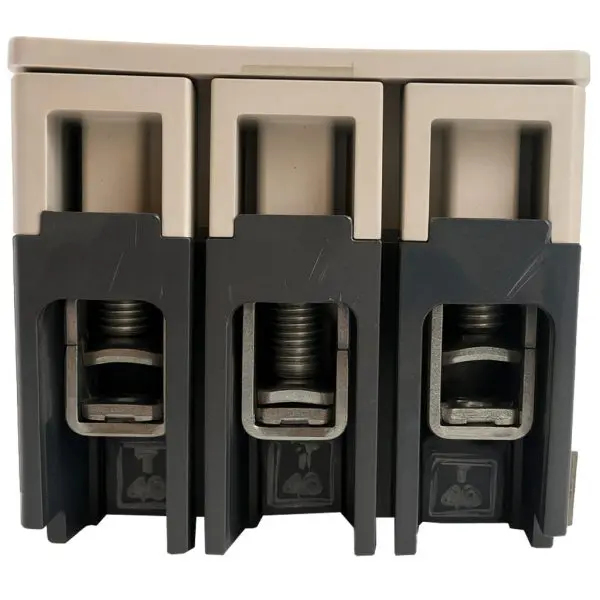

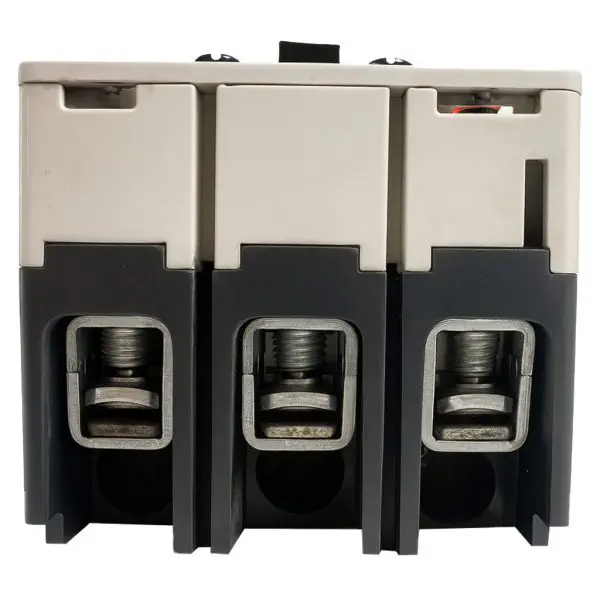

| Terminations | Line & load lugs (EG frame); bolt-on / feed-through options per catalog |
| Mounting / accessories | Panel mount; accepts EG accessories (aux switch, bell alarm, shunt trip, UVR) |
| Dimensions (H × W × L) | 5.50 in × 3.0 in × 3.0 in |
| Weight | ≈ 3.0 lb (typical EG complete breaker) |
| Standards / approvals | UL 489 Listed • CSA Certified • IEC 60947-2 (E125E certificate) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; trip verified; lugs checked; ready to install | 90-Day |
